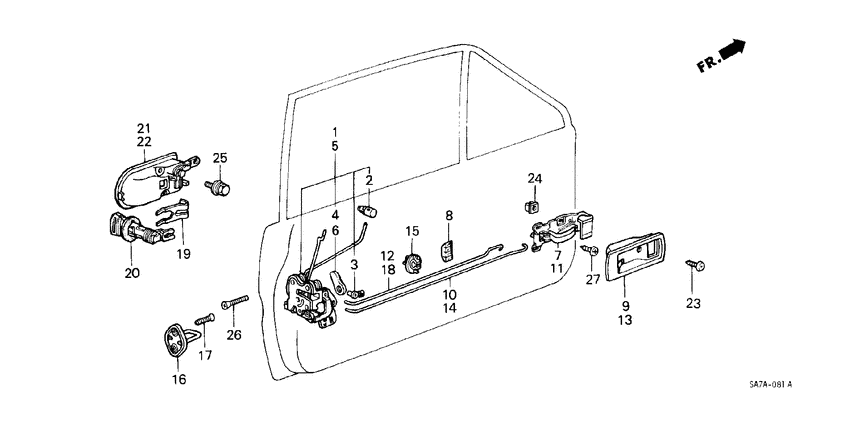

Door locks Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75410-SA7-731
Lock assy
|
75410-SA7-731 |
— | ||
|
2
|
2
75411-634-000 Joint |
75411-634-000 |
US $2.52 |
||
|
3
|
3
75412-SA0-000
Fastener
|
75412-SA0-000 |
— | ||
|
4
|
4
75415-SA0-300
Eliminator
|
75415-SA0-300 |
— | ||
|
5
|
5
75450-SA7-731
Lock assy
|
75450-SA7-731 |
— | ||
|
6
|
6
75455-SA0-300
Eliminator
|
75455-SA0-300 |
— | ||
|
7
|
7
75510-SA7-621
Handle assy
|
75510-SA7-621 |
— | ||
|
8
|
8
75513-SA7-920
Seal
|
75513-SA7-920 |
— | ||
|
9
|
9
75516-SA7-003ZA
Case
|
75516-SA7-003ZA |
— | ||
|
10
|
10
75517-SA7-003
Rod
|
75517-SA7-003 |
— | ||
|
11
|
11
75520-SA7-621
Handle assy
|
75520-SA7-621 |
— | ||
|
12
|
12
75525-SA7-003
Rod
|
75525-SA7-003 |
— | ||
|
13
|
13
75526-SA7-003ZA
Case
|
75526-SA7-003ZA |
— | ||
|
14
|
14
75537-SA7-003
Rod
|
75537-SA7-003 |
— | ||
|
15
|
15
75551-692-003
Holder
|
75551-692-003 |
— | ||
|
16
|
16
75555-692-003
Striker
|
75555-692-003 |
— | ||
|
17
|
17
75556-605-010 BoltLOCK STRIKER |
75556-605-010 |
from US $1.92 |
||
|
18
|
18
75565-SA7-003
Rod
|
75565-SA7-003 |
— | ||
|
19
|
19
75581-SA7-000
Spring
|
75581-SA7-000 |
— | ||
|
20
|
20
75585-SA0-732 CylinderDOOR |
75585-SA0-732 |
US $52.99 |
||
|
21
|
21
75610-SA7-013
Handle assy
|
75610-SA7-013 |
— | ||
|
22
|
22
75620-SA7-013
Handle assy
|
75620-SA7-013 |
— | ||
|
23
|
23
90115-SA0-000
Screw
|
90115-SA0-000 |
— | ||
|
24
|
24
90662-671-003 GrommetSCREW, 5MM (WHITE) |
90662-671-003 |
US $2.59 |
||
|
25
|
25
93493-060-100-8 Bolt-washer6X10 |
93493-060-100-8 |
US $0.59 |
||
|
26
|
26
93600-060-250-A ScrewFLAT, 6X25 |
93600-060-250-A |
US $0.52 |
||
|
27
|
27
93901-16110
Screw
|
93901-16110 |
— |
