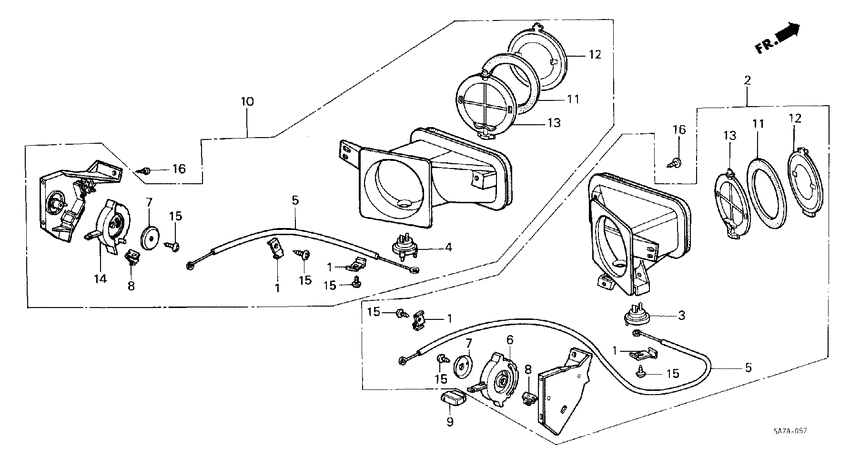

Fresh air vents (B,F,G,P,S,W,X) Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39383-SA5-000 ClampCONTROL CABLE |
39383-SA5-000 |
US $3.08 |
||
|
2
|
2
64420-SA7-730
Valve assy.
|
64420-SA7-730 |
— | ||
|
3
|
3
64424-SA7-000
Shaft a
|
64424-SA7-000 |
— | ||
|
4
|
4
64425-SA7-000
Shaft b
|
64425-SA7-000 |
— | ||
|
5
|
5
64427-SA7-730
Cable
|
64427-SA7-730 |
— | ||
|
6
|
6
64428-SA7-730
Lever
|
64428-SA7-730 |
— | ||
|
7
|
7
64429-SA7-730
Washer
|
64429-SA7-730 |
— | ||
|
8
|
8
64430-SA7-730
Spring
|
64430-SA7-730 |
— | ||
|
9
|
9
64431-SA7-730
Knob
|
64431-SA7-730 |
— | ||
|
10
|
10
64440-SA7-730
Valve assy.
|
64440-SA7-730 |
— | ||
|
11
|
11
64442-SA0-000
Seal
|
64442-SA0-000 |
— | ||
|
12
|
12
64443-SA0-910
Valve a
|
64443-SA0-910 |
— | ||
|
13
|
13
64444-SA0-911
Valve b
|
64444-SA0-911 |
— | ||
|
14
|
14
64448-SA7-730
Lever
|
64448-SA7-730 |
— | ||
|
15
|
15
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
15
|
15
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
16
|
16
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
16
|
16
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
