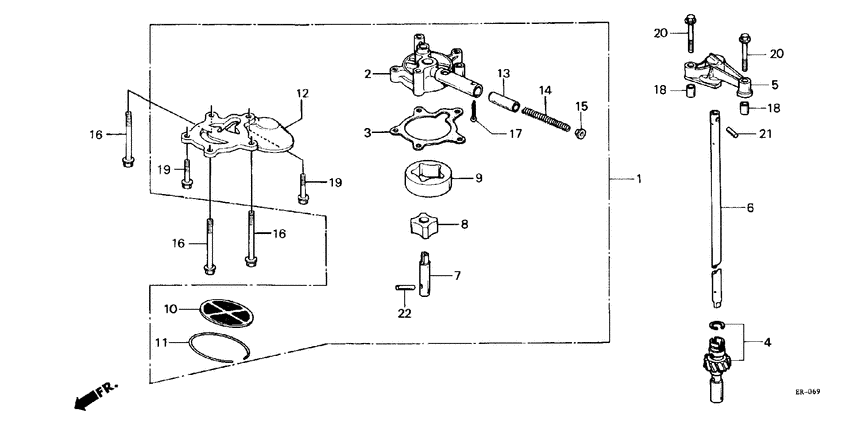

Oil pump Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
- master power
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-PA5-010 Pump compOIL |
15100-PA5-010 |
US $149.76 |
||
|
2
|
2
15101-PA5-000
Body
|
15101-PA5-000 |
— | ||
|
3
|
3
15105-PA5-000
Gasket
|
15105-PA5-000 |
— | ||
|
4
|
4
15109-PA5-000
Gear
|
15109-PA5-000 |
— | ||
|
5
|
5
15117-PA6-000
Holder
|
15117-PA6-000 |
— | ||
|
6
|
6
15120-PC0-000
Shaft
|
15120-PC0-000 |
— | ||
|
7
|
7
15125-PA5-000
Shaft
|
15125-PA5-000 |
— | ||
|
8
|
8
15131-634-000
Rotor
|
15131-634-000 |
— | ||
|
9
|
9
15132-634-000
Rotor
|
15132-634-000 |
— | ||
|
10
|
10
15150-PA5-003
Screen
|
15150-PA5-003 |
— | ||
|
11
|
11
15160-PA5-003 RingSNAP, 92MM |
15160-PA5-003 |
from US $3.08 |
||
|
12
|
12
15221-PA5-020
Body
|
15221-PA5-020 |
— | ||
|
13
|
13
15231-634-010 ValveOIL PRESSURE RELIEF |
15231-634-010 |
US $13.70 |
||
| replacement | |||||
|
13
|
13
15231-PE0-000 ValveRELIEF |
15231-PE0-000 |
from US $5.93 |
||
|
14
|
14
15232-PB2-000
Spring
|
15232-PB2-000 |
— | ||
|
15
|
15
15233-634-000
Seat
|
15233-634-000 |
— | ||
|
16
|
16
90002-PD1-000 BoltFLANGE, 6X63 |
90002-PD1-000 |
US $3.15 |
||
|
17
|
17
94201-30300 PinSPLIT, 3.0X30 |
94201-30300 |
from US $0.44 |
||
| replacement | |||||
|
17
|
17
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
18
|
18
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
19
|
19
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
19
|
19
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
20
|
20
95700-060-350-8 BoltFLANGE, 6X35 |
95700-060-350-8 |
from US $0.59 |
||
| replacement | |||||
|
20
|
20
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
21
|
21
96220-50150 Roller5X15 |
96220-50150 |
US $0.22 |
||
|
22
|
22
96220-50178 Roller5X17.8 |
96220-50178 |
from US $0.22 |
||
