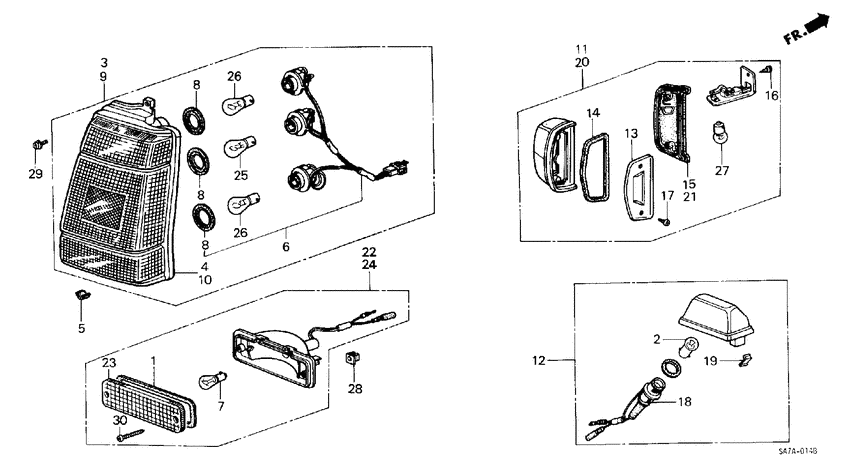

Taillight Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
34904-634-611 BULB (12V 5W) (ECE)(12V, 5W) ECE |
34904-634-611 |
from US $1.41 |
||
|
3
|
3
33500-SA7-741
Taillight assy.
|
33500-SA7-741 |
— | ||
|
4
|
4
33501-SA7-003
Lens comp
|
33501-SA7-003 |
— | ||
|
5
|
5
33502-SA2-000
Rubber
|
33502-SA2-000 |
— | ||
|
6
|
6
33502-SA7-003
Cord comp
|
33502-SA7-003 |
— | ||
|
8
|
8
33518-SA2-003 GasketSEAL |
33518-SA2-003 |
from US $2.24 |
||
|
9
|
9
33550-SA7-741
Taillight assy.
|
33550-SA7-741 |
— | ||
|
10
|
10
33551-SA7-003
Lens comp
|
33551-SA7-003 |
— | ||
|
12
|
12
34100-SA5-623
Light assy
|
34100-SA5-623 |
— | ||
|
18
|
18
34114-SA5-631
Socket comp.
|
34114-SA5-631 |
— | ||
|
19
|
19
34120-SA5-631
Spring
|
34120-SA5-631 |
— | ||
|
25
|
25
34911-634-611 Bulb12V 21/5W) (ECE) (STANLEY |
34911-634-611 |
from US $2.96 |
||
|
26
|
26
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
29
|
29
90115-SA7-003 Screw-washer6X16 |
90115-SA7-003 |
US $2.66 |
