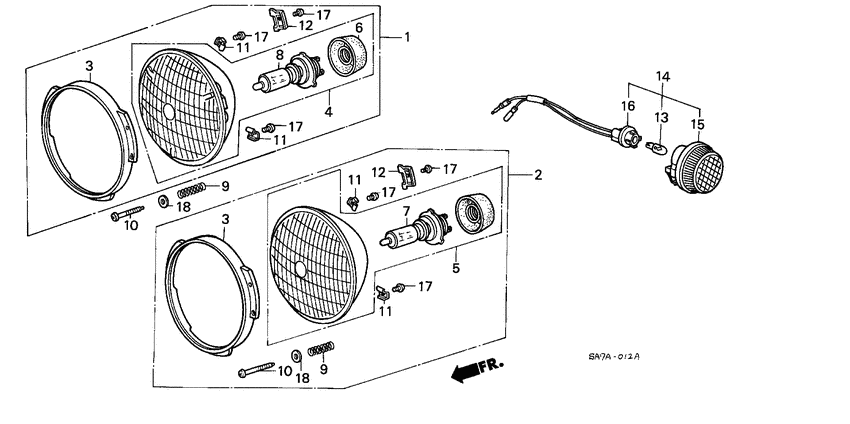

Headlight Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KG
- left-hand drive
- +
- rear fog light
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-SA7-731
Headlight assy
|
33100-SA7-731 |
— | ||
|
2
|
2
33100-SA7-771
Headlight assy
|
33100-SA7-771 |
— | ||
|
3
|
3
33102-SA7-731 RingRETAINING |
33102-SA7-731 |
US $39.55 |
||
|
4
|
4
33110-SA0-744
Headlight unit
|
33110-SA0-744 |
— | ||
|
5
|
5
33110-SA7-732
Headlight unit
|
33110-SA7-732 |
— | ||
|
7
|
7
33115-SA0-772
Bulb
|
33115-SA0-772 |
— | ||
|
9
|
9
33141-SA0-003
Spring
|
33141-SA0-003 |
— | ||
|
10
|
10
33143-692-003
Screw
|
33143-692-003 |
— | ||
|
11
|
11
33143-SA7-770
Holder a
|
33143-SA7-770 |
— | ||
|
12
|
12
33144-SA7-731
Holder b
|
33144-SA7-731 |
— | ||
|
13
|
13
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
14
|
14
34300-SB0-611
Light assy
|
34300-SB0-611 |
— | ||
|
15
|
15
34301-SB0-611
Lens
|
34301-SB0-611 |
— | ||
|
16
|
16
34302-SB0-611
Cord comp
|
34302-SB0-611 |
— | ||
|
17
|
17
90162-692-003
Screw
|
90162-692-003 |
— | ||
| replacement | |||||
|
17
|
17
90162-692-013
Screw
|
90162-692-013 |
— | ||
|
18
|
18
94101-05700 WasherPLAIN, 5MM |
94101-05700 |
from US $0.37 |
||
