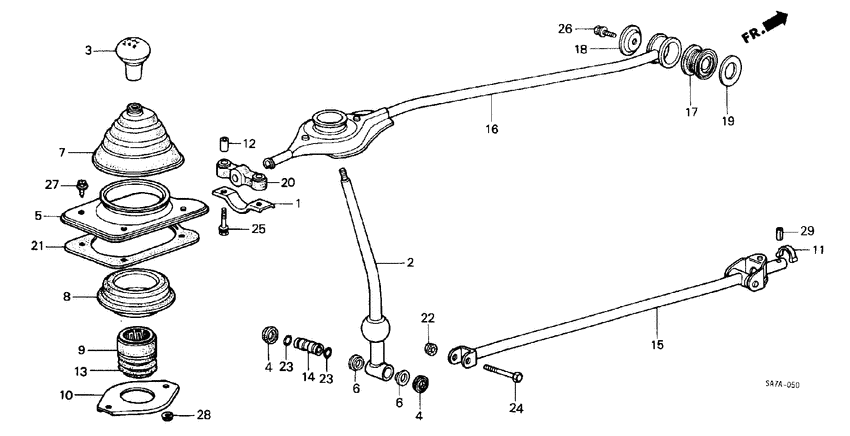

Shift lever (MT) Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KG
- left-hand drive
- +
- rear fog light
- +
- master power
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18262-659-000
Stopper
|
18262-659-000 |
— | ||
|
2
|
2
54101-SA7-020
Lever
|
54101-SA7-020 |
— | ||
|
3
|
3
54102-SA7-921
Knob comp.
|
54102-SA7-921 |
— | ||
|
4
|
4
54105-692-010
Washer
|
54105-692-010 |
— | ||
|
5
|
5
54106-SA7-000
Holder
|
54106-SA7-000 |
— | ||
|
6
|
6
54107-SA0-010 Bush, RR. JOINT |
54107-SA0-010 |
from US $5.44 |
||
|
7
|
7
54108-SA7-000
Boot
|
54108-SA7-000 |
— | ||
|
8
|
8
54109-SA7-000 Seal A, CHANGE LEVER DUST |
54109-SA7-000 |
from US $19.06 |
||
|
9
|
9
54110-SA7-000
Seat
|
54110-SA7-000 |
— | ||
|
10
|
10
54111-SA7-000
Holder
|
54111-SA7-000 |
— | ||
|
11
|
11
54113-611-000
Clip
|
54113-611-000 |
— | ||
|
12
|
12
54114-SA0-000
Collar
|
54114-SA0-000 |
— | ||
|
13
|
13
54115-SA7-000
Dust seal b
|
54115-SA7-000 |
— | ||
|
14
|
14
54117-692-000
Collar
|
54117-692-000 |
— | ||
|
15
|
15
54201-SA7-730
Rod comp
|
54201-SA7-730 |
— | ||
|
16
|
16
54301-SA7-730
Extension
|
54301-SA7-730 |
— | ||
|
17
|
17
54303-SA0-020
Rubber
|
54303-SA0-020 |
— | ||
| replacement | |||||
|
17
|
17
54303-SA5-000
Rubber
|
54303-SA5-000 |
— | ||
|
18
|
18
54304-689-000
Washer a
|
54304-689-000 |
— | ||
|
19
|
19
54305-SA0-000 Washer bEXTENSION END |
54305-SA0-000 |
US $6.84 |
||
|
20
|
20
54306-SA7-000 RubberEXTENSION MOUNTING |
54306-SA7-000 |
US $10.08 |
||
|
21
|
21
54318-SA0-000
Seal
|
54318-SA0-000 |
— | ||
|
22
|
22
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) |
90115-659-003 |
from US $1.05 |
||
|
23
|
23
91301-671-671
O-ring
|
91301-671-671 |
— | ||
| replacement | |||||
|
23
|
23
91303-HA0-004 O-ring, 11x1.9 (nok) |
91303-HA0-004 |
from US $1.28 |
||
|
24
|
24
92200-08050-0H BoltHEX., 8X50 |
92200-08050-0H |
from US $0.74 |
||
| replacement | |||||
|
24
|
24
92201-08050-0H BoltHEX., 8X50 |
92201-08050-0H |
from US $0.74 |
||
|
25
|
25
93492-080-400-8 Bolt-washer8X40 |
93492-080-400-8 |
US $0.74 |
||
|
26
|
26
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
26
|
26
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
27
|
27
93904-16210 ScrewTAPPING, 6X16 |
93904-16210 |
US $0.44 |
||
|
28
|
28
94070-06080 Nut-washer6MM |
94070-06080 |
from US $0.52 |
||
|
29
|
29
94305-80202
Pin
|
94305-80202 |
— | ||
