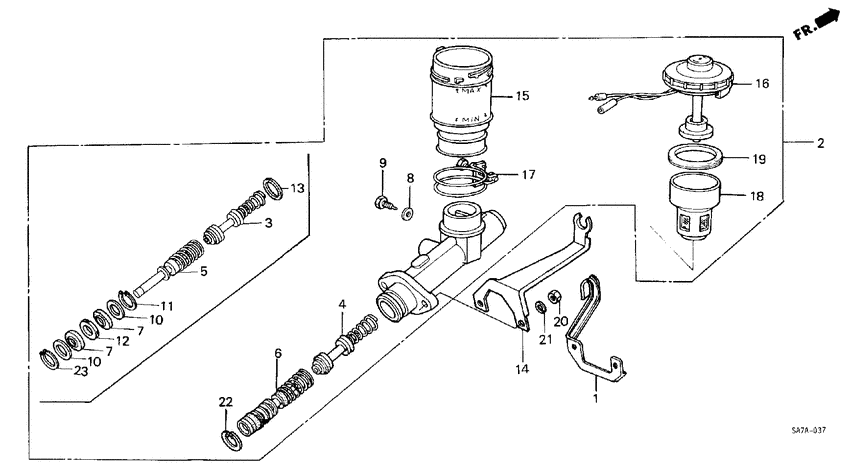

Brake master cylinder Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KS
- left-hand drive
- +
- rear fog light
- +
- master power
- +
- head light washer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
46100-SA7-601 Cylinder assy.MASTER 00000000 - 0S204386 |
46100-SA7-601 |
US $399.36 |
||
|
2
|
2
46100-SA7-632 Cylinder assy.MASTER 0S263528 - |
46100-SA7-632 |
US $368.64 |
||
|
2
|
2
46100-SA7-631 Cylinder assy.MASTER 00000000 - 0S263527 |
46100-SA7-631 |
US $399.36 |
||
|
2
|
2
46100-SA7-603 Cylinder assy.MASTER 0S204387 - 0S209491 |
46100-SA7-603 |
US $368.64 |
||
|
2
|
2
46100-SA7-953
Cylinder assy.
0S209492 - |
46100-SA7-953 |
— | ||
|
3
|
3
46120-SA5-003 Piston assy.PRIMARY |
46120-SA5-003 |
US $25.98 |
||
|
5
|
5
46122-SA7-951 Piston assy.SECONDARY 00000000 - 0S263527 |
46122-SA7-951 |
US $32.13 |
||
|
5
|
5
46122-SA7-952
Piston assy.
0S263528 - |
46122-SA7-952 |
— | ||
|
7
|
7
46126-SA5-013
Cup
|
46126-SA5-013 |
— | ||
|
8
|
8
46138-568-671
Packing
|
46138-568-671 |
— | ||
|
9
|
9
46139-632-000
Bolt
|
46139-632-000 |
— | ||
|
10
|
10
46181-SA5-013
Plate
|
46181-SA5-013 |
— | ||
|
11
|
11
46182-SA5-013
Circlip
|
46182-SA5-013 |
— | ||
|
12
|
12
46183-SA5-013
Bush
|
46183-SA5-013 |
— | ||
|
13
|
13
46185-SA5-003
Seal
|
46185-SA5-003 |
— | ||
|
15
|
15
46660-692-013
Tank
00000000 - 0S201059 |
46660-692-013 |
— | ||
|
15
|
15
46660-SC2-003
Tank
0S201060 - |
46660-SC2-003 |
— | ||
|
16
|
16
46662-692-603 Cap comp.RESERVE TANK 00000000 - 0S209491 |
46662-692-603 |
US $62.72 |
||
|
16
|
16
46662-692-023 Cap comp.RESERVE TANK 0S209492 - |
46662-692-023 |
US $56.83 |
||
|
17
|
17
46665-671-651 BandRESERVE TANK |
46665-671-651 |
US $6.30 |
||
|
18
|
18
46666-692-013 FilterMASTER CYLINDER |
46666-692-013 |
US $12.18 |
||
|
19
|
19
46669-692-003 SealRESERVE TANK |
46669-692-003 |
US $8.73 |
||
|
20
|
20
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
20
|
20
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
21
|
21
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
23
|
23
94520-26000 CirclipINTERNAL, 26MM |
94520-26000 |
from US $0.81 |
||
