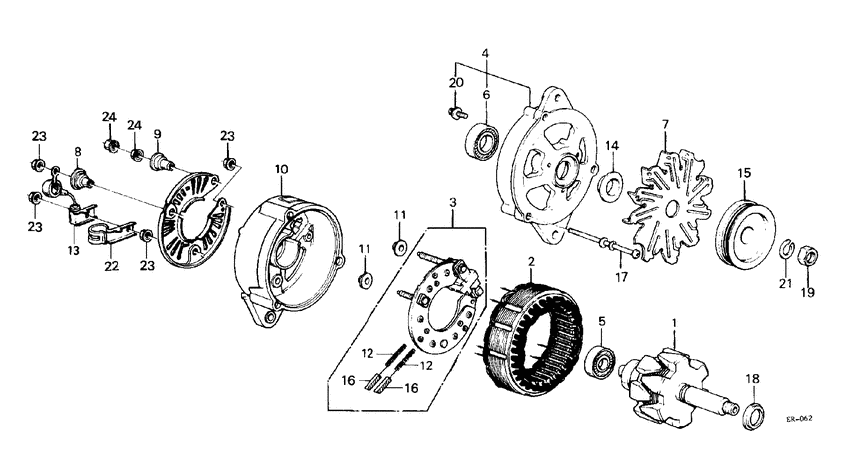

Alternator components Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KS
- left-hand drive
- +
- sunroof
- +
- rear fog light
- +
- master power
- +
- head light washer
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31101-PE8-601
Rotor assy.
|
31101-PE8-601 |
— | ||
|
2
|
2
31102-PE8-601
Stator assy.
|
31102-PE8-601 |
— | ||
|
3
|
3
31106-PA0-662
Sub rectifier assy.
|
31106-PA0-662 |
— | ||
|
4
|
4
31109-PC0-004
Frame assy
|
31109-PC0-004 |
— | ||
|
5
|
5
31111-671-004
Bearing
|
31111-671-004 |
— | ||
|
6
|
6
31114-671-004
Bearing
|
31114-671-004 |
— | ||
|
7
|
7
31115-PB2-004
Fan
|
31115-PB2-004 |
— | ||
|
8
|
8
31118-PA0-662
Bush
|
31118-PA0-662 |
— | ||
|
9
|
9
31119-PA0-662
Bush
|
31119-PA0-662 |
— | ||
|
10
|
10
31121-PA0-662 FrameRECTIFIER SIDE END |
31121-PA0-662 |
US $162.56 |
||
|
11
|
11
31125-PA0-662
Washer
|
31125-PA0-662 |
— | ||
|
12
|
12
31129-671-004
Spring
|
31129-671-004 |
— | ||
|
13
|
13
31130-PE8-601
Condenser
|
31130-PE8-601 |
— | ||
|
14
|
14
31134-671-004
Collar
|
31134-671-004 |
— | ||
|
15
|
15
31141-PE8-601
Pulley
|
31141-PE8-601 |
— | ||
|
16
|
16
31144-516-004
Brush
|
31144-516-004 |
— | ||
|
17
|
17
31145-634-671
Bolt
|
31145-634-671 |
— | ||
|
18
|
18
38741-590-004
Ring
|
38741-590-004 |
— | ||
|
19
|
19
38755-590-004
Nut
|
38755-590-004 |
— | ||
|
20
|
20
90093-PB1-004 Screw-washer5X15 |
90093-PB1-004 |
US $3.29 |
||
|
21
|
21
90094-PB1-004
Washer
|
90094-PB1-004 |
— | ||
|
22
|
22
91415-PA0-004 ClipCORD |
91415-PA0-004 |
US $4.62 |
||
|
23
|
23
94071-05080 Nut-washer5MM |
94071-05080 |
from US $0.47 |
||
|
24
|
24
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
