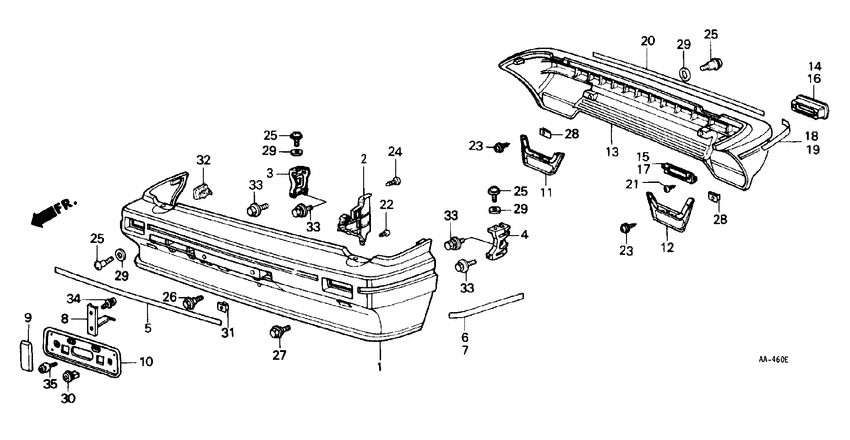

Bumper Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KS
- left-hand drive
- +
- sunroof
- +
- rear fog light
- +
- master power
- +
- head light washer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62510-SA7-780
Bumper
|
62510-SA7-780 |
— | ||
|
2
|
2
62512-SA7-010
Plate
|
62512-SA7-010 |
— | ||
|
3
|
3
62530-SA7-000ZZ
Stay
|
62530-SA7-000ZZ |
— | ||
|
4
|
4
62535-SA7-000ZZ
Stay
|
62535-SA7-000ZZ |
— | ||
|
5
|
5
62581-SA7-810
Stripe c
|
62581-SA7-810 |
— | ||
|
6
|
6
62582-SA7-810
Stripe
|
62582-SA7-810 |
— | ||
|
7
|
7
62583-SA7-810
Stripe
|
62583-SA7-810 |
— | ||
|
11
|
11
81810-SA7-730
Mudguard
|
81810-SA7-730 |
— | ||
|
12
|
12
81820-SA7-730
Mudguard
|
81820-SA7-730 |
— | ||
|
13
|
13
84110-SA7-730
Bumper
|
84110-SA7-730 |
— | ||
|
14
|
14
84113-SA7-730
Garnish
|
84113-SA7-730 |
— | ||
|
15
|
15
84114-SA7-730
Bracket
|
84114-SA7-730 |
— | ||
|
16
|
16
84123-SA7-730
Garnish
|
84123-SA7-730 |
— | ||
|
17
|
17
84124-SA7-730
Bracket
|
84124-SA7-730 |
— | ||
|
18
|
18
84181-SA7-730
Stripe
|
84181-SA7-730 |
— | ||
|
19
|
19
84182-SA7-730
Stripe
|
84182-SA7-730 |
— | ||
|
20
|
20
84183-SA7-730
Stripe c
|
84183-SA7-730 |
— | ||
|
21
|
21
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
21
|
21
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
22
|
22
90102-SA7-003 ScrewTAPPING, 5X16 |
90102-SA7-003 |
US $2.21 |
||
|
23
|
23
90116-SA7-000
Screw-washer
|
90116-SA7-000 |
— | ||
|
24
|
24
90130-693-000 ScrewTAPPING, 4X10 |
90130-693-000 |
from US $2.10 |
||
|
25
|
25
90140-SA7-013 BoltBUMPER |
90140-SA7-013 |
US $2.03 |
||
|
26
|
26
90141-SA7-000 BoltBUMPER |
90141-SA7-000 |
US $3.71 |
||
|
27
|
27
90149-SA7-000 BoltBUMPER |
90149-SA7-000 |
US $2.66 |
||
|
28
|
28
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
US $2.22 |
||
|
29
|
29
90540-SA7-000 WasherBUMPER |
90540-SA7-000 |
from US $1.47 |
||
|
31
|
31
90675-SA5-003 NutCLIP, 6MM |
90675-SA5-003 |
from US $1.92 |
||
|
32
|
32
90679-SA7-003
Clip
|
90679-SA7-003 |
— | ||
|
33
|
33
93493-080-200-8 Bolt-washer8X20 |
93493-080-200-8 |
from US $0.74 |
||
| replacement | |||||
|
33
|
33
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
||
