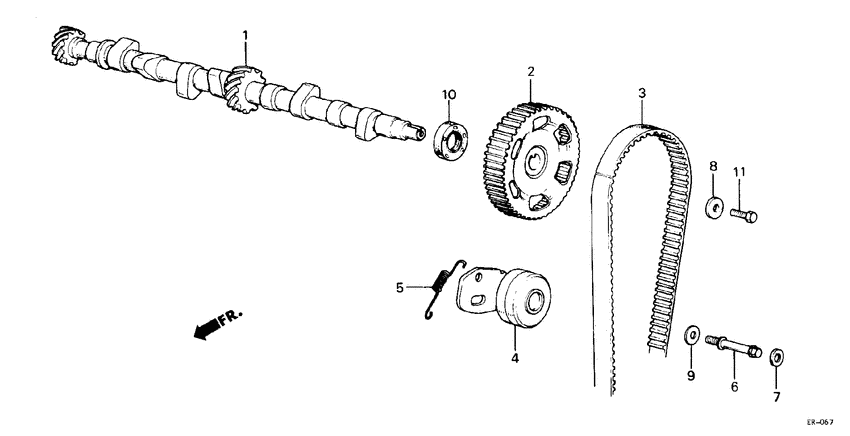

Camshaft/timing belt Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KS
- left-hand drive
- +
- sunroof
- +
- rear fog light
- +
- master power
- +
- head light washer
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-PE8-620
Camshaft
|
14110-PE8-620 |
— | ||
|
2
|
2
14210-PA0-000
Pulley
|
14210-PA0-000 |
— | ||
|
3
|
3
14400-PC0-004
Belt
|
14400-PC0-004 |
— | ||
|
4
|
4
14510-657-013
Adjuster comp
|
14510-657-013 |
— | ||
|
5
|
5
14516-673-000
Spring
|
14516-673-000 |
— | ||
|
6
|
6
90016-657-003
Bolt
|
90016-657-003 |
— | ||
|
7
|
7
90401-634-000 RubberTIMING BELT ADJUSTER |
90401-634-000 |
from US $4.07 |
||
|
8
|
8
90435-611-000 WasherSPECIAL, 28X8.5X4.0 |
90435-611-000 |
US $9.98 |
||
|
9
|
9
90437-634-000
Washer
|
90437-634-000 |
— | ||
|
10
|
10
91203-611-004 Oil seal27X43X9 (NOK) |
91203-611-004 |
from US $8.96 |
||
|
11
|
11
92000-08022-0H BoltHEX., 8X22 |
92000-08022-0H |
US $0.59 |
