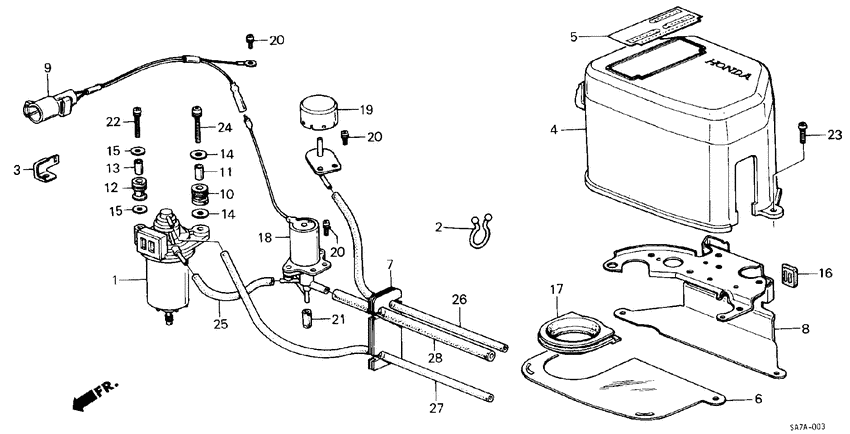

Control box ('84,'85) Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KS
- left-hand drive
- +
- sunroof
- +
- rear fog light
- +
- master power
- +
- head light washer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16300-PE8-621
Valve
|
16300-PE8-621 |
— | ||
|
2
|
2
17425-PE8-600
Clip
|
17425-PE8-600 |
— | ||
|
3
|
3
32745-PC7-730
Stay
|
32745-PC7-730 |
— | ||
|
4
|
4
36020-PA0-004
Cover
|
36020-PA0-004 |
— | ||
|
5
|
5
36022-PE8-621
Label
|
36022-PE8-621 |
— | ||
|
6
|
6
36023-PA0-004
Plate
|
36023-PA0-004 |
— | ||
|
7
|
7
36024-PE8-621
Holder
|
36024-PE8-621 |
— | ||
|
8
|
8
36030-PA6-911
Base
|
36030-PA6-911 |
— | ||
|
9
|
9
36041-665-731
Cord assy
|
36041-665-731 |
— | ||
|
10
|
10
36051-657-300
Rubber
|
36051-657-300 |
— | ||
|
11
|
11
36052-657-300 CollarCONTROL VALVE |
36052-657-300 |
US $6 |
||
|
12
|
12
36053-657-003
Rubber b
|
36053-657-003 |
— | ||
|
13
|
13
36054-657-003
Collar b
|
36054-657-003 |
— | ||
|
14
|
14
36055-657-003
Washer a
|
36055-657-003 |
— | ||
|
15
|
15
36056-657-003
Washer b
|
36056-657-003 |
— | ||
|
16
|
16
36058-PA0-004
Rubber
|
36058-PA0-004 |
— | ||
|
17
|
17
36067-PA0-004
Cap
|
36067-PA0-004 |
— | ||
|
18
|
18
36130-PA6-732
Valve assy.
|
36130-PA6-732 |
— | ||
|
19
|
19
36194-PD2-661 Filter assyAIR |
36194-PD2-661 |
US $12.93 |
||
|
20
|
20
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
21
|
21
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $1.86 |
||
|
22
|
22
93500-040-221-H ScrewPAN, 4X22 |
93500-040-221-H |
US $0.37 |
||
|
23
|
23
93500-050-121-H ScrewPAN, 5X12 |
93500-050-121-H |
from US $0.37 |
||
| replacement | |||||
|
23
|
23
93500-050-120-H ScrewPAN, 5X12 |
93500-050-120-H |
from US $0.37 |
||
|
24
|
24
93500-060-281-H ScrewPAN, 6X28 |
93500-060-281-H |
US $0.52 |
||
|
25
|
25
95005-350-551-0 Tube3.5X55(95005-35001-10M) |
95005-350-551-0 |
US $1.18 |
||
|
26
|
26
95005-353-701-H Tube3.5X370 (95005-35001-10M) |
95005-353-701-H |
US $4.14 |
||
|
27
|
27
95005-354-701-6 Tube3.5X470 (95005-35001-10M) |
95005-354-701-6 |
US $5.03 |
||
|
28
|
28
95005-553-801-1 Tube5.3X380 (95005-55001-10M) |
95005-553-801-1 |
US $8.29 |
||
