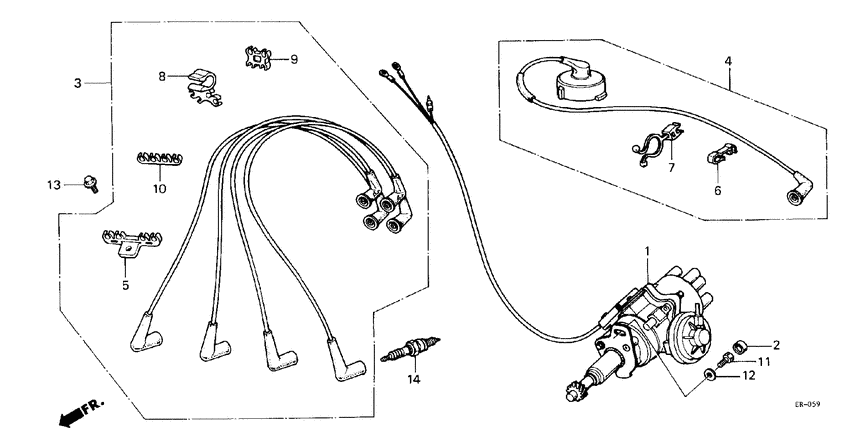

Engine electrical (1) Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KS
- left-hand drive
- +
- sunroof
- +
- rear fog light
- +
- master power
- +
- head light washer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-PE8-622
Distributor assy
|
30100-PE8-622 |
— | ||
|
2
|
2
30140-PA6-010
Cap
|
30140-PA6-010 |
— | ||
|
3
|
3
32722-PE8-731 Cord compHIGH TENSION |
32722-PE8-731 |
US $83.20 |
||
|
4
|
4
32723-PE8-802 Cord compIGNITION CENTER |
32723-PE8-802 |
US $30.72 |
||
|
5
|
5
32762-PC0-000
Clamp a
|
32762-PC0-000 |
— | ||
|
6
|
6
32765-PA6-000
Clamp
|
32765-PA6-000 |
— | ||
| replacement | |||||
|
6
|
6
32768-PJ7-000 ClampCENTER CORD |
32768-PJ7-000 |
from US $1.82 |
||
|
7
|
7
32766-PE8-621
Clamp
|
32766-PE8-621 |
— | ||
|
8
|
8
32767-PC0-000
Clamp b
|
32767-PC0-000 |
— | ||
|
9
|
9
32777-PA0-010
Clamp
1022250 - |
32777-PA0-010 |
— | ||
|
9
|
9
32777-PA0-000 ClampHIGH TENSION CORD 00000000 - 1022249 |
32777-PA0-000 |
US $4.62 |
||
|
10
|
10
32777-695-000 ClampHIGH TENSION CORD |
32777-695-000 |
US $3.73 |
||
|
11
|
11
90002-PC0-000
Bolt
|
90002-PC0-000 |
— | ||
|
12
|
12
90482-567-000 WasherSPECIAL, 6MM |
90482-567-000 |
US $1.62 |
||
| replacement | |||||
|
12
|
12
90581-831-650 Washer (18mm) |
90581-831-650 |
from US $1.55 |
||
|
13
|
13
93494-060-120-0 Bolt-washer6X12 |
93494-060-120-0 |
from US $0.52 |
||
| replacement | |||||
|
13
|
13
93404-0601200 Bolt-washer, 6x12 |
93404-0601200 |
from US $0.52 |
||
|
14
|
14
98079-56132 PlugSPARK (W20EXR-U11) |
98079-56132 |
US $6.66 |
||
|
14
|
14
98079-55132 PlugSPARK (W16EXR-U11) |
98079-55132 |
US $6.66 |
||
|
14
|
14
98079-55146 PlugSPARK (BPR5EY-11) |
98079-55146 |
from US $3.96 |
||
|
14
|
14
98079-56146 PlugSPARK (BPR6EY-11) |
98079-56146 |
US $6.66 |
||
