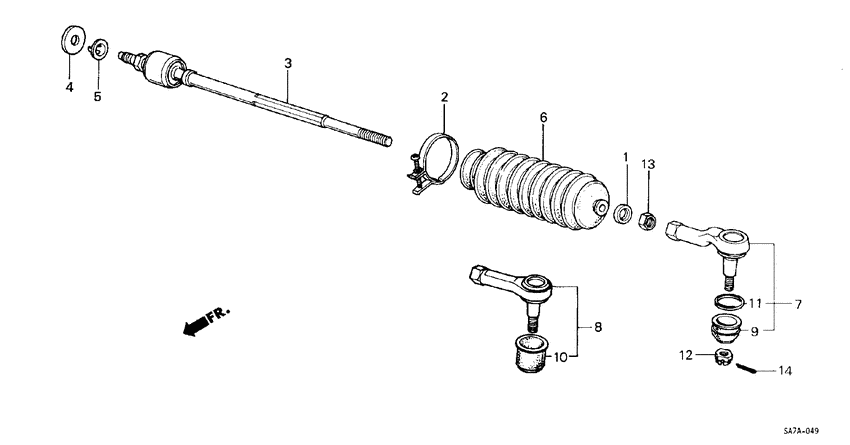

Tie rod Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KX
- left-hand drive
- +
- sunroof
- +
- rear fog light
- +
- master power
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53434-SA7-000
Band
|
53434-SA7-000 |
— | ||
|
2
|
2
53449-579-000 BandBELLOWS |
53449-579-000 |
US $5.18 |
||
|
3
|
3
53521-SA7-013
End comp
|
53521-SA7-013 |
— | ||
|
4
|
4
53535-SA0-000
Washer
|
53535-SA0-000 |
— | ||
|
5
|
5
53536-SB2-000 WasherTIE ROD LOCK |
53536-SB2-000 |
US $5.37 |
||
|
6
|
6
53537-SA5-000 Dust sealTIE ROD |
53537-SA5-000 |
US $9.94 |
||
|
7
|
7
53540-SB2-003
End comp
|
53540-SB2-003 |
— | ||
|
8
|
8
53540-679-004
End comp
|
53540-679-004 |
— | ||
| replacement | |||||
|
8
|
8
53540-SC2-004
End,r tie rod
|
53540-SC2-004 |
— | ||
|
9
|
9
53546-SA0-003 BootTIE ROD END (MUSASHI) |
53546-SA0-003 |
US $13.44 |
||
|
10
|
10
53546-679-004 SealBALL JOINT (TOKAI) |
53546-679-004 |
US $15.74 |
||
|
11
|
11
53548-SA0-003
Circlip
|
53548-SA0-003 |
— | ||
|
12
|
12
90320-601-000 NutCASTLE, 10MM |
90320-601-000 |
from US $3.15 |
||
|
13
|
13
94030-12280 NutHEX., 12MM |
94030-12280 |
from US $0.43 |
||
|
14
|
14
94201-20180 PinSPLIT, 2.0X18 |
94201-20180 |
from US $0.37 |
||
| replacements | |||||
|
14
|
14
94201-29220
Pin
|
94201-29220 |
— | ||
|
14
|
14
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
14
|
14
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
