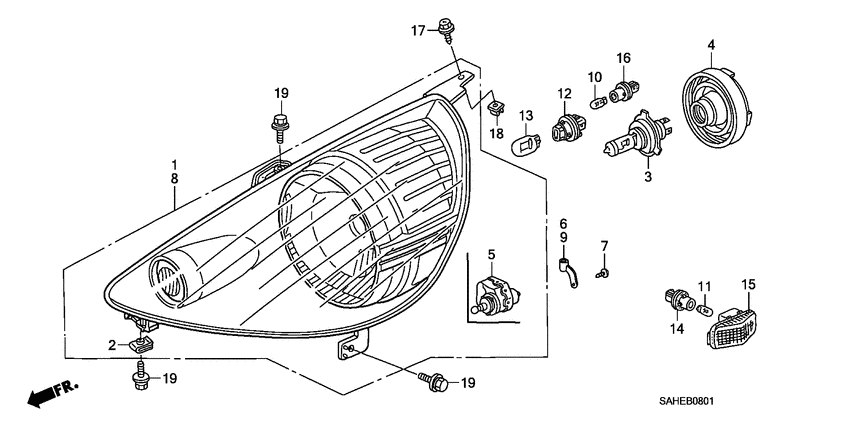

Headlight (2) Diagram Honda JAZZ
- Year
- 2008
- Model code
- JAZZ
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.5 L
- abs
- +
- area code
- KN
- right-hand drive
- +
- side srs
- +
- front fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33101-SAA-Q72
Headlight unit
|
33101-SAA-Q72 |
— | ||
|
2
|
2
33105-S5N-C01 NutSPECIAL |
33105-S5N-C01 |
US $3.58 |
||
|
3
|
3
33115-SM4-003 Bulb |
33115-SM4-003 |
US $25.60 |
||
| replacement | |||||
|
3
|
3
33115-SV4-G01 BulbHEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
33115-SV4-G01 |
US $27.20 |
||
|
3
|
3
33115-SV4-003
Bulb
|
33115-SV4-003 |
— | ||
|
3
|
3
33115-SV4-G01 BulbHEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
33115-SV4-G01 |
US $27.20 |
||
|
4
|
4
33126-S0A-003 CoverRUBBER |
33126-S0A-003 |
from US $10.51 |
||
|
8
|
8
33151-SAA-Q72
Headlight unit
|
33151-SAA-Q72 |
— | ||
|
10
|
10
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
12
|
12
33303-SAA-003 Socket compT20 S) (AMBER |
33303-SAA-003 |
from US $7.55 |
||
|
13
|
13
33303-S2R-003 BulbWEDGE (12V 21W) (STANLEY) (AMBER) |
33303-S2R-003 |
from US $2.96 |
||
|
16
|
16
34303-SX0-003
Socket comp.
|
34303-SX0-003 |
— | ||
|
17
|
17
90101-SAA-003
Tapping
|
90101-SAA-003 |
— | ||
|
18
|
18
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
19
|
19
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
