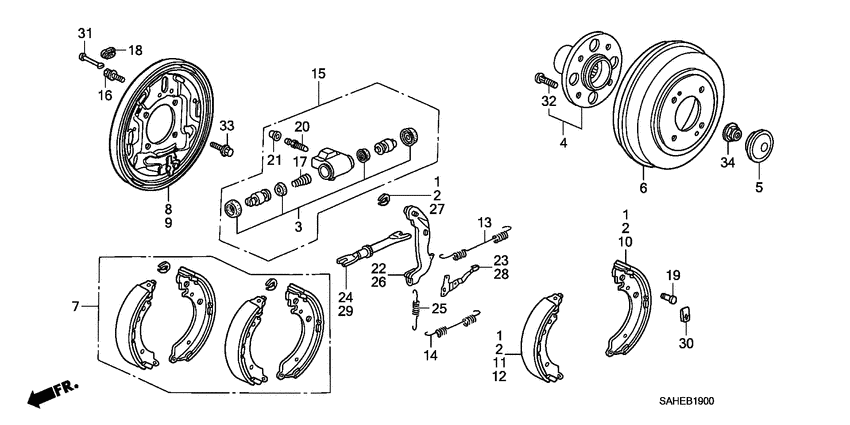

Rear brake (DRUM) Diagram Honda JAZZ
- Year
- 2008
- Model code
- JAZZ
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.5 L
- abs
- +
- area code
- KN
- right-hand drive
- +
- sunroof
- +
- side srs
- +
- front fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01431-SAA-000
Shoe kit
|
01431-SAA-000 |
— | ||
|
2
|
2
01432-SAA-000
Shoe kit
|
01432-SAA-000 |
— | ||
|
3
|
3
01433-SAA-010 Cylinder setRR. WHEEL |
01433-SAA-010 |
US $28.03 |
||
|
4
|
4
42200-SAA-G02 Bearing assyRR. HUB UNIT |
42200-SAA-G02 |
US $207.36 |
||
|
5
|
5
42326-SFA-000 CapHUB UNIT |
42326-SFA-000 |
from US $6.19 |
||
|
6
|
6
42610-SAA-000 DrumRR. BRAKE |
42610-SAA-000 |
US $113.92 |
||
|
8
|
8
43110-SAA-G01 Plate compR. RR. BRAKE BACKING |
43110-SAA-G01 |
US $47.62 |
||
|
9
|
9
43120-SAA-G01 Plate compL. RR. BRAKE BACKING |
43120-SAA-G01 |
US $47.62 |
||
|
10
|
10
43153-SAA-004 Shoe compRR. BRAKE |
43153-SAA-004 |
US $14.20 |
||
|
11
|
11
43154-SAA-004 Shoe compR. RR. BRAKE |
43154-SAA-004 |
US $14.20 |
||
|
12
|
12
43155-SAA-004 Shoe compL. RR. BRAKE |
43155-SAA-004 |
US $14.20 |
||
|
13
|
13
43171-S3Y-003
Spring a
|
43171-S3Y-003 |
— | ||
|
14
|
14
43172-S3Y-003
Spring b
|
43172-S3Y-003 |
— | ||
|
15
|
15
43300-SAA-004 Cylinder assy.RR. WHEEL |
43300-SAA-004 |
from US $72.11 |
||
|
16
|
16
43305-ST5-004 BoltFLANGE, 6MM |
43305-ST5-004 |
US $1.89 |
||
|
17
|
17
43323-ST5-004
Spring
|
43323-ST5-004 |
— | ||
|
18
|
18
43345-S3Y-003 PlugADJUSTER |
43345-S3Y-003 |
US $2.80 |
||
|
19
|
19
43346-S3Y-003 PlugINSPECTION |
43346-S3Y-003 |
US $2.24 |
||
|
20
|
20
43352-S50-003 ScrewBLEEDER |
43352-S50-003 |
US $4.20 |
||
|
21
|
21
43353-S50-003 CapBLEEDER SCREW |
43353-S50-003 |
US $2.10 |
||
|
22
|
22
43361-SAA-004 LeverR. PARKING BRAKE |
43361-SAA-004 |
US $12.60 |
||
|
23
|
23
43366-SAA-004 Lever compR. ADJUSTER |
43366-SAA-004 |
US $23.68 |
||
|
24
|
24
43367-S3Y-023 Adjuster assyR. |
43367-S3Y-023 |
US $12.93 |
||
|
25
|
25
43369-S3Y-003
Spring
|
43369-S3Y-003 |
— | ||
|
26
|
26
43371-SAA-004 LeverL. PARKING BRAKE |
43371-SAA-004 |
US $12.60 |
||
|
27
|
27
43375-S50-003 RingRETAINING |
43375-S50-003 |
US $1.82 |
||
|
28
|
28
43376-SAA-004 Lever compL. ADJUSTER |
43376-SAA-004 |
US $23.68 |
||
|
29
|
29
43377-S3Y-023 Adjuster assyL. |
43377-S3Y-023 |
US $12.93 |
||
|
30
|
30
45172-S3Y-003
Spring
|
45172-S3Y-003 |
— | ||
|
31
|
31
45175-S3Y-013 PinTENSION |
45175-S3Y-013 |
US $1.89 |
||
|
32
|
32
90113-SA0-006 BoltWHEEL (SAGA) |
90113-SA0-006 |
from US $2.59 |
||
| replacement | |||||
|
32
|
32
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
32
|
32
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
32
|
32
90113-SA0-025 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-025 |
from US $2.93 |
||
| replacement | |||||
|
32
|
32
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
33
|
33
90163-SAA-000 BoltRR. SPINDLE, 10X30 |
90163-SAA-000 |
US $2.31 |
||
|
34
|
34
90305-S50-003 NutSPINDLE |
90305-S50-003 |
US $6.19 |
||
