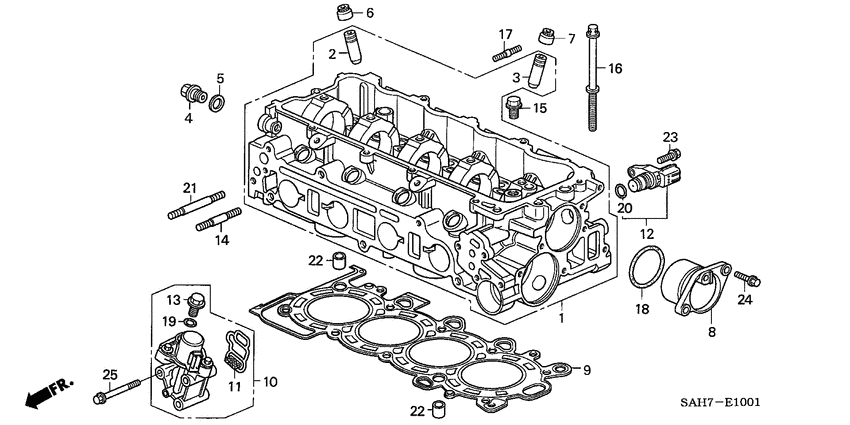

Cylinder head (VTEC) Diagram Honda JAZZ
- Year
- 2007
- Model code
- JAZZ
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.5 LS
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-PWC-040 Head compCYLINDER |
12200-PWC-040 |
US $1,098.24 |
||
|
2
|
2
12204-PJ7-305 GuideIN. VALVE (OS) |
12204-PJ7-305 |
from US $8.79 |
||
|
3
|
3
12205-PJ7-305 GuideEX. VALVE (OS) |
12205-PJ7-305 |
from US $10.42 |
||
|
4
|
4
12208-PWA-003 BoltSEALING, 16MM |
12208-PWA-003 |
US $2.17 |
||
|
5
|
5
12209-PWA-000
Washer
|
12209-PWA-000 |
— | ||
|
6
|
6
12210-PZ1-003 Seal aVALVE STEM(ARAI) |
12210-PZ1-003 |
from US $4.23 |
||
| replacement | |||||
|
6
|
6
12210-PZ1-004 SEAL A, VALVE STEM (NOK) |
12210-PZ1-004 |
from US $3.64 |
||
|
6
|
6
12210-PZ1-004 SEAL A, VALVE STEM (NOK) |
12210-PZ1-004 |
from US $3.64 |
||
|
7
|
7
12211-PZ1-003 Seal bVALVE STEM(ARAI) |
12211-PZ1-003 |
from US $3.13 |
||
|
7
|
7
12211-PZ1-004 Seal bVALVE STEM(NOK) |
12211-PZ1-004 |
from US $3.47 |
||
|
8
|
8
12230-PWA-000 CoverCAMSHAFT THRUST |
12230-PWA-000 |
US $23.94 |
||
|
9
|
9
12251-REB-Z01
Gasket comp
|
12251-REB-Z01 |
— | ||
|
10
|
10
15810-PWC-015
Valve assy.
|
15810-PWC-015 |
— | ||
|
11
|
11
15815-RAA-A02 Filter assy, SPOOL VALVE |
15815-RAA-A02 |
from US $6.66 |
||
|
12
|
12
37510-PNB-003 Sensor assyTDC |
37510-PNB-003 |
from US $67.86 |
||
|
13
|
13
90001-P70-000 BoltFLANGE, 10X10.5 |
90001-P70-000 |
US $2.07 |
||
|
14
|
14
90003-PWA-000 BoltSTUD, 8X45 |
90003-PWA-000 |
US $1.96 |
||
|
15
|
15
90004-P2J-000 BoltSEALING, 10MM |
90004-P2J-000 |
US $2.59 |
||
|
16
|
16
90008-PWA-003 Bolt-washer9X155 |
90008-PWA-003 |
from US $4.14 |
||
|
17
|
17
90026-PNA-003 BoltSTUD, 10X39.5 |
90026-PNA-003 |
US $2.04 |
||
|
18
|
18
91302-PX4-004 O-ring46.8X2.2 (NOK) |
91302-PX4-004 |
from US $3.26 |
||
|
19
|
19
91319-PAA-A01 O-ring13X1.5 |
91319-PAA-A01 |
from US $2.32 |
||
|
20
|
20
91333-PNA-003 O-ring15X1.9 |
91333-PNA-003 |
from US $1.39 |
||
|
21
|
21
92900-08065-0B BoltSTUD, 8X65 |
92900-08065-0B |
US $1.33 |
||
|
22
|
22
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
23
|
23
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
24
|
24
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
25
|
25
95701-060-550-8 BoltFLANGE, 6X55 |
95701-060-550-8 |
from US $0.81 |
||
