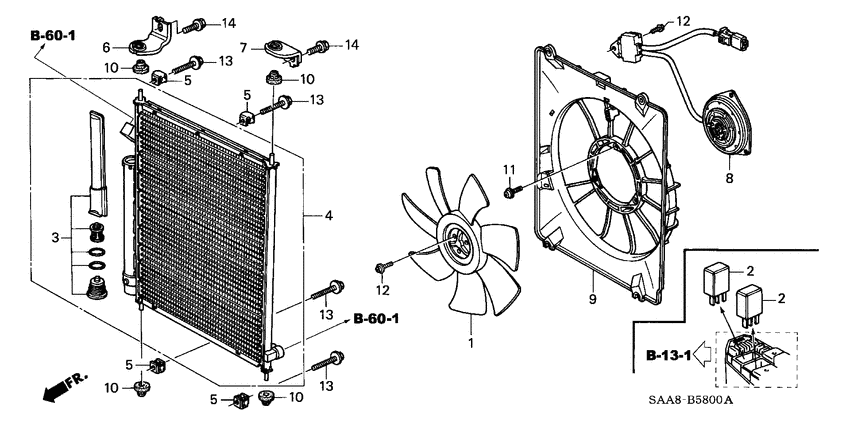

Air conditioner (CONDENSER; -'03) Diagram Honda JAZZ
- Year
- 2003
- Model code
- JAZZ
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI-S
- abs
- +
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38611-PNA-003 FanCOOLING(DENSO)(NATURAL) |
38611-PNA-003 |
US $33.92 |
||
|
3
|
3
80101-S7A-003
Filter sub assy.
|
80101-S7A-003 |
— | ||
|
4
|
4
80110-SAA-J01 Condenser assy |
80110-SAA-J01 |
US $485.12 |
||
|
5
|
5
80111-SAA-003 Bracket comp. |
80111-SAA-003 |
US $3.71 |
||
|
6
|
6
80115-SAA-000 BracketR. UPPER CONDENSER |
80115-SAA-000 |
US $4.34 |
||
|
7
|
7
80116-SAA-000 BracketL. UPPER CONDENSER |
80116-SAA-000 |
US $2.94 |
||
|
8
|
8
80151-SAA-003 MotorCOOLING FAN |
80151-SAA-003 |
US $226.56 |
||
|
9
|
9
80161-SAA-003
Shroud comp.
|
80161-SAA-003 |
— | ||
|
10
|
10
80175-SAA-003 MountCONDENSER |
80175-SAA-003 |
US $2.52 |
||
|
11
|
11
90041-P3G-003 Screw-washer5X11 |
90041-P3G-003 |
US $1.41 |
||
|
12
|
12
90041-P5A-003 Screw-washer4X11 |
90041-P5A-003 |
US $1.33 |
||
|
13
|
13
90109-SAA-003 Bolt-washer5X30 |
90109-SAA-003 |
US $1.75 |
||
|
14
|
14
95701-060-120-4 BoltFLANGE, 6X12 |
95701-060-120-4 |
US $0.52 |
