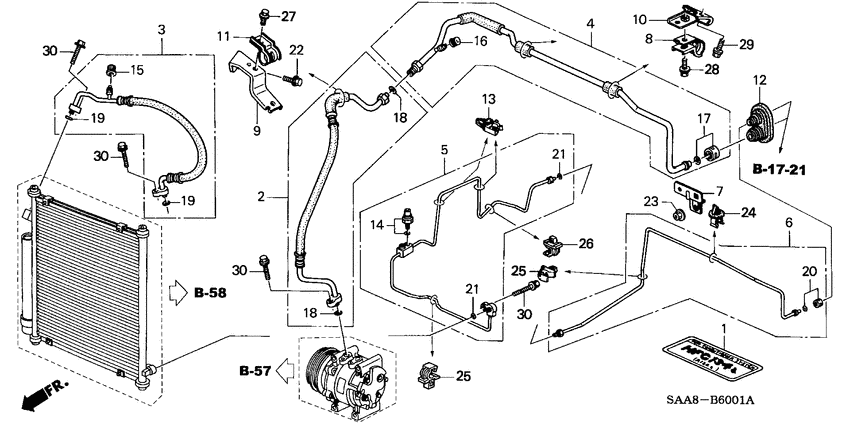

Air conditioner (HOSES/PIPES; -'03) Diagram Honda JAZZ
- Year
- 2003
- Model code
- JAZZ
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI-S
- abs
- +
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80050-SP0-000 LabelAIR CONDITIONER CAUTION (HFC134A) |
80050-SP0-000 |
from US $1.35 |
||
|
2
|
2
80311-SAA-003 Hose comp.SUCTION |
80311-SAA-003 |
US $120.32 |
||
|
3
|
3
80315-SAA-003
Hose comp.
|
80315-SAA-003 |
— | ||
|
4
|
4
80321-SAA-J01 Pipe compSUCTION |
80321-SAA-J01 |
US $77.44 |
||
|
5
|
5
80341-SAA-003 Pipe comp. aRECEIVER |
80341-SAA-003 |
US $100.64 |
||
|
6
|
6
80342-SAA-J01
Pipe comp. b
|
80342-SAA-J01 |
— | ||
|
7
|
7
80361-SAA-000 Bracket aAIR CONDITIONER PIPE |
80361-SAA-000 |
US $4.20 |
||
|
8
|
8
80361-S2G-000
Stay
|
80361-S2G-000 |
— | ||
|
9
|
9
80362-SAA-000 Bracket dAIR CONDITIONER PIPE |
80362-SAA-000 |
US $5.46 |
||
|
10
|
10
80363-SAA-J00 Bracket cAIR CONDITIONER PIPE |
80363-SAA-J00 |
US $2.52 |
||
|
11
|
11
80366-SAA-000 ClampSUCTION PIPE |
80366-SAA-000 |
US $3.22 |
||
|
12
|
12
80380-SAA-000 GrommetAIR CONDITIONER PIPE |
80380-SAA-000 |
US $5.04 |
||
|
13
|
13
80381-SV7-A01 ClampRECEIVER PIPE |
80381-SV7-A01 |
US $4.90 |
||
|
14
|
14
80440-S3N-003
Switch assy
|
80440-S3N-003 |
— | ||
|
15
|
15
80865-SN7-003 Cap hVALVE |
80865-SN7-003 |
US $1.47 |
||
|
16
|
16
80866-SAA-003 Cap lVALVE |
80866-SAA-003 |
US $2.87 |
||
|
17
|
17
80871-SAA-003 O-ring set5/8" |
80871-SAA-003 |
US $4.97 |
||
|
18
|
18
80871-SN7-003 O-ring5/8" |
80871-SN7-003 |
from US $2.66 |
||
|
19
|
19
80872-SN7-003 O-ring1/2" |
80872-SN7-003 |
from US $2.44 |
||
|
20
|
20
80873-SAA-003 O-ring set8MM |
80873-SAA-003 |
US $3.78 |
||
|
21
|
21
80873-SN7-003 O-ring8MM |
80873-SN7-003 |
from US $2.44 |
||
|
22
|
22
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
23
|
23
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
24
|
24
91505-SF4-003 ClampJACK BAR |
91505-SF4-003 |
US $2.31 |
||
|
25
|
25
91548-SR3-003 Clip8MM |
91548-SR3-003 |
US $1.26 |
||
|
26
|
26
91548-S3N-003 ClipRECEIVER PIPE |
91548-S3N-003 |
from US $1.64 |
||
|
27
|
27
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
||
|
28
|
28
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
29
|
29
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
30
|
30
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
