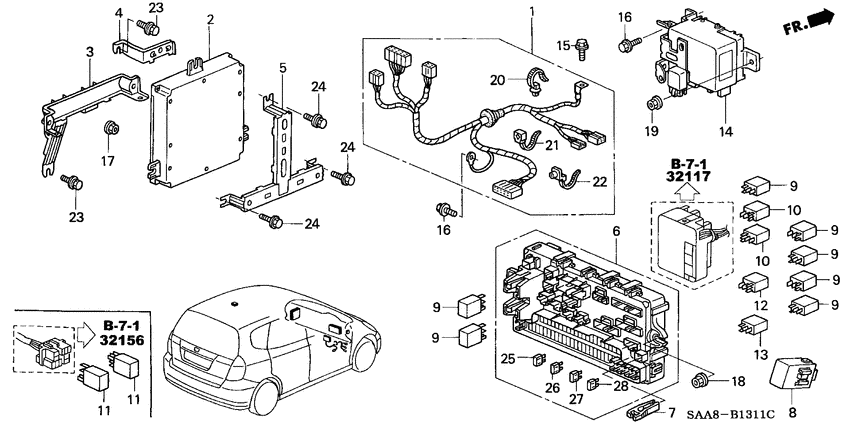

Control unit (CABIN; -'03) Diagram Honda JAZZ
- Year
- 2003
- Model code
- JAZZ
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI-S
- abs
- +
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32125-SAA-E00
Sub cord
|
32125-SAA-E00 |
— | ||
|
2
|
2
37820-PWC-Q02
Control module
|
37820-PWC-Q02 |
— | ||
|
3
|
3
37821-PWA-000 Bracket comp. aENGINE CONTROL MODULE |
37821-PWA-000 |
US $9.38 |
||
|
4
|
4
37822-PWA-000 Bracket comp. bENGINE CONTROL MODULE |
37822-PWA-000 |
US $6.44 |
||
|
5
|
5
37823-PWA-000 Bracket comp. cENGINE CONTROL MODULE |
37823-PWA-000 |
US $9.38 |
||
|
6
|
6
38200-SAA-003 Box assyFUSE |
38200-SAA-003 |
US $129.28 |
||
|
7
|
7
38235-S04-003 PullerMINI FUSE (SUMITOMO) |
38235-S04-003 |
from US $1.58 |
||
|
8
|
8
38385-S9A-U01
Receiver unit
|
38385-S9A-U01 |
— | ||
|
9
|
9
39794-S04-004
Relay assy
00000000 - 3S202784 |
39794-S04-004 |
— | ||
|
9
|
9
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) 3S202785 - |
39794-S04-014 |
US $23.49 |
||
|
9
|
9
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
10
|
10
39794-S10-003 Relay assyPOWER(5P) (MICRO ISO)(MITSUBA) |
39794-S10-003 |
US $19.45 |
||
|
12
|
12
39794-S5A-004 Relay assyFUEL PUMP(5P) (DENSO) |
39794-S5A-004 |
US $21.12 |
||
|
12
|
12
39794-S5A-003 Relay assyFUEL PUMP(5P) (MITSUBA) |
39794-S5A-003 |
US $16.77 |
||
|
13
|
13
39794-S5A-901 Relay assyENGINE CONTROL MODULE(4P)(MITSUBA) |
39794-S5A-901 |
US $16.77 |
||
|
13
|
13
39794-S5A-902 Relay assyENGINE CONTROL MODULE(4P)(DENSO) |
39794-S5A-902 |
US $21.12 |
||
|
14
|
14
39980-SAA-E01
Eps unit
3S204342 - |
39980-SAA-E01 |
— | ||
|
14
|
14
39980-SAA-J02
Eps unit
00000000 - 3S204341 |
39980-SAA-J02 |
— | ||
|
15
|
15
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
16
|
16
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
17
|
17
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
18
|
18
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
from US $1.47 |
||
|
19
|
19
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
20
|
20
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
21
|
21
91547-SH3-003 ClipBAND(NATURAL)(160MM) |
91547-SH3-003 |
US $2.52 |
||
|
22
|
22
91559-S47-003 ClipHARNESS BAND(NATURAL) (167MM) |
91559-S47-003 |
US $2.03 |
||
|
23
|
23
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
24
|
24
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
25
|
25
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
26
|
26
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
27
|
27
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
28
|
28
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
