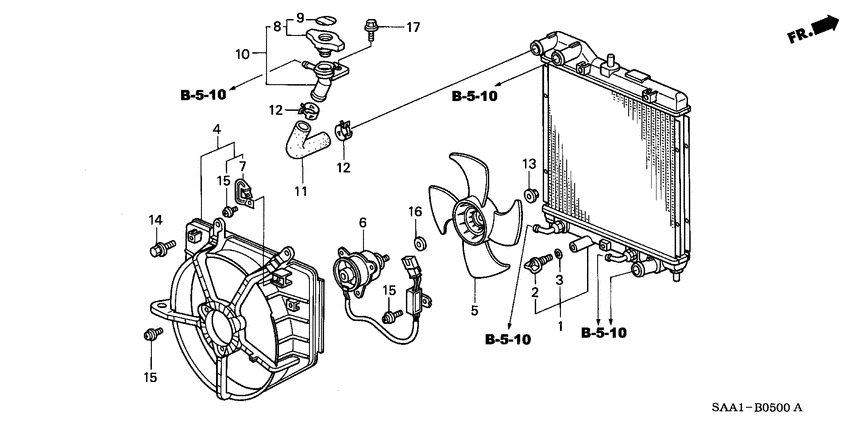

Radiator (TOYO RADIATOR; -'03) Diagram Honda JAZZ
- Year
- 2003
- Model code
- JAZZ
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI-S
- abs
- +
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-PWA-Q01
Radiator comp
|
19010-PWA-Q01 |
— | ||
|
2
|
2
19011-PH2-004 CockDRAIN (T.RAD) |
19011-PH2-004 |
from US $5.32 |
||
|
3
|
3
19012-PD2-004 PackingDRAIN (T.RAD) |
19012-PD2-004 |
from US $1.82 |
||
|
4
|
4
19015-PWA-G01
Shroud comp
|
19015-PWA-G01 |
— | ||
|
5
|
5
19020-P5M-004 Fan compCOOLING (MITSUBA) |
19020-P5M-004 |
US $38.53 |
||
|
6
|
6
19030-PWA-004 MotorCOOLING FAN (T.RAD) |
19030-PWA-004 |
US $259.76 |
||
|
7
|
7
19033-PLC-004 Clamp |
19033-PLC-004 |
US $4.90 |
||
|
8
|
8
19045-P08-014 Cap comp.RADIATOR (T.RAD) 00000000 - 3S200391 |
19045-P08-014 |
US $22.17 |
||
|
8
|
8
19045-PNC-004 Cap comp.RADIATOR (T.RAD) 3S200392 - |
19045-PNC-004 |
US $19.58 |
||
|
9
|
9
19046-PAA-A00 LabelRADIATOR CAP |
19046-PAA-A00 |
from US $1.55 |
||
|
10
|
10
19050-PWA-004 Filler assy.WATER |
19050-PWA-004 |
US $41.14 |
||
|
11
|
11
19508-PWA-000
Hose
|
19508-PWA-000 |
— | ||
|
12
|
12
19511-PFB-003 ClipWATER HOSE |
19511-PFB-003 |
US $2.59 |
||
|
13
|
13
90041-PG6-004 NutHEX., 5MM(MITSUBA) |
90041-PG6-004 |
from US $1.47 |
||
|
14
|
14
90042-PZ1-004 Bolt-washer6X20 |
90042-PZ1-004 |
US $1.63 |
||
|
15
|
15
90050-PK1-004 Screw-washer4X12(T.RAD) |
90050-PK1-004 |
US $1.95 |
||
|
16
|
16
90403-P5M-004
Spacer
|
90403-P5M-004 |
— | ||
|
17
|
17
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
