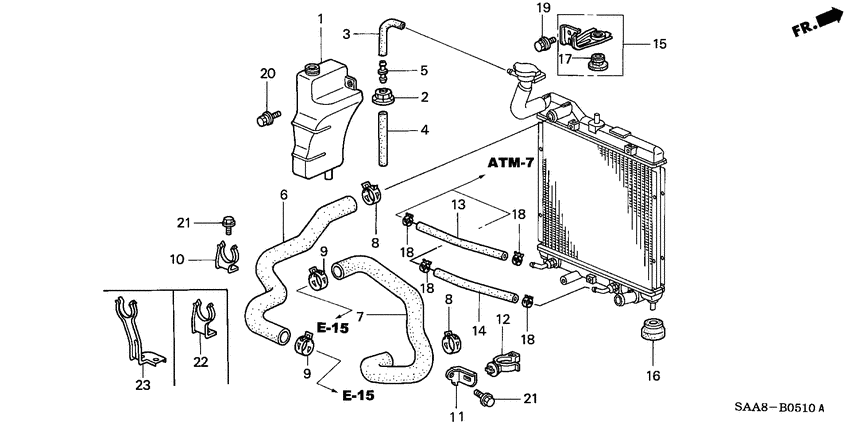

Radiator hose/reserve tan k (-'03) Diagram Honda JAZZ
- Year
- 2003
- Model code
- JAZZ
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI-S
- abs
- +
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19101-PWA-000
Tank comp.
|
19101-PWA-000 |
— | ||
|
2
|
2
19102-PM5-A00 CapRESERVE TANK |
19102-PM5-A00 |
from US $3.98 |
||
|
3
|
3
19104-PZ3-010
Tube a
|
19104-PZ3-010 |
— | ||
|
4
|
4
19104-P7A-000
Tube
|
19104-P7A-000 |
— | ||
|
5
|
5
19106-689-000 JointRESERVE TANK |
19106-689-000 |
from US $5.60 |
||
|
6
|
6
19501-PWC-000 HoseWATER UPPER |
19501-PWC-000 |
from US $17.79 |
||
|
7
|
7
19502-PWC-000 HoseWATER LOWER |
19502-PWC-000 |
US $17.79 |
||
|
8
|
8
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
9
|
9
19511-P08-004
Clip
|
19511-P08-004 |
— | ||
| replacement | |||||
|
9
|
9
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
11
|
11
19518-PWA-000
Stay
|
19518-PWA-000 |
— | ||
|
12
|
12
19519-PYD-005 ClampWATER HOSE |
19519-PYD-005 |
US $5.46 |
||
|
15
|
15
74171-SAA-000 BracketRADIATOR UPPER MOUNTING |
74171-SAA-000 |
US $8.82 |
||
|
16
|
16
74172-SR3-000 CushionRADIATOR MOUNTING LOWER |
74172-SR3-000 |
from US $5.31 |
||
|
17
|
17
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $3.26 |
||
|
19
|
19
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
20
|
20
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
23
|
23
19517-PWC-000 ClampWATER HOSE |
19517-PWC-000 |
US $4.34 |
||
