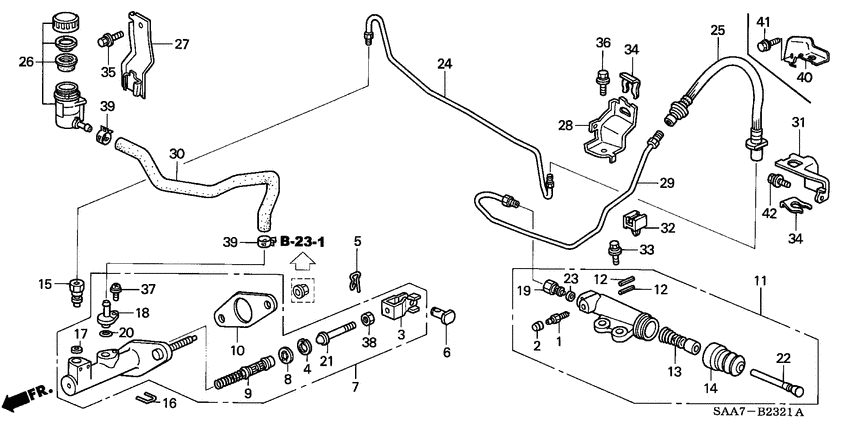

Clutch master cylinder (RH) Diagram Honda JAZZ
- Year
- 2002
- Model code
- JAZZ
- Sales region
- General
- Engine
- L12A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.2S-S
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.80 |
||
|
2
|
2
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.29 |
||
|
3
|
3
46151-SA5-003 Yoke comp.NISSIN |
46151-SA5-003 |
US $18.24 |
||
|
4
|
4
46182-500-013 Circlip |
46182-500-013 |
from US $2.07 |
||
|
5
|
5
46911-S70-003 Pin, LOCK(8MM) |
46911-S70-003 |
from US $2.22 |
||
|
6
|
6
46912-S84-A00 PinCLUTCH PEDAL |
46912-S84-A00 |
from US $3.03 |
||
|
7
|
7
46920-SAA-J01 Cylinder assy.CLUTCH MASTER |
46920-SAA-J01 |
US $117.76 |
||
|
8
|
8
46921-S5A-003 PlateSTOPPER |
46921-S5A-003 |
US $3.78 |
||
|
9
|
9
46926-S5A-003
Piston comp
|
46926-S5A-003 |
— | ||
|
10
|
10
46928-S5A-003 SealMASTER CYLINDER |
46928-S5A-003 |
US $2.52 |
||
|
11
|
11
46930-SAA-013 Cylinder assy.CLUTCH SLAVE |
46930-SAA-013 |
US $79.36 |
||
|
12
|
12
46931-S5A-003 PinSPRING |
46931-S5A-003 |
US $2.31 |
||
|
13
|
13
46932-S5A-003 PistonSLAVE CYLINDER |
46932-S5A-003 |
US $23.04 |
||
|
14
|
14
46937-SS1-003
Boot
|
46937-SS1-003 |
— | ||
|
15
|
15
46941-S5A-A01 ConnectorCLUTCH MASTER CYLINDER |
46941-S5A-A01 |
US $16.46 |
||
|
16
|
16
46942-S5A-003 PinSNAP |
46942-S5A-003 |
US $2.44 |
||
|
17
|
17
46943-S5A-003 SealRING |
46943-S5A-003 |
US $2.15 |
||
|
18
|
18
46944-S5A-J01 Connector |
46944-S5A-J01 |
US $6.16 |
||
|
19
|
19
46941-S5A-003 ConnectorCLUTCH MASTER CYLINDER |
46941-S5A-003 |
US $10.78 |
||
|
20
|
20
46945-S5A-003 O-ring |
46945-S5A-003 |
US $2.15 |
||
|
21
|
21
46947-S5A-003
Rod
|
46947-S5A-003 |
— | ||
|
22
|
22
46948-S5A-003 RodPUSH |
46948-S5A-003 |
US $7.56 |
||
|
23
|
23
46949-S5A-003 SealRING |
46949-S5A-003 |
US $2.15 |
||
|
24
|
24
46960-SAA-003
Pipe comp. a
|
46960-SAA-003 |
— | ||
|
25
|
25
46961-S5A-A01
Hose
|
46961-S5A-A01 |
— | ||
|
26
|
26
46965-S6A-013
Tank assy.
|
46965-S6A-013 |
— | ||
|
27
|
27
46966-SAA-003 BracketTANK |
46966-SAA-003 |
US $11.06 |
||
|
28
|
28
46968-SAA-003 Bracket bCLUTCH PIPE |
46968-SAA-003 |
US $5.32 |
||
|
29
|
29
46970-SAA-003 Pipe comp. bCLUTCH |
46970-SAA-003 |
US $10.22 |
||
|
30
|
30
46971-SAA-013
Tube
|
46971-SAA-013 |
— | ||
|
31
|
31
46995-SAA-003
Bracket a
|
46995-SAA-003 |
— | ||
|
32
|
32
50933-SZ3-003 ClipACCUMULATOR PIPE |
50933-SZ3-003 |
US $1.61 |
||
|
33
|
33
90106-S7A-E00 BoltFLANGE, 8X30 |
90106-S7A-E00 |
US $2.86 |
||
|
34
|
34
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $3.03 |
||
|
35
|
35
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
36
|
36
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
37
|
37
93893-040-121-8 Screw-washer4X12 |
93893-040-121-8 |
from US $0.52 |
||
| replacement | |||||
|
37
|
37
93893-040-120-8 Screw-washer4X12 |
93893-040-120-8 |
from US $0.58 |
||
|
38
|
38
94002-080-800-S NutHEX., 8MM |
94002-080-800-S |
from US $0.49 |
||
| replacement | |||||
|
38
|
38
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
39
|
39
95002-412-000-4 ClampTUBE (D12) |
95002-412-000-4 |
from US $0.74 |
||
|
42
|
42
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
