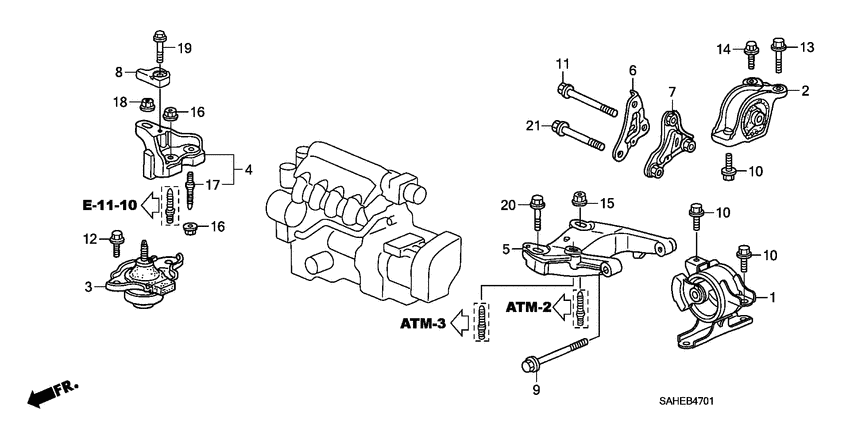

Engine mounts (CVT) Diagram Honda JAZZ
- Year
- 2008
- Model code
- JAZZ
- Sales region
- General
- Engine
- L13A
- transmission
- CVT
- Number of doors
- 5
- grade
- 1.4 SE
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50805-SAA-J82
Rubber assy.
|
50805-SAA-J82 |
— | ||
|
2
|
2
50810-SAA-982 Insulator RR. MOUNTING RUBBERRR. MOUNTING RUBBER |
50810-SAA-982 |
from US $79.26 |
||
|
3
|
3
50821-SAA-013 Rubber compENGINE SIDE MOUNTING |
50821-SAA-013 |
from US $87.83 |
||
|
4
|
4
50823-SAA-G01 BracketSIDE MOUNTING |
50823-SAA-G01 |
US $71.68 |
||
|
5
|
5
50825-SAA-980 BracketTRANSMISSION MOUNTING |
50825-SAA-980 |
US $80.64 |
||
|
6
|
6
50827-SAA-980 BracketR. RR. ENGINE MOUNTING |
50827-SAA-980 |
US $18.56 |
||
|
7
|
7
50828-SAA-980 BracketL. RR. ENGINE MOUNTING |
50828-SAA-980 |
US $21.38 |
||
|
8
|
8
50830-SAA-E01 MassSIDE MOUNTING |
50830-SAA-E01 |
US $21.38 |
||
|
9
|
9
90162-SAA-000 BoltFLANGE, 10X138 |
90162-SAA-000 |
US $4.20 |
||
|
10
|
10
90163-S5A-000 BoltFLANGE, 10X20 |
90163-S5A-000 |
from US $1.19 |
||
|
11
|
11
90164-SAA-000 BoltFLANGE, 12X100 |
90164-SAA-000 |
US $3.36 |
||
|
12
|
12
90166-SAA-000 Bolt-washer10X25 |
90166-SAA-000 |
US $1.75 |
||
|
13
|
13
90187-SR3-000 BoltFLANGE, 10X53 |
90187-SR3-000 |
US $2.45 |
||
|
14
|
14
90188-SL4-010 BoltFLANGE, 10X35 |
90188-SL4-010 |
US $2.24 |
||
|
15
|
15
90371-SAA-010 NutFLANGE, 12MM |
90371-SAA-010 |
US $1.75 |
||
|
16
|
16
90371-S50-000 NutFLANGE, 10MM |
90371-S50-000 |
US $2.10 |
||
|
17
|
17
90380-SAA-000 BoltSTUD, 10X70 |
90380-SAA-000 |
US $3.36 |
||
|
18
|
18
94050-12080 NutFLANGE, 12MM |
94050-12080 |
from US $0.81 |
||
|
19
|
19
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.78 |
||
|
20
|
20
95701-120-500-8 BoltFLANGE, 12X50 |
95701-120-500-8 |
from US $1.18 |
||
|
21
|
21
95701-120-900-8 BoltFLANGE, 12X90 |
95701-120-900-8 |
US $1.63 |
