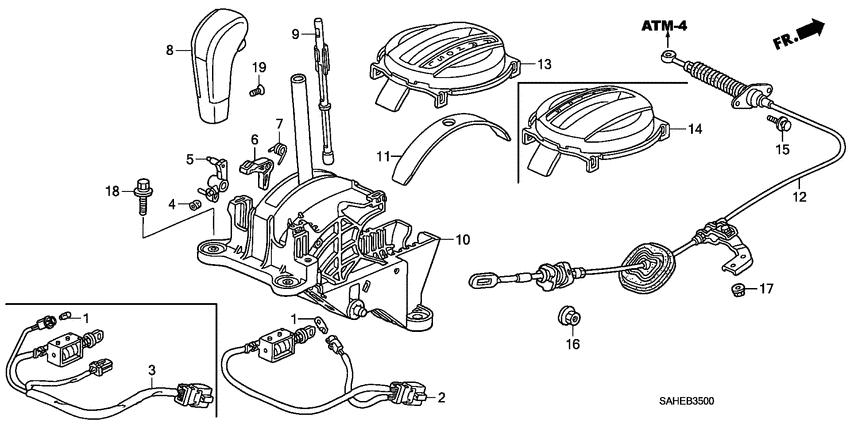

Select lever Diagram Honda JAZZ
- Year
- 2008
- Model code
- JAZZ
- Sales region
- General
- Engine
- L13A
- transmission
- CVT
- Number of doors
- 5
- grade
- 1.4 SE
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
3
|
3
37700-SAA-984 Lamp assy.SOLENOID & INDICATOR (AT) |
37700-SAA-984 |
US $45.44 |
||
|
4
|
4
54021-S10-A81 CushionSHIFT LOCK STOPPER |
54021-S10-A81 |
US $2.31 |
||
|
5
|
5
54023-SAA-983
Stopper
|
54023-SAA-983 |
— | ||
|
6
|
6
54030-SAA-982 ReleaseSHIFT LOCK |
54030-SAA-982 |
US $7.56 |
||
|
7
|
7
54031-SAA-981
Spring
|
54031-SAA-981 |
— | ||
|
8
|
8
54130-SAA-981ZA Knob assySELECT *NH167L* |
54130-SAA-981ZA |
US $38.40 |
||
|
9
|
9
54136-SAA-982 Rod aLOCK PIN |
54136-SAA-982 |
US $4.62 |
||
|
10
|
10
54200-SAA-985 Bracket comp.BASE |
54200-SAA-985 |
US $78.08 |
||
|
11
|
11
54222-SAA-982ZA CoverSELECT LEVER *NH1L* |
54222-SAA-982ZA |
US $5.88 |
||
|
12
|
12
54315-SAG-P01
Wire
|
54315-SAG-P01 |
— | ||
|
14
|
14
54710-SAA-982ZD Escutcheon comp.CONSOLE *NH600L* |
54710-SAA-982ZD |
US $61.57 |
||
|
15
|
15
90106-SDA-A00 Bolt-washer6X25 |
90106-SDA-A00 |
US $1.82 |
||
|
16
|
16
90351-SB2-003 NutFLANGE, 8MM |
90351-SB2-003 |
from US $2.31 |
||
|
17
|
17
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
18
|
18
93414-080-300-8 Bolt-washer8X30 |
93414-080-300-8 |
US $0.74 |
||
|
19
|
19
93700-050-080-G ScrewOVAL, 5X8 |
93700-050-080-G |
from US $0.37 |
