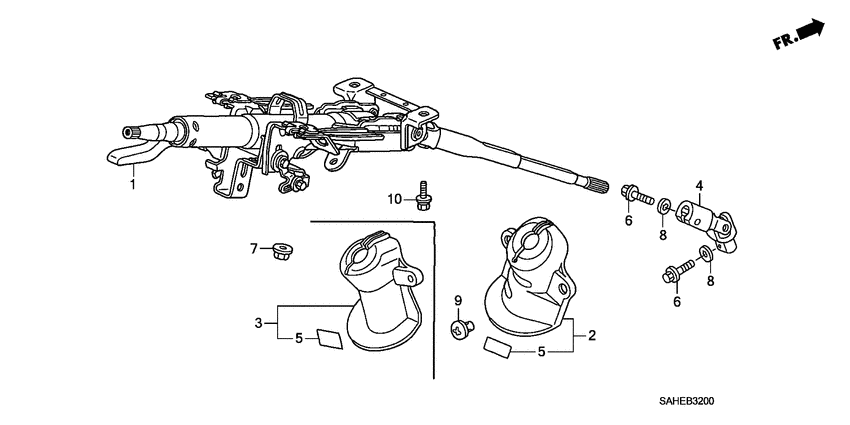

Steering column Diagram Honda JAZZ
- Year
- 2008
- Model code
- JAZZ
- Sales region
- General
- Engine
- L13A
- transmission
- CVT
- Number of doors
- 5
- grade
- 1.4 SE
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53200-SAA-013 Column assySTEERING |
53200-SAA-013 |
US $350.72 |
||
|
2
|
2
53320-SAA-E50 CoverSTEERING JOINT (RH) |
53320-SAA-E50 |
US $10.08 |
||
|
4
|
4
53323-SEN-013 Joint comp. bSTEERING |
53323-SEN-013 |
US $57.09 |
||
|
5
|
5
77873-SDA-E80 LabelSTEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
77873-SDA-E80 |
US $2.24 |
||
|
6
|
6
90135-SF1-000 BoltCENTER SHAFT YOKE |
90135-SF1-000 |
US $2.52 |
||
|
7
|
7
90361-SR3-000 NutFLANGE, 8MM |
90361-SR3-000 |
from US $0.61 |
||
|
8
|
8
90511-671-003 WasherTOOTHED LOCK |
90511-671-003 |
US $4.71 |
||
|
9
|
9
90676-SB2-003 ClipDASHBOARD INSULATOR |
90676-SB2-003 |
US $2.07 |
||
|
10
|
10
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.78 |
