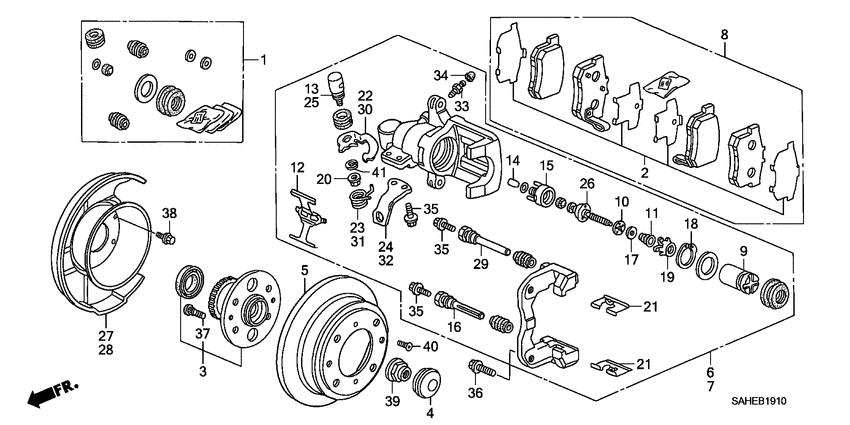

Rear brake (DISK) Diagram Honda JAZZ
- Year
- 2008
- Model code
- JAZZ
- Sales region
- General
- Engine
- L13A
- transmission
- CVT
- Number of doors
- 5
- grade
- 1.4 ES
- abs
- +
- area code
- KG
- left-hand drive
- +
- side srs
- +
- front fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01473-S04-000
Caliper set
|
01473-S04-000 |
— | ||
| replacement | |||||
|
1
|
1
01473S04010 SETRR CALIPER 7 |
01473S04010 |
US $34.11 |
||
|
2
|
2
06435-SAA-J50
Shim set
|
06435-SAA-J50 |
— | ||
|
3
|
3
42200-SAH-G51
Bearing assy
|
42200-SAH-G51 |
— | ||
|
4
|
4
42326-SFA-000 CapHUB UNIT |
42326-SFA-000 |
from US $6.19 |
||
|
5
|
5
42510-SR3-A11 DiskRR. BRAKE |
42510-SR3-A11 |
US $124.80 |
||
|
6
|
6
43018-SAA-J50
Caliper sub assy.
|
43018-SAA-J50 |
— | ||
| replacement | |||||
|
6
|
6
43018-SAA-J51 Caliper sub assy.R. RR. |
43018-SAA-J51 |
US $375.50 |
||
|
7
|
7
43019-SAA-J50 Caliper sub assy.L. RR. |
43019-SAA-J50 |
US $276.48 |
||
|
8
|
8
43022-SAA-E51 Pad setRR. |
43022-SAA-E51 |
US $89.60 |
||
|
9
|
9
43215-SH3-931 Piston assy. |
43215-SH3-931 |
from US $30.33 |
||
|
10
|
10
43223-SD2-932 BEARING A |
43223-SD2-932 |
from US $5.18 |
||
|
11
|
11
43224-SD2-931 Spring bADJUSTING |
43224-SD2-931 |
US $9.45 |
||
|
12
|
12
43227-SF1-003 SpringPAD |
43227-SF1-003 |
US $18.67 |
||
|
13
|
13
43228-SD2-933 Shaft a |
43228-SD2-933 |
from US $17.91 |
||
|
14
|
14
43229-SD2-931 Rod |
43229-SD2-931 |
from US $2.52 |
||
|
15
|
15
43233-S5A-J01 Piston compSLEEVE |
43233-S5A-J01 |
from US $13.44 |
||
| replacement | |||||
|
15
|
15
43233-TR0-A01 Piston, sleeve |
43233-TR0-A01 |
from US $11.06 |
||
|
16
|
16
43235-S84-A51 Pin a |
43235-S84-A51 |
from US $7.25 |
||
|
17
|
17
43236-S04-003 Spacer |
43236-S04-003 |
US $9.59 |
||
|
18
|
18
43238-SD2-931 RingRETAINING |
43238-SD2-931 |
from US $3.57 |
||
|
19
|
19
43241-SD2-931 GuideSPRING |
43241-SD2-931 |
from US $2.87 |
||
|
20
|
20
43243-SD2-931 NutPARKING |
43243-SD2-931 |
from US $3.34 |
||
|
21
|
21
43244-SD2-931 Retainer |
43244-SD2-931 |
US $4.22 |
||
|
22
|
22
43245-SAA-J51 LeverR. |
43245-SAA-J51 |
US $8.82 |
||
|
23
|
23
43246-SD2-931
Spring
|
43246-SD2-931 |
— | ||
|
24
|
24
43247-SAA-J51 ArmR. |
43247-SAA-J51 |
US $14.85 |
||
|
25
|
25
43248-SD2-933 Shaft b |
43248-SD2-933 |
US $36.74 |
||
|
26
|
26
43249-S04-003 BoltADJUSTER |
43249-S04-003 |
from US $6.02 |
||
|
27
|
27
43253-SAA-J50 GuardR. RR. BRAKE SPLASH |
43253-SAA-J50 |
US $62.23 |
||
|
28
|
28
43254-SAA-J50 GuardL. RR. BRAKE SPLASH |
43254-SAA-J50 |
US $38.78 |
||
|
29
|
29
43262-S84-A51 Pin b |
43262-S84-A51 |
from US $7.25 |
||
|
30
|
30
43265-SAA-J51 LeverL. |
43265-SAA-J51 |
US $8.82 |
||
|
31
|
31
43266-SD2-931
Spring
|
43266-SD2-931 |
— | ||
|
32
|
32
43267-SAA-J51 ArmL. |
43267-SAA-J51 |
US $14.85 |
||
|
33
|
33
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.26 |
||
|
34
|
34
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
35
|
35
45240-SC2-003 BoltFLANGE, 8X22 |
45240-SC2-003 |
from US $3.03 |
||
|
36
|
36
90103-SN7-003 BoltFLANGE, 10X25 |
90103-SN7-003 |
US $2.44 |
||
|
37
|
37
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
37
|
37
90113-SA0-025 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-025 |
from US $2.93 |
||
| replacement | |||||
|
37
|
37
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
37
|
37
90113-S5H-005 BoltWHEEL (THAI MEIRA) |
90113-S5H-005 |
from US $3.70 |
||
|
37
|
37
90113-SA0-006 BoltWHEEL (SAGA) |
90113-SA0-006 |
from US $2.59 |
||
| replacement | |||||
|
37
|
37
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
38
|
38
90163-SAA-000 BoltRR. SPINDLE, 10X30 |
90163-SAA-000 |
US $2.31 |
||
|
39
|
39
90305-S50-003 NutSPINDLE |
90305-S50-003 |
US $6.19 |
||
|
40
|
40
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
41
|
41
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
