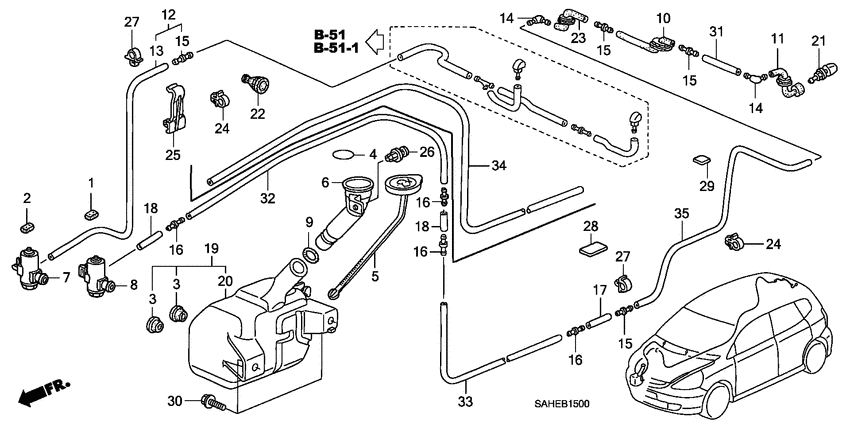

Windshield washer Diagram Honda JAZZ
- Year
- 2008
- Model code
- JAZZ
- Sales region
- General
- Engine
- L13A
- transmission
- CVT
- Number of doors
- 5
- grade
- 1.4 ES
- abs
- +
- area code
- KG
- left-hand drive
- +
- side srs
- +
- front fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
38519-SB0-003 BushWASHER TANK (MITSUBA) |
38519-SB0-003 |
from US $2.97 |
||
|
5
|
5
76802-SAG-H01 Cap unitMOUTH |
76802-SAG-H01 |
from US $4.62 |
||
|
6
|
6
76805-SAG-H01 Hose |
76805-SAG-H01 |
US $12.88 |
||
|
7
|
7
76806-SAA-E01 MotorWASHER (HIGH) |
76806-SAA-E01 |
from US $43.14 |
||
|
8
|
8
76806-SE0-J01 MotorRR. WASHER (MITSUBA) |
76806-SE0-J01 |
US $31.36 |
||
|
9
|
9
76809-S9A-901 Packing |
76809-S9A-901 |
US $2.73 |
||
|
10
|
10
76820-SJ8-003 GrommetRR. WASHER TUBE |
76820-SJ8-003 |
US $2.87 |
||
|
11
|
11
76825-SAG-H01
Tube
|
76825-SAG-H01 |
— | ||
|
13
|
13
76837-S10-G01
Tube
|
76837-S10-G01 |
— | ||
|
14
|
14
76852-SCP-W01
Joint l
|
76852-SCP-W01 |
— | ||
|
15
|
15
76851-SCP-W01
Joint i
|
76851-SCP-W01 |
— | ||
|
16
|
16
76851-SCP-W01
Joint i
|
76851-SCP-W01 |
— | ||
|
17
|
17
76839-SL0-G51
Tube f
|
76839-SL0-G51 |
— | ||
|
18
|
18
76839-SL0-G51
Tube f
|
76839-SL0-G51 |
— | ||
|
20
|
20
76841-SAG-H01
Tank
|
76841-SAG-H01 |
— | ||
|
21
|
21
76850-SAG-H01
Nozzle assy.
|
76850-SAG-H01 |
— | ||
|
22
|
22
76851-SAG-H01
Grommet
|
76851-SAG-H01 |
— | ||
|
23
|
23
76852-SAG-H01
Tube b
|
76852-SAG-H01 |
— | ||
|
24
|
24
90652-SB2-023 ClipTUBE, 7MM |
90652-SB2-023 |
from US $2.22 |
||
|
25
|
25
91504-SR3-003 ClipWASHER TUBE |
91504-SR3-003 |
US $4.80 |
||
|
26
|
26
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $1.98 |
||
|
27
|
27
91523-SM4-003 ClipWASHER TUBE |
91523-SM4-003 |
US $1.78 |
||
|
28
|
28
91902-S2X-003 PlasterWIRE HARNESS(50X100) |
91902-S2X-003 |
US $1.61 |
||
|
29
|
29
91902-S3N-003 PlasterWIRE HARNESS (50X50) |
91902-S3N-003 |
US $1.19 |
||
|
30
|
30
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
31
|
31
95003-070-193-1 TubeVINYL, 4X7X190 (95003-07001-60M) |
95003-070-193-1 |
US $0.52 |
||
|
34
|
34
95003-072-573-1 TubeVINYL, 4X7X2570 (95003-07003-60M) |
95003-072-573-1 |
US $5.33 |
||
|
35
|
35
95003-072-593-1 TubeVINYL, 4X7X2590 (95003-07003-60M) |
95003-072-593-1 |
US $5.33 |
