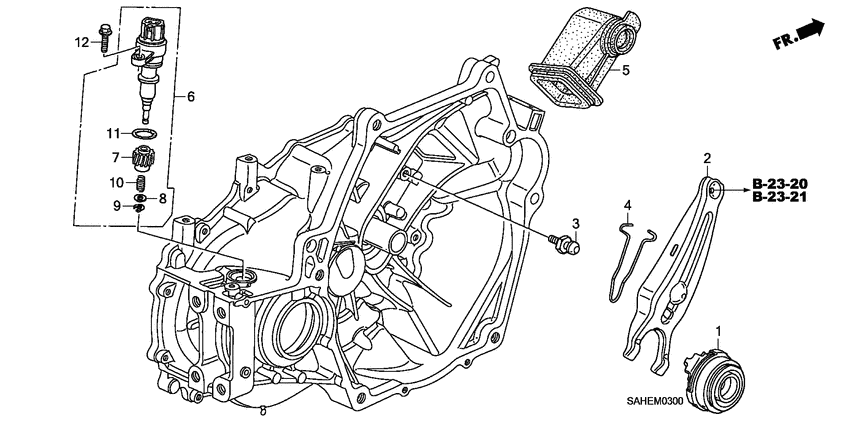

Clutch release Diagram Honda JAZZ
- Year
- 2008
- Model code
- JAZZ
- Sales region
- General
- Engine
- L13A
- transmission
- 5MT
- Number of doors
- 5
- grade
- S4ES
- abs
- +
- area code
- KG
- left-hand drive
- +
- side srs
- +
- front fog light
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22810-PLW-005 Bearing, CLUTCH RELEASE (NSK) |
22810-PLW-005 |
US $47.60 |
||
|
2
|
2
22821-REL-000
Fork
|
22821-REL-000 |
— | ||
|
3
|
3
22825-PX5-A00 BoltRELEASE FORK |
22825-PX5-A00 |
US $5.60 |
||
|
4
|
4
22835-PWL-000
Spring
|
22835-PWL-000 |
— | ||
|
5
|
5
22841-PWL-000 BootRELEASE FORK |
22841-PWL-000 |
from US $12.46 |
||
|
6
|
6
78410-SAA-003 Sensor assySPEED (NS) |
78410-SAA-003 |
US $103.68 |
||
|
7
|
7
78415-SAA-003 Gear |
78415-SAA-003 |
US $4.20 |
||
|
8
|
8
78416-S2R-003
Washer
|
78416-S2R-003 |
— | ||
|
9
|
9
78417-S2R-003 RingSTOP (C-TYPE) |
78417-S2R-003 |
US $1.12 |
||
|
10
|
10
78418-S2R-003
Spring
|
78418-S2R-003 |
— | ||
|
11
|
11
78419-S2R-003 SealRING |
78419-S2R-003 |
US $1.86 |
||
|
12
|
12
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
