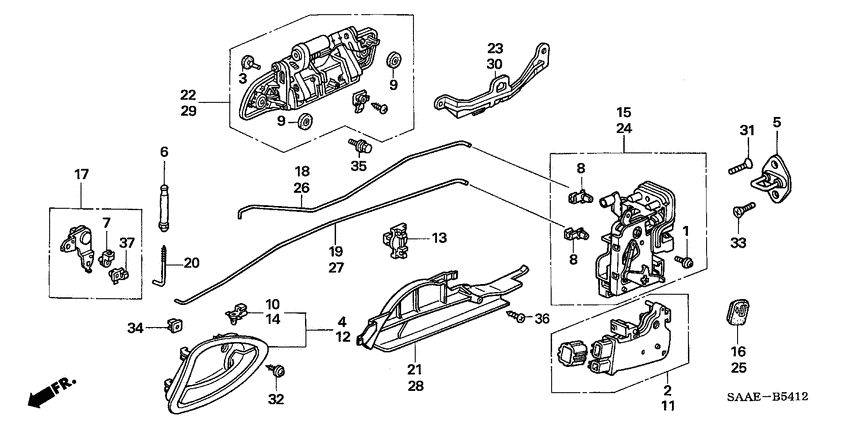

Rear door locks/ outer handle (3) Diagram Honda JAZZ
- Year
- 2005
- Model code
- JAZZ
- Sales region
- General
- Engine
- L13A
- transmission
- CVT
- Number of doors
- 5
- grade
- S4ES
- abs
- +
- area code
- KG
- left-hand drive
- +
- air conditioner (auto)
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72113-S6A-004
Tite
|
72113-S6A-004 |
— | ||
|
2
|
2
72115-S6A-J11 Actuator assyDOOR LOCK |
72115-S6A-J11 |
US $89.96 |
||
|
3
|
3
72119-S04-003
Stopper a
|
72119-S04-003 |
— | ||
|
4
|
4
72120-SAA-J01ZA Handle assyR. INSIDE *NH167L* |
72120-SAA-J01ZA |
US $27.26 |
||
|
5
|
5
72135-S5A-003
Striker assy
|
72135-S5A-003 |
— | ||
|
6
|
6
72137-SP0-003ZA KnobINSIDE DOOR LOCK *NH167L* |
72137-SP0-003ZA |
US $3.57 |
||
|
7
|
7
72111-SEN-H01 FastenerBLACK |
72111-SEN-H01 |
US $2.66 |
||
|
8
|
8
72139-SR3-003 FastenerNATURAL |
72139-SR3-003 |
US $2.38 |
||
|
9
|
9
72143-S04-003 Packing |
72143-S04-003 |
US $1.61 |
||
|
10
|
10
72149-SAA-003
Snap
|
72149-SAA-003 |
— | ||
|
11
|
11
72155-S6A-J11 Actuator assyL. DOOR LOCK |
72155-S6A-J11 |
US $90.24 |
||
|
12
|
12
72160-SAA-J01ZA Handle assyL. INSIDE *NH167L* |
72160-SAA-J01ZA |
US $27.26 |
||
|
13
|
13
72175-SH3-901 HolderDOOR LOCK ROD |
72175-SH3-901 |
US $4.32 |
||
|
14
|
14
72189-SAA-003
Snap
|
72189-SAA-003 |
— | ||
|
15
|
15
72612-SAG-H02
Lock assy
|
72612-SAG-H02 |
— | ||
|
16
|
16
72612-SEL-T00 CapR. CHILD LOCK |
72612-SEL-T00 |
US $2.59 |
||
|
17
|
17
72630-SEN-H01
Crank assy
|
72630-SEN-H01 |
— | ||
|
18
|
18
72631-SAA-014 RodR. RR. INSIDE HANDLE |
72631-SAA-014 |
US $5.46 |
||
|
19
|
19
72632-SAA-004 RodR. RR. DOOR LOCK |
72632-SAA-004 |
US $5.74 |
||
|
20
|
20
72633-SAA-004 RodRR. DOOR LOCK KNOB |
72633-SAA-004 |
US $3.15 |
||
|
21
|
21
72639-SAA-J01 ProtectorR. RR. DOOR ROD |
72639-SAA-J01 |
US $7.84 |
||
|
22
|
22
72640-SAH-G01ZE
Handle assy
|
72640-SAH-G01ZE |
— | ||
|
22
|
22
72640-SAH-G01ZG
Handle assy
|
72640-SAH-G01ZG |
— | ||
|
22
|
22
72640-SAH-G01ZA
Handle assy
|
72640-SAH-G01ZA |
— | ||
|
22
|
22
72640-SAH-G01ZC
Handle assy
|
72640-SAH-G01ZC |
— | ||
|
22
|
22
72640-SAH-G01ZF
Handle assy
|
72640-SAH-G01ZF |
— | ||
|
22
|
22
72640-SAH-G01ZB
Handle assy
|
72640-SAH-G01ZB |
— | ||
|
23
|
23
72645-SAA-000 ProtectorR. RR. DOOR OUTSIDE HANDLE |
72645-SAA-000 |
US $6.58 |
||
|
24
|
24
72652-SAG-H02
Lock assy
|
72652-SAG-H02 |
— | ||
|
25
|
25
72652-SEL-T00 CapL. CHILD LOCK |
72652-SEL-T00 |
US $2.59 |
||
|
26
|
26
72671-SAA-014 RodL. RR. INSIDE HANDLE |
72671-SAA-014 |
US $5.46 |
||
|
27
|
27
72672-SAA-004 RodL. RR. DOOR LOCK |
72672-SAA-004 |
US $5.74 |
||
|
28
|
28
72679-SAA-J01 ProtectorL. RR. DOOR ROD |
72679-SAA-J01 |
US $7.84 |
||
|
29
|
29
72680-SAH-G01ZB
Handle assy
|
72680-SAH-G01ZB |
— | ||
|
29
|
29
72680-SAH-G01ZG
Handle assy
|
72680-SAH-G01ZG |
— | ||
|
29
|
29
72680-SAH-G01ZE
Handle assy
|
72680-SAH-G01ZE |
— | ||
|
29
|
29
72680-SAH-G01ZA
Handle assy
|
72680-SAH-G01ZA |
— | ||
|
29
|
29
72680-SAH-G01ZF
Handle assy
|
72680-SAH-G01ZF |
— | ||
|
29
|
29
72680-SAH-G01ZC
Handle assy
|
72680-SAH-G01ZC |
— | ||
|
30
|
30
72685-SAA-000 ProtectorL. RR. DOOR OUTSIDE HANDLE |
72685-SAA-000 |
US $6.58 |
||
|
31
|
31
90103-S7S-003 ScrewFLAT, 6X18.5 |
90103-S7S-003 |
from US $1.21 |
||
|
32
|
32
90120-SM4-000 ScrewTAPPING |
90120-SM4-000 |
US $1.55 |
||
|
33
|
33
90120-SV4-000 BoltLOCK STRIKER |
90120-SV4-000 |
US $1.63 |
||
|
34
|
34
90866-SA0-000 GrommetSCREW, 4MM |
90866-SA0-000 |
from US $2.37 |
||
|
35
|
35
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
36
|
36
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
|
37
|
37
72139-SR3-003 FastenerNATURAL |
72139-SR3-003 |
US $2.38 |
