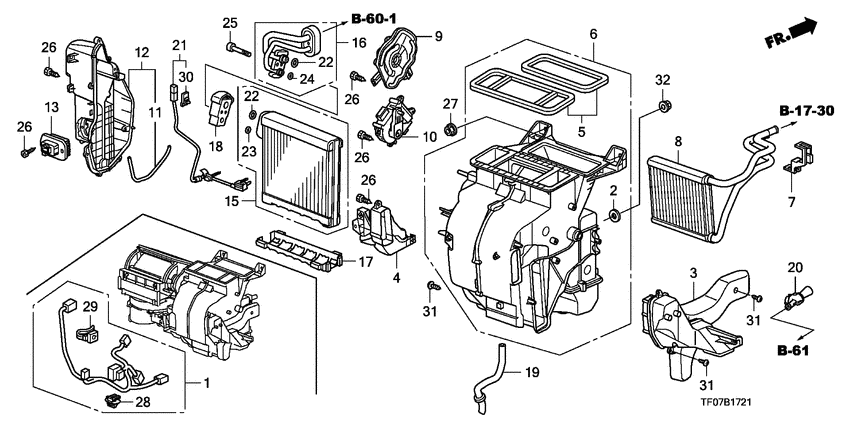

Heater unit (RH) Diagram Honda JAZZ
- Year
- 2009
- Model code
- JAZZ
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.5 LSPO
- area code
- KN
- right-hand drive
- +
- side srs
- +
- heated seat
- +
- glass roof
- +
- front fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32157-TF0-000
Sub cord
|
32157-TF0-000 |
— | ||
|
2
|
2
39248-692-003 PackingHEATER |
39248-692-003 |
US $1.54 |
||
|
3
|
3
79101-TF0-003 Duct a |
79101-TF0-003 |
US $8.26 |
||
|
4
|
4
79102-TF0-003 Duct b |
79102-TF0-003 |
US $8.26 |
||
|
5
|
5
79103-TF0-003 Packing setVENT |
79103-TF0-003 |
US $5.46 |
||
|
6
|
6
79106-TF0-941 Heater unit |
79106-TF0-941 |
US $250.88 |
||
|
7
|
7
79108-TF0-003 ClampHEATER PIPE |
79108-TF0-003 |
US $1.82 |
||
|
8
|
8
79110-TF0-003 Core compHEATER |
79110-TF0-003 |
US $229.12 |
||
|
9
|
9
79140-TF0-941 Motor assy.MODE |
79140-TF0-941 |
US $69.76 |
||
|
10
|
10
79160-TF0-941 Motor assy.AIR MIX |
79160-TF0-941 |
US $69.76 |
||
|
11
|
11
79191-SAA-003 Packing |
79191-SAA-003 |
US $3.43 |
||
|
12
|
12
79308-TF0-003 Joint setDUCT |
79308-TF0-003 |
US $22.53 |
||
|
13
|
13
79330-SCA-A02
Transistor
|
79330-SCA-A02 |
— | ||
|
15
|
15
80211-TF0-003 Evaporator comp. |
80211-TF0-003 |
US $463.76 |
||
|
16
|
16
80216-TF0-003 Pipe assy. |
80216-TF0-003 |
US $24.32 |
||
|
17
|
17
80218-TF0-003
Tray
|
80218-TF0-003 |
— | ||
|
18
|
18
80222-TF0-003
Valve
|
80222-TF0-003 |
— | ||
|
19
|
19
80271-TF0-000 HoseDRAIN |
80271-TF0-000 |
US $5.74 |
||
|
20
|
20
80534-SAA-941 Aspirator |
80534-SAA-941 |
US $13.82 |
||
|
21
|
21
80560-TF0-003
Thermistor sub assy.
|
80560-TF0-003 |
— | ||
|
22
|
22
80871-SN7-003 O-ring5/8" |
80871-SN7-003 |
from US $2.66 |
||
|
23
|
23
80872-SN7-003 O-ring1/2" |
80872-SN7-003 |
from US $2.44 |
||
|
24
|
24
80873-SN7-003 O-ring8MM |
80873-SN7-003 |
from US $2.44 |
||
|
25
|
25
90110-SAA-003 BoltSOCKET |
90110-SAA-003 |
US $1.19 |
||
|
26
|
26
90127-S3N-003 ScrewTAPPING, 4X16 |
90127-S3N-003 |
from US $1.19 |
||
|
27
|
27
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
from US $1.47 |
||
|
28
|
28
91533-STK-003 ClipCOUPLER(NATURAL) |
91533-STK-003 |
from US $3.08 |
||
|
29
|
29
91548-SV4-003 ClipBAND (6MM BOSS)(NATURAL) (127MM) |
91548-SV4-003 |
US $2.73 |
||
|
30
|
30
91580-SM4-003 ClipCOUPLER(ORANGE) |
91580-SM4-003 |
from US $1.68 |
||
|
31
|
31
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
32
|
32
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
