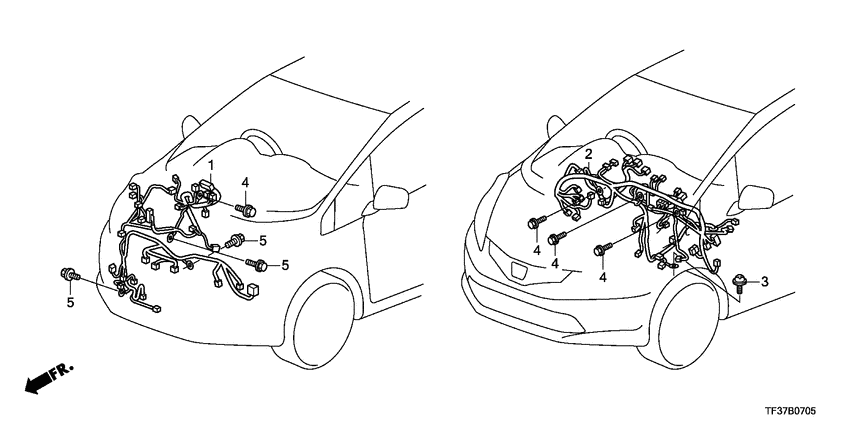

Wire harness (RH; 3) Diagram Honda JAZZ
- Year
- 2011
- Model code
- JAZZ
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.5LSPO
- area code
- KN
- right-hand drive
- +
- side srs
- +
- side curtain srs
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-TF0-Z61 HarnessR. CABIN WIRE (INCLUDE WASHER TUBE & CABLE) |
32100-TF0-Z61 |
US $385.28 |
||
|
2
|
2
32117-TF0-T61 HarnessINSTRUMENT WIRE |
32117-TF0-T61 |
US $399.36 |
||
|
3
|
3
90137-S84-A01 BoltTORX EARTH, 6X20 |
90137-S84-A01 |
from US $2.69 |
||
|
4
|
4
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
5
|
5
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
