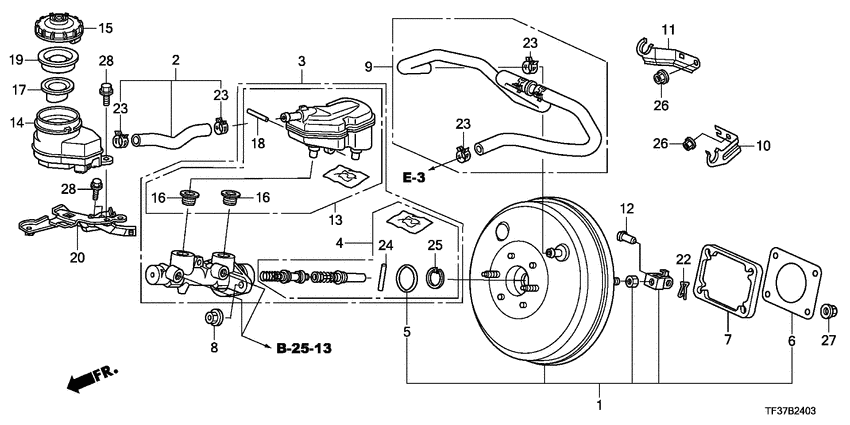

Brake master cylinder/mas ter power (RH; 2) Diagram Honda JAZZ
- Year
- 2011
- Model code
- JAZZ
- Sales region
- General
- Engine
- L12B
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.2SE
- area code
- KE
- right-hand drive
- +
- side srs
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01469-TF0-E01 Power setMASTER(9") |
01469-TF0-E01 |
US $416 |
||
|
2
|
2
46017-TF0-E00 Hose setRESERVE TANK |
46017-TF0-E00 |
US $20.10 |
||
|
3
|
3
46100-TF0-E02 Cylinder assy.MASTER |
46100-TF0-E02 |
US $286.72 |
||
|
4
|
4
46101-TF0-E02 Cylinder setMASTER POWER |
46101-TF0-E02 |
US $286.72 |
||
|
5
|
5
46185-SHJ-A01 O-ring |
46185-SHJ-A01 |
US $6.44 |
||
|
6
|
6
46191-TF0-E01 GasketBRAKE BOOSTER |
46191-TF0-E01 |
US $4.62 |
||
|
7
|
7
46192-TF0-E01 BracketBRAKE BOOSTER |
46192-TF0-E01 |
US $21.63 |
||
|
8
|
8
46197-SHJ-A01 Nut-washer8MM |
46197-SHJ-A01 |
US $3.08 |
||
|
9
|
9
46402-TF0-902
Tube assy
|
46402-TF0-902 |
— | ||
|
10
|
10
46406-TF0-000 BracketMASTER POWER TUBE |
46406-TF0-000 |
US $1.47 |
||
|
11
|
11
46407-TF0-000 BracketMASTER POWER TUBE |
46407-TF0-000 |
US $1.61 |
||
|
12
|
12
46512-S70-000 PinPEDAL |
46512-S70-000 |
from US $2.31 |
||
|
13
|
13
46661-TF0-E01 Reservoir set |
46661-TF0-E01 |
US $66.56 |
||
|
14
|
14
46661-TF0-000 Reservoir set |
46661-TF0-000 |
US $38.02 |
||
|
15
|
15
46662-S9A-003 Cap comp.RESERVE TANK |
46662-S9A-003 |
from US $14.21 |
||
|
16
|
16
46665-TF0-E01 Grommet |
46665-TF0-E01 |
US $5.74 |
||
|
17
|
17
46666-S2K-003 FilterBRAKE RESERVOIR |
46666-S2K-003 |
from US $5.33 |
||
|
18
|
18
46668-TF0-E01 Pin |
46668-TF0-E01 |
US $5.74 |
||
|
19
|
19
46669-S5A-003 Diaphragm |
46669-S5A-003 |
from US $8.88 |
||
|
20
|
20
46674-TF0-E00 BracketRESERVE TANK |
46674-TF0-E00 |
US $13.44 |
||
|
22
|
22
46911-S70-003 Pin, LOCK(8MM) |
46911-S70-003 |
from US $1.85 |
||
|
23
|
23
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.74 |
||
|
24
|
24
57515-TF0-E01 PinSTRAIGHT |
57515-TF0-E01 |
US $2.87 |
||
|
25
|
25
57562-TF0-E01 RingHOLE SNAP |
57562-TF0-E01 |
US $2.66 |
||
|
26
|
26
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
27
|
27
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
28
|
28
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
