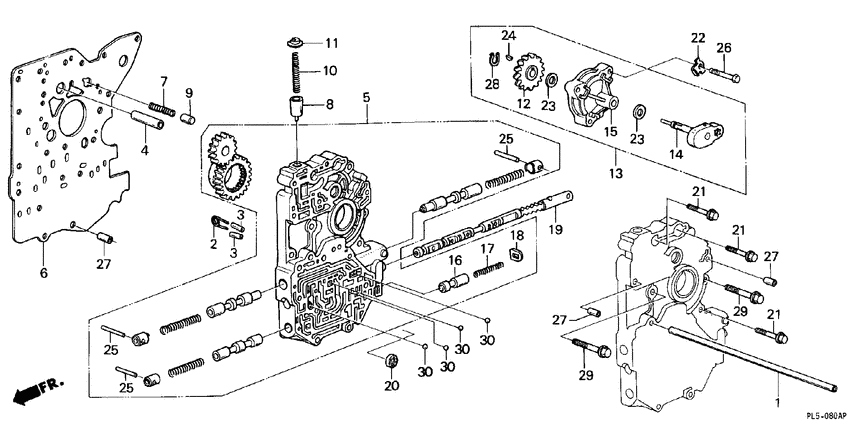

Main valve body ('88) Diagram Honda LEGEND
- Year
- 1988
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 2.7I
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
- auto cruise
- +
- power seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22741-PG4-010
Pipe
|
22741-PG4-010 |
— | ||
|
2
|
2
24461-PA9-010
Spring
8010371 - |
24461-PA9-010 |
— | ||
|
2
|
2
24461-PA9-000
Spring
00000000 - 8010370 |
24461-PA9-000 |
— | ||
| replacement | |||||
|
2
|
2
24461-PA9-010
Spring
00000000 - 8010370 |
24461-PA9-010 |
— | ||
|
3
|
3
24471-612-000 Roller6X16 00000000 - 8008020 |
24471-612-000 |
US $3.43 |
||
|
3
|
3
24471-PN6-000 Roller6X16 8008021 - |
24471-PN6-000 |
US $2.45 |
||
|
4
|
4
25145-PA9-010 ShaftOIL PUMP GEAR |
25145-PA9-010 |
US $11.09 |
||
|
5
|
5
27105-PL5-J03
Body sub assy.
|
27105-PL5-J03 |
— | ||
|
6
|
6
27112-PL5-J01
Plate
|
27112-PL5-J01 |
— | ||
|
7
|
7
27255-PC9-710
Spring
|
27255-PC9-710 |
— | ||
|
8
|
8
27256-PA9-000
Valve
|
27256-PA9-000 |
— | ||
|
9
|
9
27256-639-000
Valve
|
27256-639-000 |
— | ||
|
10
|
10
27257-PG4-000
Spring
|
27257-PG4-000 |
— | ||
|
11
|
11
27258-680-900 SeatRELIEF VALVE SPRING |
27258-680-900 |
from US $1.82 |
||
|
12
|
12
27342-PL5-000
Gear
|
27342-PL5-000 |
— | ||
|
13
|
13
27350-PL5-000
Shaft assy
|
27350-PL5-000 |
— | ||
|
14
|
14
27351-PL5-023
Shaft comp.
|
27351-PL5-023 |
— | ||
|
15
|
15
27365-PL5-003
Holder
|
27365-PL5-003 |
— | ||
|
16
|
16
27415-PC9-010
Valve
|
27415-PC9-010 |
— | ||
|
17
|
17
27418-PF4-000
Spring
|
27418-PF4-000 |
— | ||
|
18
|
18
27419-PC9-010 SEAT, VALVE SPRINGVALVE SPRING |
27419-PC9-010 |
US $2.10 |
||
|
19
|
19
27421-PL5-010
Valve
|
27421-PL5-010 |
— | ||
|
20
|
20
27750-PL5-J01 FilterSECONDARY BODY 8009841 - |
27750-PL5-J01 |
US $5.91 |
||
|
20
|
20
27750-PL5-J00 FilterSECONDARY BODY 00000000 - 8009840 |
27750-PL5-J00 |
US $6.86 |
||
|
21
|
21
90007-PA9-000
Bolt
|
90007-PA9-000 |
— | ||
| replacement | |||||
|
21
|
21
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
22
|
22
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
23
|
23
90451-PC9-000 WasherTHRUST, 14MM |
90451-PC9-000 |
from US $2.44 |
||
|
24
|
24
90741-PA9-000 KeyWOODRUFF, 3MM |
90741-PA9-000 |
US $2.10 |
||
|
25
|
25
91101-PF4-003 Roller3.5X21.8 |
91101-PF4-003 |
from US $1.19 |
||
|
26
|
26
93301-060-300-H BoltHEX., 6X30 |
93301-060-300-H |
from US $0.52 |
||
|
27
|
27
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
28
|
28
94510-14000 CirclipEXTERNAL, 14MM |
94510-14000 |
from US $0.22 |
||
|
29
|
29
95701-080-320-8 BoltFLANGE, 8X32 |
95701-080-320-8 |
from US $0.74 |
||
|
30
|
30
96211-07000 BallSTEEL, #7 (7/32) |
96211-07000 |
from US $0.15 |
||
