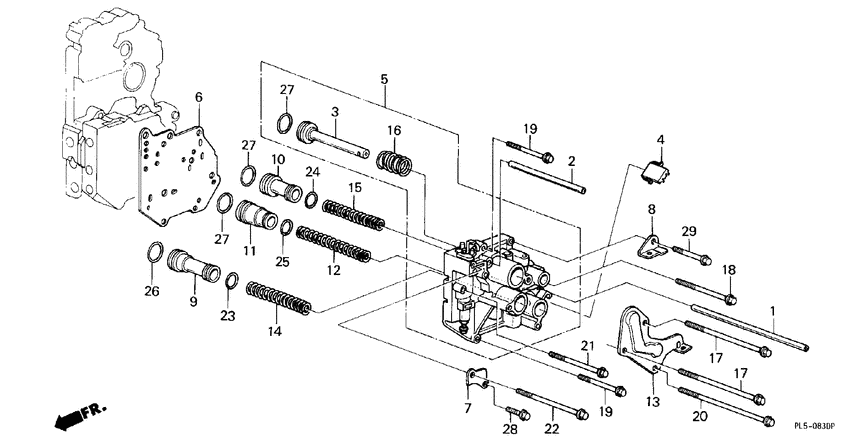

Servo body ('88) Diagram Honda LEGEND
- Year
- 1988
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 2.7I
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
- auto cruise
- +
- power seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22743-PG4-000 PipeTHIRD CLUTCH |
22743-PG4-000 |
US $7.56 |
||
|
2
|
2
22744-PG4-000 PipeTOP CLUTCH |
22744-PG4-000 |
US $7.56 |
||
|
3
|
3
24271-PL5-000
Shaft a
|
24271-PL5-000 |
— | ||
|
3
|
3
24273-PL5-000
Shaft c
|
24273-PL5-000 |
— | ||
|
3
|
3
24272-PL5-000
Shaft b
|
24272-PL5-000 |
— | ||
|
4
|
4
25422-PN6-801 Magnet comp.TRANSMISSION |
25422-PN6-801 |
US $7 |
||
|
5
|
5
27405-PL5-N00
Body sub assy.
|
27405-PL5-N00 |
— | ||
|
6
|
6
27412-PL5-010
Plate
|
27412-PL5-010 |
— | ||
|
7
|
7
27413-PL5-000
Cover
|
27413-PL5-000 |
— | ||
|
8
|
8
27433-PL5-000
Stopper
|
27433-PL5-000 |
— | ||
|
9
|
9
27572-PL5-010
Piston
|
27572-PL5-010 |
— | ||
|
10
|
10
27574-PG4-000
Piston
|
27574-PG4-000 |
— | ||
|
11
|
11
27576-PL5-J00
Piston
|
27576-PL5-J00 |
— | ||
|
12
|
12
27577-PL5-J01
Spring
|
27577-PL5-J01 |
— | ||
|
13
|
13
27580-PL5-000
Cover
|
27580-PL5-000 |
— | ||
|
14
|
14
27582-PG4-040
Spring
|
27582-PG4-040 |
— | ||
|
15
|
15
27583-PL5-N00
Spring
|
27583-PL5-N00 |
— | ||
|
16
|
16
27861-PC9-010
Spring
|
27861-PC9-010 |
— | ||
|
17
|
17
90002-PL5-000
Bolt
00000000 - 8009950 |
90002-PL5-000 |
— | ||
|
17
|
17
90002-PK4-E00 BoltFLANGE, 6X150 8009951 - |
90002-PK4-E00 |
US $6.02 |
||
|
18
|
18
90003-PL5-000 BoltFLANGE, 6X110 |
90003-PL5-000 |
from US $4.35 |
||
|
19
|
19
90004-PC9-000 BoltFLANGE, 6X90 |
90004-PC9-000 |
US $3.36 |
||
|
20
|
20
90004-PL5-000
Bolt
|
90004-PL5-000 |
— | ||
|
21
|
21
90009-PA9-000
Bolt
|
90009-PA9-000 |
— | ||
|
22
|
22
90012-PL5-000
Bolt
|
90012-PL5-000 |
— | ||
|
23
|
23
91326-PL5-003 O-ring26X2.4(NOK) |
91326-PL5-003 |
from US $2.70 |
||
|
24
|
24
91331-PC9-004
O-ring
|
91331-PC9-004 |
— | ||
| replacement | |||||
|
24
|
24
91331-PC9-003 O-ring |
91331-PC9-003 |
from US $0.77 |
||
|
24
|
24
91331-PC9-003 O-ring |
91331-PC9-003 |
from US $0.77 |
||
|
25
|
25
91331-PL5-J00 O-ring20.2X2.4 (NOK) |
91331-PL5-J00 |
US $1.68 |
||
|
26
|
26
91344-PC9-003
O-ring
|
91344-PC9-003 |
— | ||
|
26
|
26
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
27
|
27
91344-580-000 O-ring31X2.7 (ARAI) |
91344-580-000 |
US $2 |
||
|
28
|
28
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
29
|
29
95701-060-600-8 BoltFLANGE, 6X60 |
95701-060-600-8 |
from US $0.74 |
||
