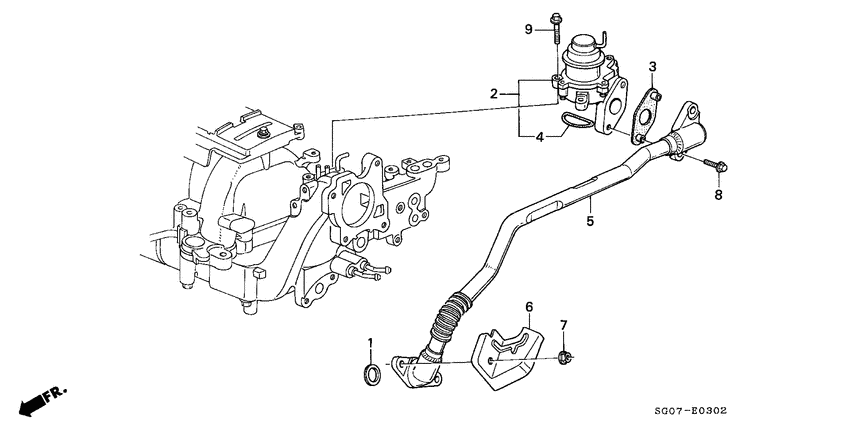

Air suction valve Diagram Honda LEGEND
- Year
- 1990
- Model code
- LEGEND COUPE
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 2
- grade
- V6 2.7I
- area code
- KB
- left-hand drive
- +
- catalyst
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
18102-PH7-661
Gasket
|
18102-PH7-661 |
— | ||
2
|
2
18760-PL2-664
Valve assy.
|
18760-PL2-664 |
— | ||
3
|
3
18766-PH7-661
Gasket
|
18766-PH7-661 |
— | ||
4
|
4
18768-PL2-663
Packing b
|
18768-PL2-663 |
— | ||
5
|
5
18790-PH7-661
Pipe comp
|
18790-PH7-661 |
— | ||
6
|
6
18793-PH7-660
Guard
|
18793-PH7-660 |
— | ||
7
|
7
90217-657-000 Nut, SPECIAL, 8MM |
90217-657-000 |
from US $1.68 |
||
8
|
8
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
||
9
|
9
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
