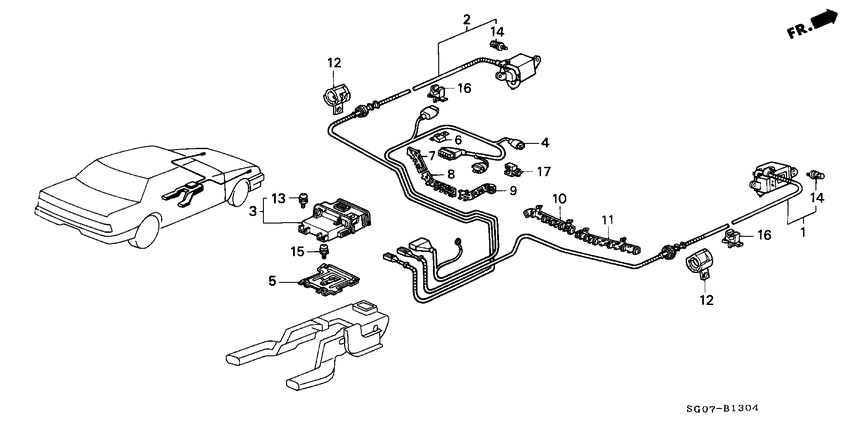

Control unit (S.R.S) Diagram Honda LEGEND
- Year
- 1990
- Model code
- LEGEND COUPE
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 2
- grade
- V6 2.7I
- area code
- KG
- left-hand drive
- +
- catalyst
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77930-SG0-A80
Sensor kit
|
77930-SG0-A80 |
— | ||
|
2
|
2
77931-SG0-A80
Sensor kit
|
77931-SG0-A80 |
— | ||
|
3
|
3
77932-SG0-G80
Srs unit kit
|
77932-SG0-G80 |
— | ||
|
4
|
4
77961-SD4-G80
Harness
|
77961-SD4-G80 |
— | ||
|
5
|
5
77965-SG0-A80 BracketSRS UNIT |
77965-SG0-A80 |
US $11.48 |
||
|
6
|
6
77967-SG0-A80
Bracket
|
77967-SG0-A80 |
— | ||
|
7
|
7
78961-SG0-A81
Protector a
|
78961-SG0-A81 |
— | ||
|
8
|
8
78962-SG0-A81
Protector b
|
78962-SG0-A81 |
— | ||
|
9
|
9
78963-SG0-A81
Protector c
|
78963-SG0-A81 |
— | ||
|
10
|
10
78964-SG0-A81
Protector d
|
78964-SG0-A81 |
— | ||
|
11
|
11
78965-SG0-A81
Protector e
|
78965-SG0-A81 |
— | ||
|
12
|
12
90113-SA7-003
Clamp
|
90113-SA7-003 |
— | ||
|
13
|
13
90134-SG0-A81 BoltTORX, 6X16 |
90134-SG0-A81 |
US $2.24 |
||
|
14
|
14
90135-SG0-A80 Bolt-washer8X20 |
90135-SG0-A80 |
US $2.59 |
||
|
15
|
15
90137-SG0-A81 BoltTORX EARTH, 6X16 |
90137-SG0-A81 |
US $2.24 |
||
|
16
|
16
91547-SG0-A81
Clip
|
91547-SG0-A81 |
— | ||
|
17
|
17
91548-SD4-A81
Clip
|
91548-SD4-A81 |
— |
