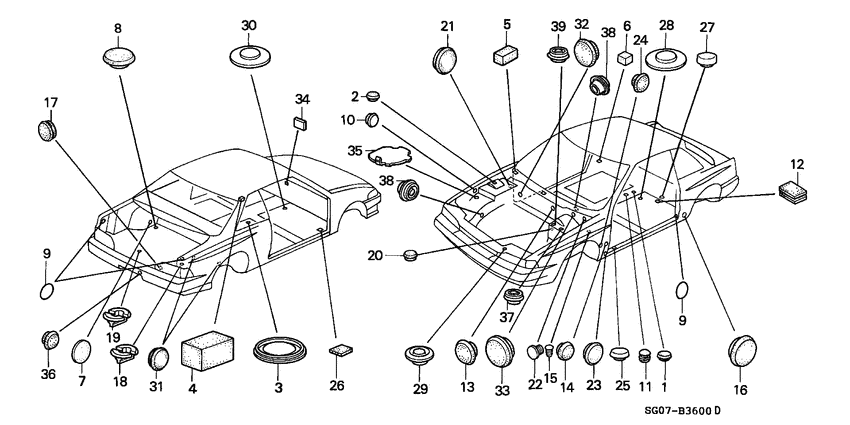

Grommet Diagram Honda LEGEND
- Year
- 1988
- Model code
- LEGEND COUPE
- Sales region
- General
- Engine
- C27A
- transmission
- 5MT
- Number of doors
- 2
- grade
- V6 2.7I
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61109-623-670
Grommet
|
61109-623-670 |
— | ||
|
2
|
2
70226-611-000
Plug
|
70226-611-000 |
— | ||
|
3
|
3
72206-SA5-000 CapFLOOR HOLE, 53MM 0C000296 - |
72206-SA5-000 |
US $2.80 |
||
|
4
|
4
74532-SD4-000
Separator
|
74532-SD4-000 |
— | ||
|
5
|
5
74533-SG0-000
Separator
|
74533-SG0-000 |
— | ||
|
6
|
6
74534-SG0-000
Separator
|
74534-SG0-000 |
— | ||
|
7
|
7
74552-SD4-000
Seal
00000000 - 0C000295 |
74552-SD4-000 |
— | ||
|
8
|
8
82871-671-000 GrommetDRAIN HOLE, 25MM |
82871-671-000 |
from US $2.03 |
||
|
14
|
14
90852-SA5-000 PlugHOLE, 10MM |
90852-SA5-000 |
US $2.17 |
||
|
15
|
15
90852-671-003 PlugHOLE |
90852-671-003 |
US $1.68 |
||
|
16
|
16
90856-SA0-000 PlugCOATING HOLE, 25MM |
90856-SA0-000 |
US $2.87 |
||
|
18
|
18
90871-SG0-010
Valve
|
90871-SG0-010 |
— | ||
|
19
|
19
90872-SA5-000
Valve
|
90872-SA5-000 |
— | ||
|
20
|
20
91451-688-000
Grommet
|
91451-688-000 |
— | ||
|
21
|
21
91601-SG0-A00
Plug
|
91601-SG0-A00 |
— | ||
|
22
|
22
91602-SD4-000
Grommet
|
91602-SD4-000 |
— | ||
|
23
|
23
91606-SD4-003
Rubber
|
91606-SD4-003 |
— | ||
|
25
|
25
91606-SD4-003
Rubber
|
91606-SD4-003 |
— | ||
|
26
|
26
91606-SE0-000 Seal20X20 |
91606-SE0-000 |
US $1.12 |
||
|
27
|
27
91607-SD4-000
Rubber
|
91607-SD4-000 |
— | ||
|
28
|
28
91611-SG0-003 PlugFLOOR HOLE, 25MM |
91611-SG0-003 |
US $4.06 |
||
|
29
|
29
91613-SA5-000 Grommet bCONTROL WIRE |
91613-SA5-000 |
US $2.53 |
||
|
30
|
30
91613-SG0-003 PlugFLOOR HOLE, 50MM |
91613-SG0-003 |
US $6.58 |
||
|
31
|
31
91614-SA5-000 GrommetHEATER LEVER HOLE (20MM) |
91614-SA5-000 |
US $3.01 |
||
|
33
|
33
91617-SB6-000 GrommetWASHER HOSE, 32MM |
91617-SB6-000 |
from US $4.16 |
