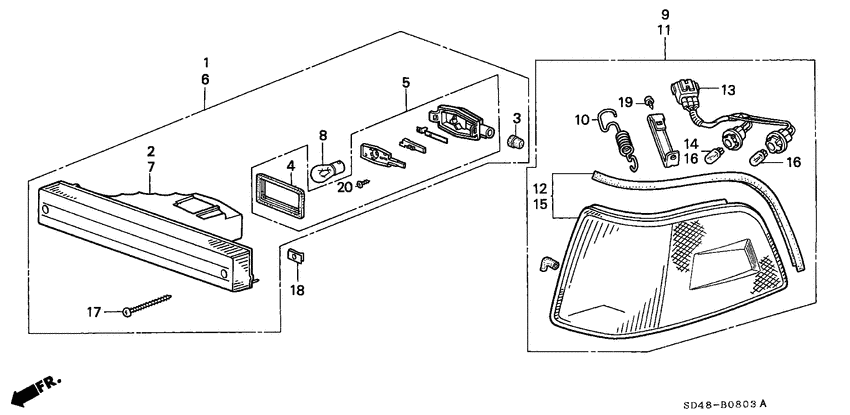

Front combination light (2) Diagram Honda LEGEND
- Year
- 1990
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33300-SD4-G01
Light assy
|
33300-SD4-G01 |
— | ||
|
2
|
2
33302-SD4-013
Lens
|
33302-SD4-013 |
— | ||
|
3
|
3
33305-SE3-J01
Tube
|
33305-SE3-J01 |
— | ||
|
4
|
4
33307-SD4-013
Packing
|
33307-SD4-013 |
— | ||
|
5
|
5
33308-SG0-A01
Cover
|
33308-SG0-A01 |
— | ||
|
6
|
6
33350-SD4-G01
Light assy
|
33350-SD4-G01 |
— | ||
|
7
|
7
33352-SD4-013
Lens
|
33352-SD4-013 |
— | ||
|
8
|
8
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
9
|
9
33600-SD4-P01
Light assy
|
33600-SD4-P01 |
— | ||
|
10
|
10
33603-SD4-003
Holder
|
33603-SD4-003 |
— | ||
|
11
|
11
33650-SD4-P01
Light assy
|
33650-SD4-P01 |
— | ||
|
12
|
12
34301-SD4-P01
Lens comp
|
34301-SD4-P01 |
— | ||
|
13
|
13
34302-SD4-961
Cord comp
|
34302-SD4-961 |
— | ||
|
15
|
15
34351-SD4-P01
Lens comp
|
34351-SD4-P01 |
— | ||
|
16
|
16
34351-657-921 Bulb12V/5W) (STANLEY |
34351-657-921 |
from US $1.63 |
||
|
17
|
17
90140-SD4-013
Screw
|
90140-SD4-013 |
— | ||
|
18
|
18
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
from US $2.22 |
||
|
19
|
19
93901-22310 ScrewTAPPING, 3X12 |
93901-22310 |
from US $0.37 |
||
|
20
|
20
93901-34220 ScrewTAPPING, 4X10 |
93901-34220 |
from US $0.37 |
