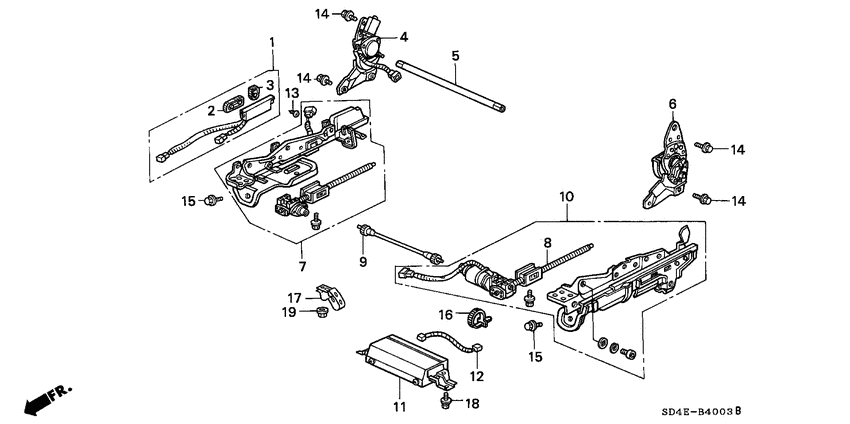

Slide adjuster (PASSENGER SIDE; LH) Diagram Honda LEGEND
- Year
- 1990
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 2.7I
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35950-SD4-A31ZD
Switch assy
|
35950-SD4-A31ZD |
— | ||
|
1
|
1
35950-SD4-A31ZF
Switch assy
|
35950-SD4-A31ZF |
— | ||
|
1
|
1
35950-SD4-A31ZG
Switch assy
|
35950-SD4-A31ZG |
— | ||
|
2
|
2
35951-SD4-A11ZD
Knob a
|
35951-SD4-A11ZD |
— | ||
|
2
|
2
35951-SD4-A11ZA
Knob a
|
35951-SD4-A11ZA |
— | ||
|
2
|
2
35951-SD4-A11ZB
Knob a
|
35951-SD4-A11ZB |
— | ||
|
3
|
3
35952-SD4-A11ZA
Knob b
|
35952-SD4-A11ZA |
— | ||
|
3
|
3
35952-SD4-A11ZB
Knob b
|
35952-SD4-A11ZB |
— | ||
|
3
|
3
35952-SD4-A11ZD
Knob b
|
35952-SD4-A11ZD |
— | ||
|
4
|
4
81230-SD4-N32
Adjuster
|
81230-SD4-N32 |
— | ||
|
5
|
5
81231-SG0-J02
Rod
|
81231-SG0-J02 |
— | ||
|
6
|
6
81240-SD4-N31
Adjuster
|
81240-SD4-N31 |
— | ||
|
7
|
7
81260-SD4-A11
Adjuster
|
81260-SD4-A11 |
— | ||
|
8
|
8
81264-SD4-J42
Motor unit
|
81264-SD4-J42 |
— | ||
|
9
|
9
81266-SD4-A11
Cable
|
81266-SD4-A11 |
— | ||
|
10
|
10
81270-SD4-A12
Adjuster
|
81270-SD4-A12 |
— | ||
|
11
|
11
81628-SD4-A31
Box assy
|
81628-SD4-A31 |
— | ||
|
12
|
12
81629-SD4-A11
Harness
|
81629-SD4-A11 |
— | ||
|
13
|
13
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
13
|
13
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
14
|
14
90107-SD4-J00
Bolt-washer
|
90107-SD4-J00 |
— | ||
|
15
|
15
90123-SD4-J01
Bolt-washer
|
90123-SD4-J01 |
— | ||
|
16
|
16
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
17
|
17
91509-SD4-000
Clip
|
91509-SD4-000 |
— | ||
|
18
|
18
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
18
|
18
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
19
|
19
94071-05080 Nut-washer5MM |
94071-05080 |
from US $0.47 |
||
