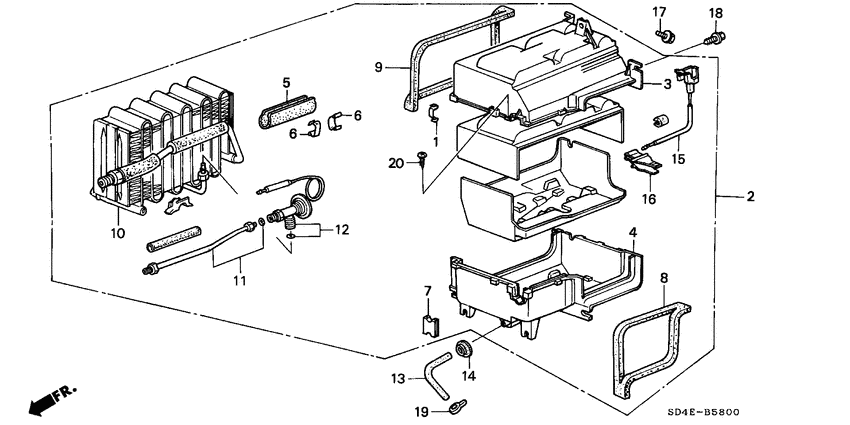

Air conditioner (UNIT; RH) Diagram Honda LEGEND
- Year
- 1989
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 5MT
- Number of doors
- 4
- grade
- V6 2.7I
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
2
|
2
80200-SD4-013
Cooling unit
|
80200-SD4-013 |
— | ||
|
3
|
3
80201-SD4-003
Case
|
80201-SD4-003 |
— | ||
|
4
|
4
80202-SD4-013
Case
|
80202-SD4-013 |
— | ||
|
5
|
5
80205-SD4-003
Insulator
|
80205-SD4-003 |
— | ||
|
6
|
6
80206-SD4-003 Holder |
80206-SD4-003 |
US $5.88 |
||
|
7
|
7
80207-SD4-003
Holder
|
80207-SD4-003 |
— | ||
|
8
|
8
80208-SD4-003
Seal a
|
80208-SD4-003 |
— | ||
|
9
|
9
80209-SD4-003
Seal b
|
80209-SD4-003 |
— | ||
|
10
|
10
80210-SD4-013
Evaporator assy.
|
80210-SD4-013 |
— | ||
|
11
|
11
80216-SD4-003
Tube
|
80216-SD4-003 |
— | ||
|
12
|
12
80220-SD4-003
Valve
|
80220-SD4-003 |
— | ||
|
13
|
13
80335-SD4-003
Hose
|
80335-SD4-003 |
— | ||
|
14
|
14
80382-SD4-000 GrommetDRAIN HOSE |
80382-SD4-000 |
US $4.34 |
||
|
15
|
15
80435-SD4-003
Thermistor
|
80435-SD4-003 |
— | ||
|
16
|
16
80565-SE0-941
Clip
|
80565-SE0-941 |
— | ||
|
17
|
17
90137-SD4-000
Bolt-washer
|
90137-SD4-000 |
— | ||
|
18
|
18
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
19
|
19
91549-SE0-003 HolderDRAIN HOSE |
91549-SE0-003 |
US $1.89 |
||
|
20
|
20
93903-34380 ScrewTAPPING, 4X12 |
93903-34380 |
from US $0.41 |
