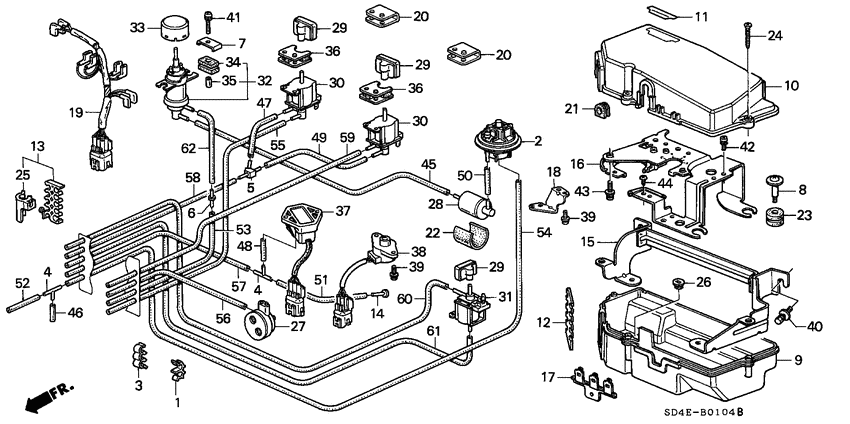

Control box (1) Diagram Honda LEGEND
- Year
- 1989
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 5MT
- Number of doors
- 4
- grade
- V6 2.7I
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
2
|
2
17290-PH7-601
Valve assy.
|
17290-PH7-601 |
— | ||
|
3
|
3
17361-PC6-000 ClampTUBE, 7.5X3 |
17361-PC6-000 |
US $1.68 |
||
|
4
|
4
36010-PA6-004 JointTHREE WAY |
36010-PA6-004 |
from US $6.51 |
||
|
5
|
5
36010-PE0-004 JointTHREE WAY |
36010-PE0-004 |
US $6.30 |
||
|
7
|
7
36017-PG7-004
Washer
|
36017-PG7-004 |
— | ||
|
8
|
8
36017-PM3-004
Bolt
|
36017-PM3-004 |
— | ||
|
9
|
9
36019-PH7-014
Cover
|
36019-PH7-014 |
— | ||
|
10
|
10
36020-PH7-004
Cover
|
36020-PH7-004 |
— | ||
|
11
|
11
36022-PL2-601
Label
|
36022-PL2-601 |
— | ||
|
12
|
12
36024-PL2-601
Holder
|
36024-PL2-601 |
— | ||
|
13
|
13
36032-PL2-004 Clamp assyTUBE |
36032-PL2-004 |
US $7.42 |
||
|
14
|
14
36034-PD1-000 PlugSEALING |
36034-PD1-000 |
US $3.88 |
||
| replacement | |||||
|
14
|
14
36034-PM6-901 PlugSEALING |
36034-PM6-901 |
from US $1.93 |
||
|
15
|
15
36034-PL2-004
Stay comp
|
36034-PL2-004 |
— | ||
|
16
|
16
36035-PL2-004 Base |
36035-PL2-004 |
US $18.30 |
||
|
17
|
17
36039-PH7-014
Stay
|
36039-PH7-014 |
— | ||
|
19
|
19
36041-PL2-601
Cord assy
|
36041-PL2-601 |
— | ||
|
21
|
21
36043-PH7-004
Grommet
|
36043-PH7-004 |
— | ||
|
22
|
22
36044-PH7-004
Seal
|
36044-PH7-004 |
— | ||
|
23
|
23
36053-PM6-A01
Rubber
|
36053-PM6-A01 |
— | ||
|
24
|
24
36057-PH7-004
Screw
|
36057-PH7-004 |
— | ||
|
25
|
25
36062-PH7-004
Clamp b
|
36062-PH7-004 |
— | ||
|
26
|
26
36093-PG6-004
Cap
|
36093-PG6-004 |
— | ||
|
27
|
27
36100-PG7-661
Filter assy
|
36100-PG7-661 |
— | ||
|
28
|
28
36134-PH7-004
Chamber comp
|
36134-PH7-004 |
— | ||
|
29
|
29
36138-PE0-004
Filter assy
|
36138-PE0-004 |
— | ||
|
30
|
30
36161-PH2-004
Valve assy.
|
36161-PH2-004 |
— | ||
|
31
|
31
36166-PE7-662
Valve assy.
|
36166-PE7-662 |
— | ||
|
32
|
32
36190-PL2-005
Valve assy. b
|
36190-PL2-005 |
— | ||
|
33
|
33
36194-PD2-661 Filter assyAIR |
36194-PD2-661 |
US $12.93 |
||
|
34
|
34
36195-PG7-005
Rubber
|
36195-PG7-005 |
— | ||
|
35
|
35
36199-PG7-005
Collar
|
36199-PG7-005 |
— | ||
|
36
|
36
36228-PE1-711
Rubber
|
36228-PE1-711 |
— | ||
|
37
|
37
37830-PL2-003 Sensor assyMAP |
37830-PL2-003 |
US $308.48 |
||
|
38
|
38
37860-PL2-013
Adjuster
|
37860-PL2-013 |
— | ||
|
39
|
39
90041-PH2-004 Screw-washer5X8 |
90041-PH2-004 |
US $1.96 |
||
|
40
|
40
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
41
|
41
93892-040-201-8
Screw-washer
|
93892-040-201-8 |
— | ||
| replacement | |||||
|
41
|
41
93892-040-200-8 Screw-washer, 4X204X20 |
93892-040-200-8 |
US $0.44 |
||
|
42
|
42
93893-040-101-8 Screw-washer4X10 |
93893-040-101-8 |
from US $0.52 |
||
| replacement | |||||
|
42
|
42
93893-040-100-8 Screw-washer4X10 |
93893-040-100-8 |
from US $0.52 |
||
|
43
|
43
93893-050-121-8 Screw-washer5X12 |
93893-050-121-8 |
from US $0.52 |
||
| replacement | |||||
|
43
|
43
93893-050-120-8 Screw-washer5X12 |
93893-050-120-8 |
from US $0.52 |
||
|
44
|
44
93903-34120 ScrewTAPPING, 4X8 |
93903-34120 |
from US $0.37 |
||
|
45
|
45
95005-350-301-0 Tube3.5X30(95005-35001-10M) |
95005-350-301-0 |
US $0.89 |
||
|
46
|
46
95005-350-301-5 Tube3.5X30 (95005-35001-10M) |
95005-350-301-5 |
US $0.89 |
||
|
47
|
47
95005-350-351-0 Tube3.5X35(95005-35001-10M) |
95005-350-351-0 |
US $0.89 |
||
|
48
|
48
95005-350-401-0
Tube
|
95005-350-401-0 |
— | ||
|
49
|
49
95005-350-601-0 Tube3.5X60(95005-35001-10M) |
95005-350-601-0 |
US $1.18 |
||
|
50
|
50
95005-350-751-0 Tube3.5X75 (95005-35001-10M) |
95005-350-751-0 |
US $1.18 |
||
|
51
|
51
95005-351-001-0 Tube3.5X100 (95005-35001-10M) |
95005-351-001-0 |
US $1.18 |
||
| replacement | |||||
|
51
|
51
95005-351-0010S Tube 35x100 |
95005-351-0010S |
US $1.18 |
||
|
52
|
52
95005-351-501-5 Tube3.5X150 (95005-35001-10M) |
95005-351-501-5 |
US $1.55 |
||
|
54
|
54
95005-352-801-5 Tube3.5X280 (95005-35001-10M) |
95005-352-801-5 |
US $3.26 |
||
|
55
|
55
95005-352-901-C Tube3.5X290 (95005-35001-10M) |
95005-352-901-C |
US $3.26 |
||
|
56
|
56
95005-352-951-A Tube3.5X295 (95005-35001-10M) |
95005-352-951-A |
US $3.26 |
||
|
57
|
57
95005-353-001-4 Tube3.5X300 (95005-35001-10M) |
95005-353-001-4 |
US $3.26 |
||
|
58
|
58
95005-353-101-2 Tube3.5X310 (95005-35001-10M) |
95005-353-101-2 |
US $3.85 |
||
|
59
|
59
95005-353-701-8 Tube3.5X370 (95005-35001-10M) |
95005-353-701-8 |
US $4.14 |
||
|
60
|
60
95005-353-851-1 Tube3.5X385 (95005-35001-10M) |
95005-353-851-1 |
US $4.14 |
||
|
61
|
61
95005-354-201-3 Tube3.5X420 (95005-35001-10M) |
95005-354-201-3 |
US $4.74 |
||
|
62
|
62
95005-354-301-8 Tube3.5X430 (95005-35001-10M) |
95005-354-301-8 |
US $4.74 |
||
