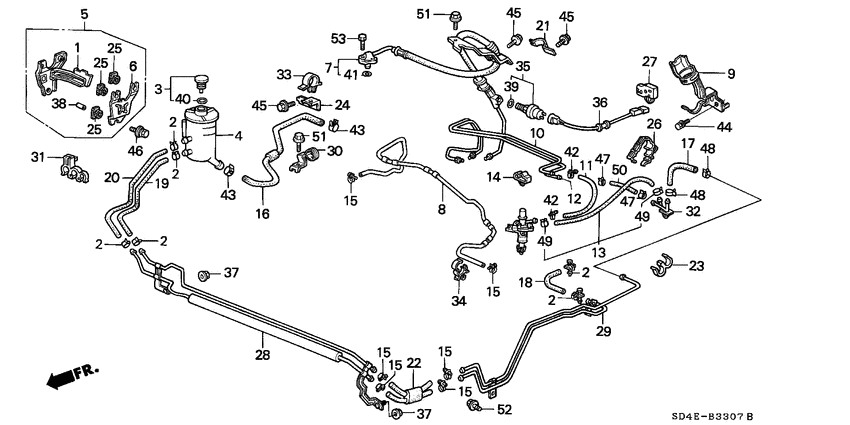

P.s. line (RH) Diagram Honda LEGEND
- Year
- 1989
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 5MT
- Number of doors
- 4
- grade
- V6 2.7I
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19105-PH7-000
Bracket comp.
|
19105-PH7-000 |
— | ||
|
2
|
2
46217-579-000 ClipTUBE |
46217-579-000 |
US $3.78 |
||
|
3
|
3
53697-SD4-951
Cap
|
53697-SD4-951 |
— | ||
|
4
|
4
53701-SD4-953
Tank comp.
|
53701-SD4-953 |
— | ||
|
5
|
5
53710-SD4-952
Bracket assy
|
53710-SD4-952 |
— | ||
|
6
|
6
53711-SD4-950
Bracket
|
53711-SD4-950 |
— | ||
|
7
|
7
53713-SD4-J61
Hose comp.
|
53713-SD4-J61 |
— | ||
|
8
|
8
53720-SD4-J63 HoseRETURN |
53720-SD4-J63 |
US $34.18 |
||
|
9
|
9
53721-SD4-J61
Stay
|
53721-SD4-J61 |
— | ||
|
10
|
10
53724-SD4-J62
Pipe comp
|
53724-SD4-J62 |
— | ||
|
11
|
11
53725-SE0-951
Hose
|
53725-SE0-951 |
— | ||
|
12
|
12
53726-SD4-J62
Pipe comp
|
53726-SD4-J62 |
— | ||
|
13
|
13
53727-SD4-950
Tube
|
53727-SD4-950 |
— | ||
|
14
|
14
53728-SD4-951
Clip
|
53728-SD4-951 |
— | ||
|
15
|
15
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.46 |
||
|
16
|
16
53731-SD4-954
Tube
|
53731-SD4-954 |
— | ||
|
17
|
17
53732-SD4-954
Hose
|
53732-SD4-954 |
— | ||
|
18
|
18
53733-SD4-953
Hose
|
53733-SD4-953 |
— | ||
|
19
|
19
53734-SG9-E50
Tube
|
53734-SG9-E50 |
— | ||
|
20
|
20
53735-SD4-950
Tube
|
53735-SD4-950 |
— | ||
|
21
|
21
53736-SD4-953
Holder b
|
53736-SD4-953 |
— | ||
|
22
|
22
53737-SD4-951
Hose comp.
00000000 - 0C103979 |
53737-SD4-951 |
— | ||
|
23
|
23
53740-SE0-953 ClipSENSOR HOSE |
53740-SE0-953 |
from US $1.63 |
||
|
24
|
24
53746-SD4-953
Stay a
|
53746-SD4-953 |
— | ||
|
25
|
25
53748-671-000 RubberMOUNTING |
53748-671-000 |
US $2.73 |
||
|
26
|
26
53752-SD4-962
Clip
|
53752-SD4-962 |
— | ||
|
28
|
28
53765-SG9-E52 CoolerPOWER STEERING OIL |
53765-SG9-E52 |
US $154.88 |
||
|
29
|
29
53766-SD4-953 Pipe compRETURN COMBINATION |
53766-SD4-953 |
US $130.56 |
||
|
30
|
30
53773-SD4-953
Clamp
|
53773-SD4-953 |
— | ||
|
31
|
31
53776-SD4-951
Clip A
|
53776-SD4-951 |
— | ||
|
32
|
32
53777-SD4-953 ConnectorTHREE WAY |
53777-SD4-953 |
US $9.10 |
||
|
33
|
33
53778-SD4-952
Clip b
|
53778-SD4-952 |
— | ||
|
34
|
34
53781-SE0-952 ClipRETURN HOSE |
53781-SE0-952 |
from US $2.37 |
||
|
35
|
35
56490-PH6-003
Switch assy
|
56490-PH6-003 |
— | ||
|
36
|
36
56492-PH7-010
Cord comp
|
56492-PH7-010 |
— | ||
|
37
|
37
90370-SD4-950 NutFLANGE, 6MM |
90370-SD4-950 |
US $0.60 |
||
| replacement | |||||
|
37
|
37
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
38
|
38
90854-671-000
Collar
|
90854-671-000 |
— | ||
|
39
|
39
91304-PA6-003 O-ring7.8X1.9 |
91304-PA6-003 |
US $1.48 |
||
|
40
|
40
91314-PE0-000
O-ring
|
91314-PE0-000 |
— | ||
|
41
|
41
91370-SB3-950 O-ring8.8X1.9 |
91370-SB3-950 |
from US $1.89 |
||
|
42
|
42
91410-SA1-950 ClipSENSOR HOSE |
91410-SA1-950 |
US $3.43 |
||
|
43
|
43
91462-SA5-950 Clamp d19MM |
91462-SA5-950 |
from US $2.17 |
||
|
44
|
44
93401-060-160-8 Bolt-washer6X16 |
93401-060-160-8 |
from US $0.58 |
||
|
45
|
45
93492-060-160-8 Bolt-washer6X16 |
93492-060-160-8 |
from US $0.52 |
||
| replacement | |||||
|
45
|
45
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
46
|
46
93495-060-250-8 Bolt-washer6X25 |
93495-060-250-8 |
US $0.74 |
||
|
47
|
47
95002-410-000-4 ClampTUBE (D10) |
95002-410-000-4 |
from US $0.74 |
||
|
48
|
48
95002-412-000-4 ClampTUBE (D12) |
95002-412-000-4 |
from US $0.74 |
||
|
49
|
49
95002-412-000-8 ClampTUBE (D12) |
95002-412-000-8 |
from US $0.74 |
||
|
50
|
50
95005-550-702-0 Tube5.3X70 (95005-55001-20M) 00000000 - 0C103979 |
95005-550-702-0 |
US $1.18 |
||
|
50
|
50
95005-550-752-0 Tube5.3X75 (95005-55001-20M) 0C103980 - |
95005-550-752-0 |
US $1.18 |
||
|
51
|
51
95700-060-120-8
Bolt
|
95700-060-120-8 |
— | ||
| replacement | |||||
|
51
|
51
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
52
|
52
95700-060-160-8 BoltFLANGE, 6X16 |
95700-060-160-8 |
US $1.70 |
||
| replacement | |||||
|
52
|
52
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
53
|
53
95700-060-300-8 BoltFLANGE, 6X30 |
95700-060-300-8 |
from US $0.59 |
||
| replacement | |||||
|
53
|
53
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
