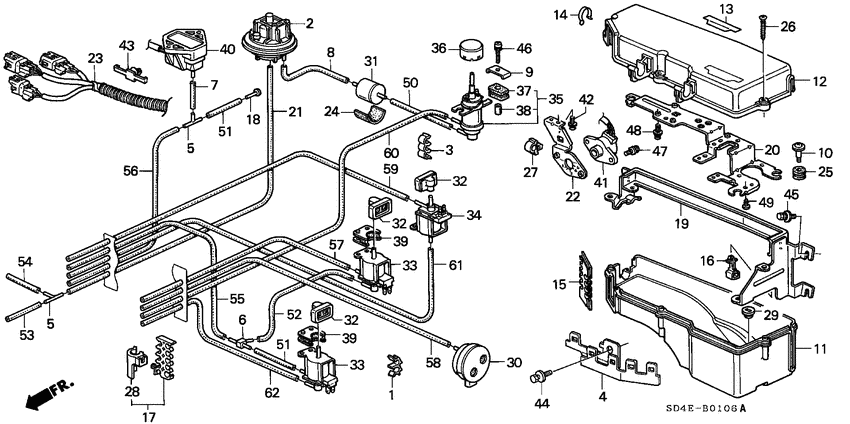

Control box (3) Diagram Honda LEGEND
- Year
- 1989
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 2.7I
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
2
|
2
17290-PH7-752
Valve assy.
|
17290-PH7-752 |
— | ||
|
3
|
3
17361-PC6-000 ClampTUBE, 7.5X3 |
17361-PC6-000 |
US $1.68 |
||
|
4
|
4
32134-PH7-662
Stay
|
32134-PH7-662 |
— | ||
|
5
|
5
36010-PA6-004 JointTHREE WAY |
36010-PA6-004 |
from US $6.51 |
||
|
6
|
6
36010-PE0-004 JointTHREE WAY |
36010-PE0-004 |
US $6.30 |
||
|
7
|
7
36013-PE0-004
Holder
|
36013-PE0-004 |
— | ||
|
8
|
8
36013-PG7-661 HolderSOLENOID, 3.5MM |
36013-PG7-661 |
US $6.16 |
||
|
9
|
9
36017-PG7-004
Washer
|
36017-PG7-004 |
— | ||
|
10
|
10
36017-PM3-004
Bolt
|
36017-PM3-004 |
— | ||
|
11
|
11
36019-PH7-662
Cover
|
36019-PH7-662 |
— | ||
|
12
|
12
36020-PH7-661
Cover
|
36020-PH7-661 |
— | ||
|
13
|
13
36022-PL2-751
Label
|
36022-PL2-751 |
— | ||
|
14
|
14
36023-PH7-661
Clamp
|
36023-PH7-661 |
— | ||
|
15
|
15
36024-PL2-751
Holder
|
36024-PL2-751 |
— | ||
|
16
|
16
36029-PM5-A01
Clamp
|
36029-PM5-A01 |
— | ||
|
17
|
17
36032-PL2-004 Clamp assyTUBE |
36032-PL2-004 |
US $7.42 |
||
|
18
|
18
36034-PD1-000 PlugSEALING |
36034-PD1-000 |
US $3.88 |
||
| replacement | |||||
|
18
|
18
36034-PM6-901 PlugSEALING |
36034-PM6-901 |
from US $1.93 |
||
|
19
|
19
36034-PL2-661
Stay comp
|
36034-PL2-661 |
— | ||
|
20
|
20
36035-PL2-661 Base |
36035-PL2-661 |
US $21.63 |
||
|
21
|
21
36036-PL2-661
Tube
|
36036-PL2-661 |
— | ||
|
22
|
22
36037-PL2-751
Bracket
|
36037-PL2-751 |
— | ||
|
23
|
23
36041-PL2-751
Cord assy
|
36041-PL2-751 |
— | ||
|
24
|
24
36044-PL2-661
Seal
|
36044-PL2-661 |
— | ||
|
25
|
25
36053-PM6-A01
Rubber
|
36053-PM6-A01 |
— | ||
|
26
|
26
36057-PH7-004
Screw
|
36057-PH7-004 |
— | ||
|
27
|
27
36059-PD1-004
Clamp b
|
36059-PD1-004 |
— | ||
|
28
|
28
36062-PH7-004
Clamp b
|
36062-PH7-004 |
— | ||
|
29
|
29
36093-PG6-004
Cap
|
36093-PG6-004 |
— | ||
|
30
|
30
36100-PG7-004
Filter assy
|
36100-PG7-004 |
— | ||
|
31
|
31
36134-PL2-661
Chamber comp
|
36134-PL2-661 |
— | ||
|
32
|
32
36138-PE0-004
Filter assy
|
36138-PE0-004 |
— | ||
|
33
|
33
36161-PH2-004
Valve assy.
|
36161-PH2-004 |
— | ||
|
34
|
34
36166-PE7-662
Valve assy.
|
36166-PE7-662 |
— | ||
|
35
|
35
36190-PL2-005
Valve assy. b
|
36190-PL2-005 |
— | ||
|
36
|
36
36194-PD2-661 Filter assyAIR |
36194-PD2-661 |
US $12.93 |
||
|
37
|
37
36195-PG7-005
Rubber
|
36195-PG7-005 |
— | ||
|
38
|
38
36199-PG7-005
Collar
|
36199-PG7-005 |
— | ||
|
39
|
39
36228-PE1-711
Rubber
|
36228-PE1-711 |
— | ||
|
40
|
40
37830-PL2-661 Sensor assyMAP |
37830-PL2-661 |
US $308.48 |
||
|
41
|
41
37860-PL2-662
Adjuster
|
37860-PL2-662 |
— | ||
|
42
|
42
90041-PH2-004 Screw-washer5X8 |
90041-PH2-004 |
US $1.96 |
||
|
43
|
43
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
44
|
44
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
45
|
45
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
46
|
46
93892-040-201-8
Screw-washer
|
93892-040-201-8 |
— | ||
| replacement | |||||
|
46
|
46
93892-040-200-8 Screw-washer, 4X204X20 |
93892-040-200-8 |
US $0.44 |
||
|
47
|
47
93893-040-101-8 Screw-washer4X10 |
93893-040-101-8 |
from US $0.52 |
||
| replacement | |||||
|
47
|
47
93893-040-100-8 Screw-washer4X10 |
93893-040-100-8 |
from US $0.52 |
||
|
48
|
48
93893-050-121-8 Screw-washer5X12 |
93893-050-121-8 |
from US $0.52 |
||
| replacement | |||||
|
48
|
48
93893-050-120-8 Screw-washer5X12 |
93893-050-120-8 |
from US $0.52 |
||
|
49
|
49
93903-34120 ScrewTAPPING, 4X8 |
93903-34120 |
from US $0.37 |
||
|
50
|
50
95005-350-401-0
Tube
|
95005-350-401-0 |
— | ||
|
51
|
51
95005-351-001-0 Tube3.5X100 (95005-35001-10M) |
95005-351-001-0 |
US $1.18 |
||
| replacement | |||||
|
51
|
51
95005-351-0010S Tube 35x100 |
95005-351-0010S |
US $1.18 |
||
|
52
|
52
95005-351-201-0 Tube3.5X120(95005-35001-10M) |
95005-351-201-0 |
US $1.55 |
||
|
53
|
53
95005-352-201-5 Tube3.5X220 (95005-35001-10M) |
95005-352-201-5 |
US $2.81 |
||
|
54
|
54
95005-353-301-5 Tube3.5X330 (95005-35001-10M) |
95005-353-301-5 |
US $3.85 |
||
|
55
|
55
95005-353-351-2 Tube3.5X335 (95005-35001-10M) |
95005-353-351-2 |
US $3.85 |
||
|
56
|
56
95005-353-551-4 Tube3.5X355 (95005-35001-10M) |
95005-353-551-4 |
US $4.14 |
||
|
57
|
57
95005-354-501-8 Tube3.5X450 (95005-35001-10M) |
95005-354-501-8 |
US $4.74 |
||
|
58
|
58
95005-354-551-A Tube3.5X455 (95005-35001-10M) |
95005-354-551-A |
US $5.03 |
||
|
59
|
59
95005-354-801-1 Tube3.5X480 (95005-35001-10M) |
95005-354-801-1 |
US $5.03 |
||
|
60
|
60
95005-355-051-B Tube3.5X505 (95005-35001-10M) |
95005-355-051-B |
US $5.33 |
||
|
61
|
61
95005-355-251-3 Tube3.5X525 (95005-35001-10M) |
95005-355-251-3 |
US $5.33 |
||
|
62
|
62
95005-356-851-C Tube3.5X685 (95005-35001-10M) |
95005-356-851-C |
US $7.40 |
||
