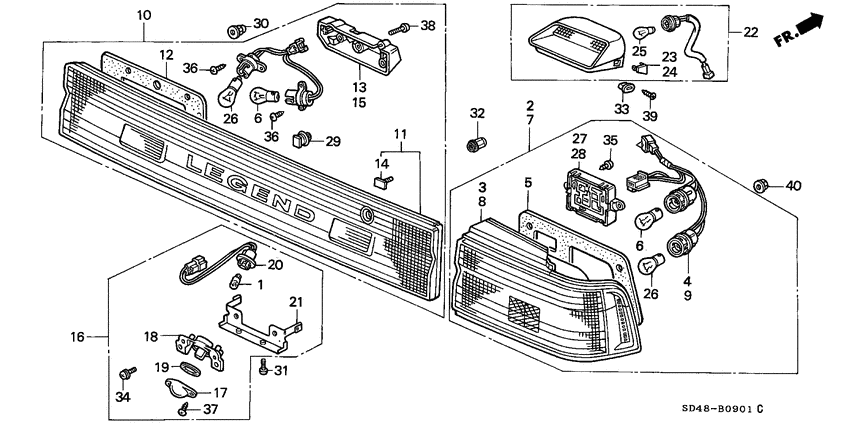

Taillight (2) Diagram Honda LEGEND
- Year
- 1989
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- XI EXCLUSIVE
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34909-505-003 Bulb12V8W |
34909-505-003 |
US $37.40 |
||
| replacement | |||||
|
1
|
1
34904-634-611 BULB (12V 5W) (ECE)(12V, 5W) ECE |
34904-634-611 |
from US $1.41 |
||
|
2
|
2
33500-SD4-964
Taillight assy.
|
33500-SD4-964 |
— | ||
|
3
|
3
33501-SD4-964
Lamp unit
|
33501-SD4-964 |
— | ||
|
4
|
4
33502-SD4-961
Cord comp
|
33502-SD4-961 |
— | ||
|
5
|
5
33503-SD4-A02
Packing
|
33503-SD4-A02 |
— | ||
|
6
|
6
33503-506-600 Bulb12V 21W) (STANLEY |
33503-506-600 |
US $9.37 |
||
| replacements | |||||
|
6
|
6
34905-KV7-671 Bulb,winker (12v |
34905-KV7-671 |
from US $3.32 |
||
|
6
|
6
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
7
|
7
33550-SD4-964
Taillight assy.
|
33550-SD4-964 |
— | ||
|
8
|
8
33551-SD4-964
Lamp unit
|
33551-SD4-964 |
— | ||
|
9
|
9
33552-SD4-961
Cord comp
|
33552-SD4-961 |
— | ||
|
10
|
10
33700-SD4-003
Garnish assy
|
33700-SD4-003 |
— | ||
|
11
|
11
33701-SD4-A01
Housing
|
33701-SD4-A01 |
— | ||
|
12
|
12
33702-SD4-A01
Gasket
|
33702-SD4-A01 |
— | ||
|
13
|
13
33703-SD4-A01
Cover comp.
|
33703-SD4-A01 |
— | ||
|
14
|
14
33720-SD4-671
Bolt
|
33720-SD4-671 |
— | ||
|
15
|
15
33753-SD4-A01
Cover comp.
|
33753-SD4-A01 |
— | ||
|
16
|
16
34100-SD4-A02
Light assy
|
34100-SD4-A02 |
— | ||
|
17
|
17
34101-SH3-A01 Lens |
34101-SH3-A01 |
US $9.92 |
||
|
18
|
18
34102-SH3-A01 Housing |
34102-SH3-A01 |
US $12.73 |
||
|
19
|
19
34103-SH3-A01 Packing |
34103-SH3-A01 |
US $3.40 |
||
|
20
|
20
34104-SD4-A02
Cord comp
|
34104-SD4-A02 |
— | ||
|
21
|
21
34105-SD4-A01
Stay
|
34105-SD4-A01 |
— | ||
|
26
|
26
34906-SA0-003 Bulb12V 27W/5W |
34906-SA0-003 |
US $3.08 |
||
|
27
|
27
37540-SE0-Q01
Sensor
|
37540-SE0-Q01 |
— | ||
|
28
|
28
37540-SE3-A01
Sensor
|
37540-SE3-A01 |
— | ||
|
29
|
29
75525-SD4-013 ClipRR. PANEL GARNISH |
75525-SD4-013 |
US $4.66 |
||
|
30
|
30
75807-671-000 NutSIDE PROTECTOR (BLACK) |
75807-671-000 |
US $3.57 |
||
|
31
|
31
90194-SD4-000
Screw
|
90194-SD4-000 |
— | ||
|
32
|
32
90301-SE0-902
Nut
|
90301-SE0-902 |
— | ||
|
34
|
34
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
35
|
35
93901-24220 ScrewTAPPING, 4X10 |
93901-24220 |
from US $0.37 |
||
|
36
|
36
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
|
37
|
37
93901-34320 ScrewTAPPING, 4X12 |
93901-34320 |
from US $0.37 |
||
|
38
|
38
93901-34520 ScrewTAPPING, 4X20 |
93901-34520 |
from US $0.37 |
||
|
40
|
40
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
