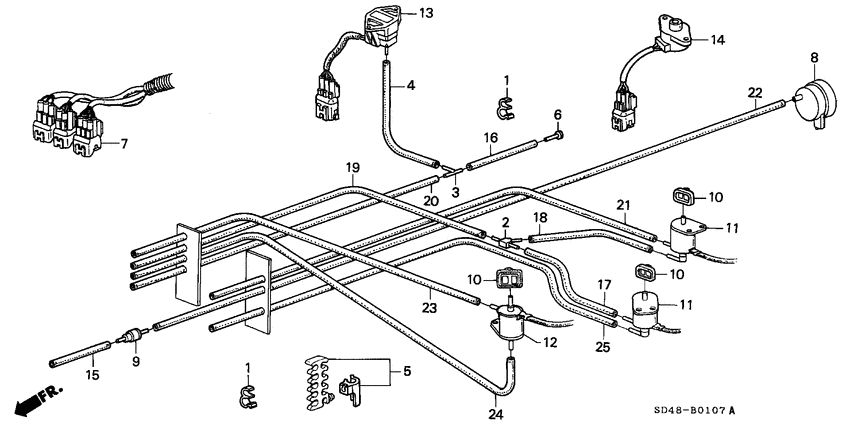

Control box tubing (2) Diagram Honda LEGEND
- Year
- 1988
- Model code
- LEGEND
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
2
|
2
36010-PA6-004 JointTHREE WAY |
36010-PA6-004 |
from US $6.51 |
||
|
3
|
3
36010-PE0-004 JointTHREE WAY |
36010-PE0-004 |
US $6.30 |
||
|
4
|
4
36013-PE0-004
Holder
|
36013-PE0-004 |
— | ||
|
5
|
5
36032-PL2-004 Clamp assyTUBE |
36032-PL2-004 |
US $7.42 |
||
|
6
|
6
36034-PM6-901 PlugSEALING |
36034-PM6-901 |
from US $1.93 |
||
|
7
|
7
36041-PL2-P01
Cord assy
|
36041-PL2-P01 |
— | ||
|
8
|
8
36100-PG7-004
Filter assy
|
36100-PG7-004 |
— | ||
|
10
|
10
36138-PE0-004
Filter assy
|
36138-PE0-004 |
— | ||
|
11
|
11
36161-PH2-004
Valve assy.
|
36161-PH2-004 |
— | ||
|
12
|
12
36166-PE7-662
Valve assy.
|
36166-PE7-662 |
— | ||
|
13
|
13
37830-PL2-662
Sensor assy
|
37830-PL2-662 |
— | ||
|
14
|
14
37860-PL2-662
Adjuster
|
37860-PL2-662 |
— | ||
|
16
|
16
95005-351-001-0 Tube3.5X100 (95005-35001-10M) |
95005-351-001-0 |
US $1.18 |
||
| replacement | |||||
|
16
|
16
95005-351-0010S Tube 35x100 |
95005-351-0010S |
US $1.18 |
||
|
17
|
17
95005-351-001-0 Tube3.5X100 (95005-35001-10M) |
95005-351-001-0 |
US $1.18 |
||
| replacement | |||||
|
17
|
17
95005-351-0010S Tube 35x100 |
95005-351-0010S |
US $1.18 |
||
|
18
|
18
95005-351-201-0 Tube3.5X120(95005-35001-10M) |
95005-351-201-0 |
US $1.55 |
||
|
19
|
19
95005-353-351-2 Tube3.5X335 (95005-35001-10M) |
95005-353-351-2 |
US $3.85 |
||
|
19
|
19
95005-353-401-2 Tube3.5X340 (95005-35001-10M) |
95005-353-401-2 |
US $3.85 |
||
|
20
|
20
95005-353-551-4 Tube3.5X355 (95005-35001-10M) |
95005-353-551-4 |
US $4.14 |
||
|
21
|
21
95005-354-501-8 Tube3.5X450 (95005-35001-10M) |
95005-354-501-8 |
US $4.74 |
||
|
22
|
22
95005-354-551-A Tube3.5X455 (95005-35001-10M) |
95005-354-551-A |
US $5.03 |
||
|
23
|
23
95005-354-801-1 Tube3.5X480 (95005-35001-10M) |
95005-354-801-1 |
US $5.03 |
||
|
24
|
24
95005-355-251-3 Tube3.5X525 (95005-35001-10M) |
95005-355-251-3 |
US $5.33 |
||
|
25
|
25
95005-356-851-C Tube3.5X685 (95005-35001-10M) |
95005-356-851-C |
US $7.40 |
||
