Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 32112-SP0-J01 Sub cord	32112-SP0-J01	—
2	2 35505-692-003 Bulb 14V 1.4W	35505-692-003	from US $2.07
6	6 66418-SA5-000 Stopper 00000000 - 0C002231	66418-SA5-000	—
6	6 66418-SP0-000 Stopper 0C002232 -	66418-SP0-000	—
7	7 66418-579-000 Stopper GLOVE BOX LID	66418-579-000	US $8.40
8	8 77291-SP0-000ZC Console comp. FR. YR147L	77291-SP0-000ZC	US $432.64
8	8 77291-SP0-000ZE Console comp. FR. NH178L	77291-SP0-000ZE	US $432.64
8	8 77291-SP0-000ZB Console comp. FR. B81L	77291-SP0-000ZB	US $432.64
8	8 77291-SP0-000ZD Console comp. FR. Y31L	77291-SP0-000ZD	US $432.64
9	9 77293-SP0-A01 Bracket a	77293-SP0-A01	—
10	10 77296-SP0-J10ZA Panel CONSOLE WOOD	77296-SP0-J10ZA	US $2,210.56
11	11 77297-SP0-J01 Tray	77297-SP0-J01	—
12	12 77299-SP0-J00ZA Garnish	77299-SP0-J00ZA	—
14	14 77711-SP0-A01 Case comp.	77711-SP0-A01	—
15	15 77712-SP0-A01 Case	77712-SP0-A01	—
16	16 77713-SP0-J00ZA Panel FR. ASHTRAY WOOD	77713-SP0-J00ZA	US $392.96
17	17 77716-SP0-A01 Cover	77716-SP0-A01	—
18	18 77721-SP0-J00ZA Panel CIGARETTE LIGHTER WOOD	77721-SP0-J00ZA	US $298.24
19	19 77722-SP0-J00 Ring	77722-SP0-J00	—
20	20 77730-SP0-J01 Holder comp	77730-SP0-J01	—
21	21 83402-SP0-Q00ZA Box	83402-SP0-Q00ZA	—
22	22 83405-SP0-Q01ZD Armrest comp.	83405-SP0-Q01ZD	—
22	22 83405-SP0-Q01ZA Armrest comp.	83405-SP0-Q01ZA	—
22	22 83405-SP0-Q01ZC Armrest comp.	83405-SP0-Q01ZC	—
22	22 83405-SP0-Q01ZB Armrest comp.	83405-SP0-Q01ZB	—
23	23 83407-SP0-J00ZA Garnish RR. CIGARETTE LIGHTER WOOD	83407-SP0-J00ZA	US $380.16
25	25 83408-SP0-010 Bracket b	83408-SP0-010	—
26	26 83409-SP0-J00 Protector	83409-SP0-J00	—
28	28 83410-SP0-000ZD Console	83410-SP0-000ZD	—
28	28 83410-SP0-000ZC Console	83410-SP0-000ZC	—
28	28 83410-SP0-000ZE Console	83410-SP0-000ZE	—
28	28 83410-SP0-000ZB Console	83410-SP0-000ZB	—
29	29 83411-SP0-000ZD Lid	83411-SP0-000ZD	—
29	29 83411-SP0-000ZC Lid	83411-SP0-000ZC	—
29	29 83411-SP0-000ZE Lid	83411-SP0-000ZE	—
29	29 83411-SP0-000ZB Lid	83411-SP0-000ZB	—
30	30 83415-SP0-J00ZA Panel assy. RR. CONSOLE WOOD	83415-SP0-J00ZA	US $1,079.04
31	31 83418-SP0-J00 Clip	83418-SP0-J00	—
32	32 83420-SD4-003 Plate	83420-SD4-003	US $7.33
35	35 83426-SP0-013 Hinge assy	83426-SP0-013	—
36	36 90144-SP0-000 Screw TAPPING, 4X16 (PO)	90144-SP0-000	US $0.98
37	37 90609-SB6-003 Clip	90609-SB6-003	—
38	38 90666-SP0-A00 Clip SNAP FITTING	90666-SP0-A00	US $1.96
39	39 90681-693-000 Grommet SCREW, 4MM	90681-693-000	US $2.52
40	40 90683-693-000 Grommet SCREW, 5MM	90683-693-000	US $2.17
41	41 91548-SH2-003 Band WIRE HARNESS(GRAY)	91548-SH2-003	US $2.66
42	42 91555-SM4-003 Clip COUPLER (RED)	91555-SM4-003	from US $2.15
43	43 91641-SM4-003 Grommet SCREW, 4MM	91641-SM4-003	US $1.95
44	44 93403-060-120-8 Bolt-washer 6X12	93403-060-120-8	from US $0.62
45	45 93891-050-120-8 Screw-washer 5X12	93891-050-120-8	from US $0.44
46	46 93903-22220 Screw TAPPING, 3X10	93903-22220	from US $0.37
47	47 93903-44480 Screw TAPPING, 4X16	93903-44480	from US $0.37
48	48 93905-22380 Screw TAPPING, 3X12	93905-22380	US $0.37
49	49 93913-14280 Screw TAPPING, 4X12 (PO)	93913-14280	from US $0.37
50	50 93913-14380 Screw TAPPING, 4X12 (PO)	93913-14380	US $0.37
51	51 93913-14480 Screw TAPPING, 4X16 (PO)	93913-14480	from US $0.37
52	52 93913-15280 Screw TAPPING, 5X12 (PO)	93913-15280	from US $0.37
53	53 39600-SW3-305 Lighter unit	39600-SW3-305	—
	replacement
53	53 39600-SW3-505 LIGHTER ASSYCIGA	39600-SW3-505	US $21.62
54	54 39628-SP0-305 Cord assy	39628-SP0-305	—
55	55 39628-SP0-306 Cord assy	39628-SP0-306	—

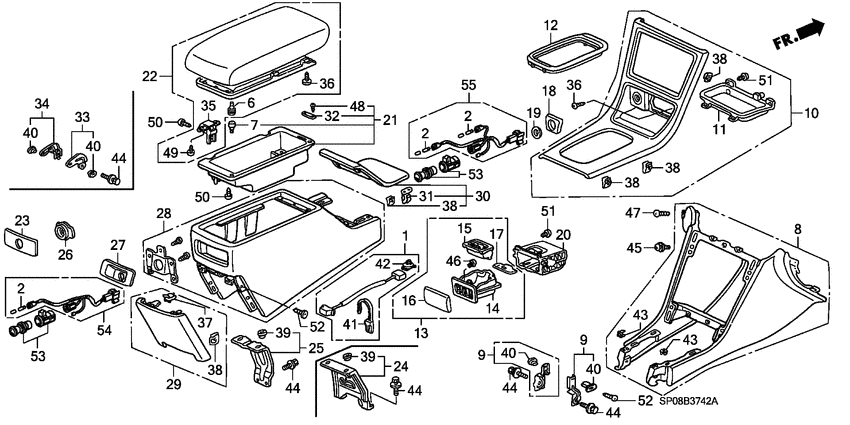

Console (3) Diagram Honda LEGEND General 7073173-550440

Console (3) Diagram Honda LEGEND General 7073173-550440
