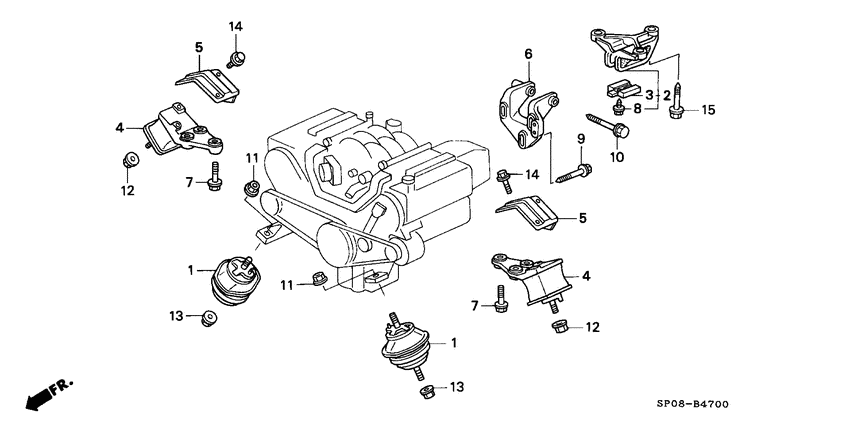

Engine mounts (1) Diagram Honda LEGEND
- Year
- 1991
- Model code
- LEGEND
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50800-SP0-003 RubberFR. ENGINE MOUNTING |
50800-SP0-003 |
US $143.36 |
||
|
2
|
2
50805-SP0-982
Stopper
|
50805-SP0-982 |
— | ||
|
3
|
3
50807-SP0-981
Mass
|
50807-SP0-981 |
— | ||
|
4
|
4
50820-SP0-A01
Mounting
0C000890 - |
50820-SP0-A01 |
— | ||
|
4
|
4
50820-SP0-A80 MountingMIDDLE (AT) 00000000 - 0C000889 |
50820-SP0-A80 |
US $162.56 |
||
|
5
|
5
50823-SP0-010
Insulator
0C000731 - |
50823-SP0-010 |
— | ||
|
5
|
5
50823-SP0-000 InsulatorMIDDLE HEAT 00000000 - 0C000730 |
50823-SP0-000 |
US $8.26 |
||
|
6
|
6
50827-SP0-981
Bracket
|
50827-SP0-981 |
— | ||
|
7
|
7
90167-SP0-000 BoltFLANGE, 10X45 |
90167-SP0-000 |
US $2.10 |
||
|
8
|
8
90174-SP0-000
Bolt
|
90174-SP0-000 |
— | ||
|
9
|
9
90181-SP0-000
Bolt
|
90181-SP0-000 |
— | ||
|
10
|
10
90196-SP0-000
Bolt
|
90196-SP0-000 |
— | ||
|
11
|
11
90364-SP0-003
Nut
|
90364-SP0-003 |
— | ||
|
12
|
12
90365-SP0-003
Nut
|
90365-SP0-003 |
— | ||
|
13
|
13
90367-SP0-003
Nut
|
90367-SP0-003 |
— | ||
|
14
|
14
95701-060-080-8 BoltFLANGE, 6X8 |
95701-060-080-8 |
from US $0.52 |
||
|
15
|
15
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
