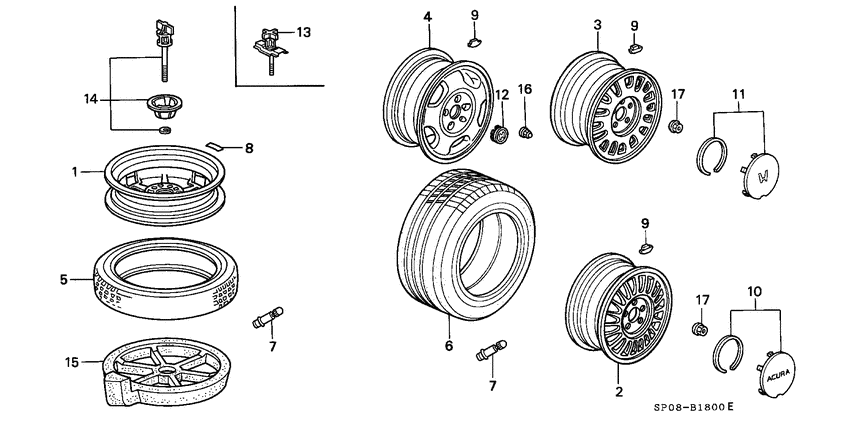

Tire/wheel disk Diagram Honda LEGEND
- Year
- 1995
- Model code
- LEGEND
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KY
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
42700-SP0-J91
Disk
|
42700-SP0-J91 |
— | ||
|
6
|
6
42751-SP0-E03
Tire
|
42751-SP0-E03 |
— | ||
|
7
|
7
42753-SE0-A02 ValveRIM (SCHRADER) |
42753-SE0-A02 |
US $20.10 |
||
| replacement | |||||
|
7
|
7
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
9
|
9
44729-SF1-003
Weight
|
44729-SF1-003 |
— | ||
|
9
|
9
44723-SF1-003
Weight
|
44723-SF1-003 |
— | ||
|
9
|
9
44730-SF1-003
Weight
|
44730-SF1-003 |
— | ||
|
9
|
9
44724-SF1-003
Weight
|
44724-SF1-003 |
— | ||
|
9
|
9
44726-SF1-003
Weight
|
44726-SF1-003 |
— | ||
|
9
|
9
44727-SF1-003
Weight
|
44727-SF1-003 |
— | ||
|
9
|
9
44721-SF1-003
Weight
|
44721-SF1-003 |
— | ||
|
9
|
9
44728-SF1-003
Weight
|
44728-SF1-003 |
— | ||
|
9
|
9
44722-SF1-003
Weight
|
44722-SF1-003 |
— | ||
|
11
|
11
44732-SP0-J42
Cap assy.
|
44732-SP0-J42 |
— | ||
| replacement | |||||
|
11
|
11
44732-SM4-A33
Cap assy.
|
44732-SM4-A33 |
— | ||
|
14
|
14
74654-SP0-G00
Bolt
|
74654-SP0-G00 |
— | ||
|
17
|
17
90381-SL5-901 NutWHEEL(FUSE RASHI) |
90381-SL5-901 |
US $3.57 |
||
