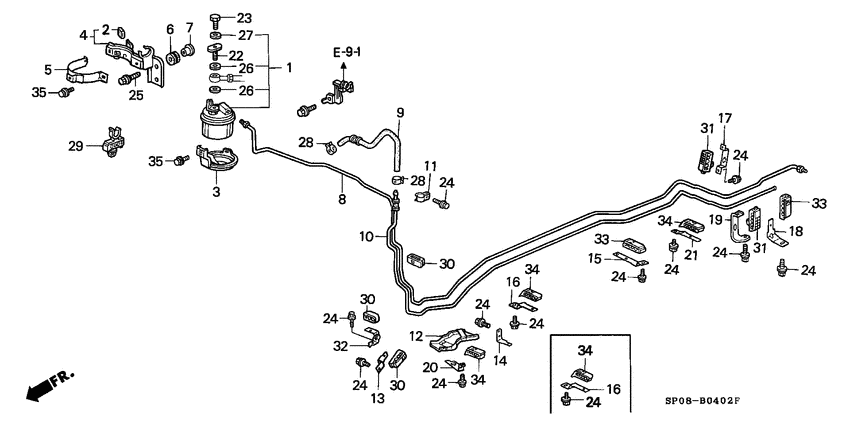

Fuel pipe (3) Diagram Honda LEGEND
- Year
- 1994
- Model code
- LEGEND
- Sales region
- General
- Engine
- C32A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-SP0-931
Strainer set
0C300968 - |
16010-SP0-931 |
— | ||
|
1
|
1
16010-SP0-930
Strainer set
00000000 - 0C300967 |
16010-SP0-930 |
— | ||
|
2
|
2
16712-SP0-000
Cushion
|
16712-SP0-000 |
— | ||
|
3
|
3
16902-SP0-A31
Cover
|
16902-SP0-A31 |
— | ||
|
4
|
4
16918-SP0-A31
Stay
|
16918-SP0-A31 |
— | ||
|
5
|
5
16919-SP0-931
Band
|
16919-SP0-931 |
— | ||
|
6
|
6
16922-SH3-930 RubberMOUNTING |
16922-SH3-930 |
US $1.95 |
||
|
7
|
7
16923-SP0-930 CollarDISTANCE |
16923-SP0-930 |
US $4.47 |
||
|
8
|
8
17700-SP0-A33
Pipe comp
|
17700-SP0-A33 |
— | ||
|
9
|
9
17723-SP0-A31
Hose
|
17723-SP0-A31 |
— | ||
|
10
|
10
17740-SP0-A31
Pipe comp
|
17740-SP0-A31 |
— | ||
|
12
|
12
17752-SP0-932
Protector
|
17752-SP0-932 |
— | ||
|
13
|
13
17761-SP0-931
Stay a
|
17761-SP0-931 |
— | ||
|
14
|
14
17762-SP0-932
Stay b
|
17762-SP0-932 |
— | ||
|
15
|
15
17763-SP0-930
Stay c
|
17763-SP0-930 |
— | ||
|
16
|
16
17764-SP0-930
Stay d
|
17764-SP0-930 |
— | ||
|
17
|
17
17765-SP0-930
Stay e
|
17765-SP0-930 |
— | ||
|
18
|
18
17766-SP0-931
Stay f
|
17766-SP0-931 |
— | ||
|
19
|
19
17767-SP0-930
Stay g
|
17767-SP0-930 |
— | ||
|
20
|
20
17768-SP0-931
Stay h
|
17768-SP0-931 |
— | ||
|
21
|
21
17769-SP0-930
Stay j
|
17769-SP0-930 |
— | ||
|
22
|
22
90008-PD6-010 BoltBANJO, 12MM |
90008-PD6-010 |
US $16.42 |
||
| replacement | |||||
|
22
|
22
90008-PP4-E02 BoltBANJO, 12MM |
90008-PP4-E02 |
from US $6.51 |
||
|
23
|
23
90009-PE2-010 BoltSEALING, 6MM |
90009-PE2-010 |
US $4.03 |
||
| replacement | |||||
|
23
|
23
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
24
|
24
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
US $0.59 |
||
|
25
|
25
90162-SP0-950
Bolt-washer
|
90162-SP0-950 |
— | ||
|
26
|
26
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
27
|
27
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
28
|
28
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
30
|
30
91595-SP0-931
Clamp b
|
91595-SP0-931 |
— | ||
|
31
|
31
91596-SM4-931
Clamp c
|
91596-SM4-931 |
— | ||
|
33
|
33
91598-SM4-931
Clamp b
|
91598-SM4-931 |
— | ||
|
34
|
34
91599-SM4-931
Clamp a
|
91599-SM4-931 |
— | ||
|
35
|
35
91599-SP0-930
Bolt-washer
|
91599-SP0-930 |
— | ||
