	Description	OEM Part #	Price
1	1 35951-SP0-A11ZE Knob a nh178l	35951-SP0-A11ZE	US $11.06
1	1 35951-SP0-A11ZF Knob a y18l	35951-SP0-A11ZF	US $11.06
2	2 35952-SP0-A11ZF Knob b y18l	35952-SP0-A11ZF	US $9.24
2	2 35952-SP0-A11ZE Knob b nh178l	35952-SP0-A11ZE	US $9.24
3	3 35955-SP0-J01ZF Switch assy	35955-SP0-J01ZF	—
3	3 35955-SP0-J01ZE Switch assy	35955-SP0-J01ZE	—
4	4 77208-SA5-003 Bush NYLON (TS TECH)	77208-SA5-003	US $2.80
5	5 77209-SB0-003 Washer	77209-SB0-003	—
6	6 77517-SA5-014 Cap SLIDE ADJUSTER	77517-SA5-014	US $4.48
7	7 81266-SP0-003 Cable	81266-SP0-003	—
8	8 81513-SP0-A41 Motor assy.	81513-SP0-A41	—
9	9 81514-SP0-A41 Motor assy. L. SLIDE	81514-SP0-A41	US $245.76
10	10 81517-SP0-A41 Box assy L. GEAR	81517-SP0-A41	US $211.20
11	11 81538-SP0-003ZA Boot 0C200409 -	81538-SP0-003ZA	—
11	11 81538-SP0-003ZB Boot 0C200409 -	81538-SP0-003ZB	—
12	12 81550-SP0-E02 Slide comp.	81550-SP0-E02	—
13	13 81637-SP0-J11ZF Garnish	81637-SP0-J11ZF	—
13	13 81637-SP0-J11ZE Garnish	81637-SP0-J11ZE	—
14	14 81670-SP0-E01 Adjuster L. INNER SLIDE	81670-SP0-E01	US $331.52
15	15 81711-SP0-J00 Cord a	81711-SP0-J00	—
16	16 90672-SA0-003 Strap CABLE, 118MM(BLACK)	90672-SA0-003	from US $3.26
17	17 91547-SF4-003 Band WIRE HARNESS (BLUE) (123.5MM)	91547-SF4-003	from US $5.03
18	18 91555-SM4-003 Clip COUPLER (RED)	91555-SM4-003	from US $2.15
19	19 91567-SE0-003 Band WIRE HARNESS(WHITE) (93.5MM)	91567-SE0-003	from US $3.08
20	20 93405-100-200-8 Bolt-washer 10X20	93405-100-200-8	US $0.81
21	21 93402-100-220-8 Bolt-washer 10X22	93402-100-220-8	US $0.81
22	22 93903-24120 Screw TAPPING, 4X8	93903-24120	from US $0.37
23	23 94070-08080 Nut-washer 8MM	94070-08080	from US $0.52
24	24 94101-08700 Washer PLAIN, 8MM	94101-08700	from US $0.37

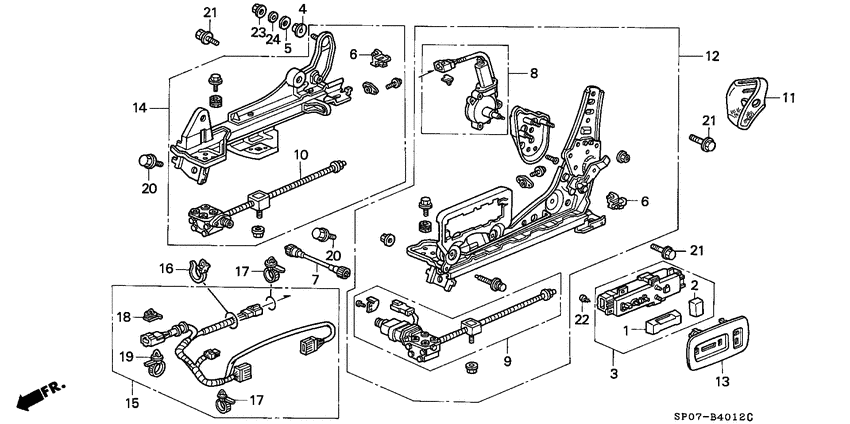

Front seat components (L.; RH) Diagram Honda LEGEND General 7056524-542682

Front seat components (L.; RH) Diagram Honda LEGEND General 7056524-542682
